Condenser Fan: Service and Repair

Air Conditioner System Components (Part 2 Of 2).:

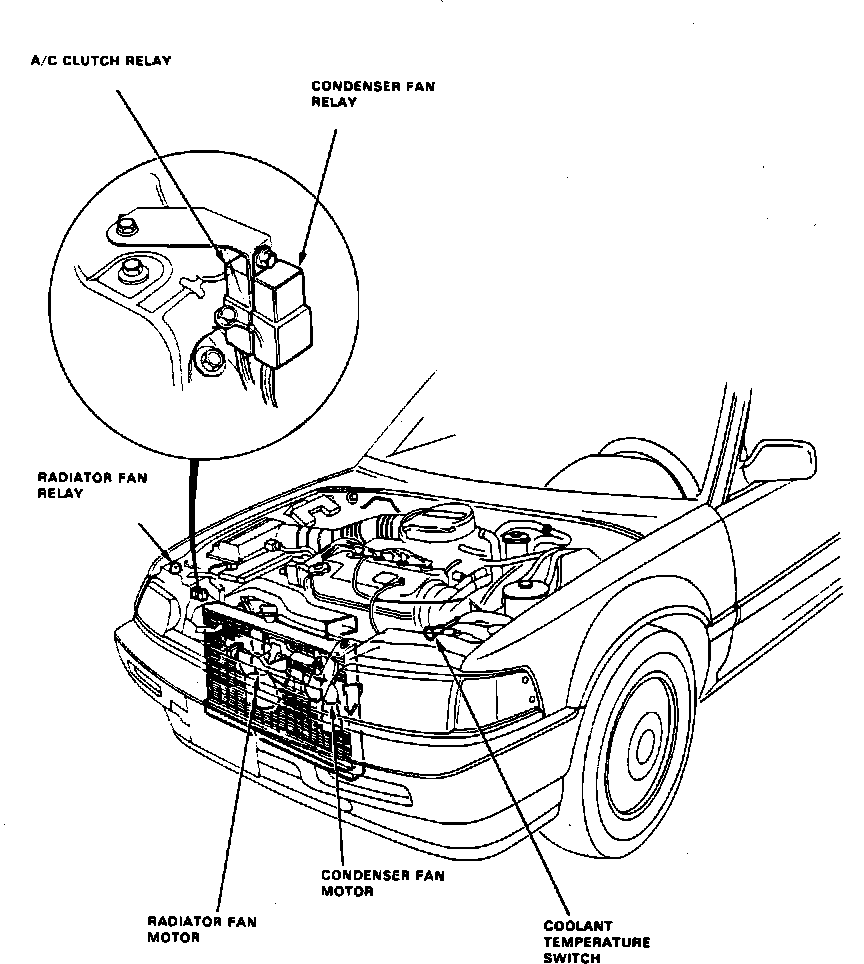

Cooling Fan Components.:

REMOVAL
1. Disconnect the battery ground cable.
2. Remove condenser fan assembly.
- Disconnect the fan motor connector and remove the 4 fixing bolts.

3. Remove shroud.

INSTALLATION
- To install, follow the removal steps in the reverse order, noting the following point. Route the fan motor harness in its previous position, and fix it securely with clip and bracket.
