Control Assembly: Service and Repair

Heater Control Panel Replacement





1. Remove the center lower panel.
2. Remove the radio.
3. Disconnect the air mix control cable from the heater unit.

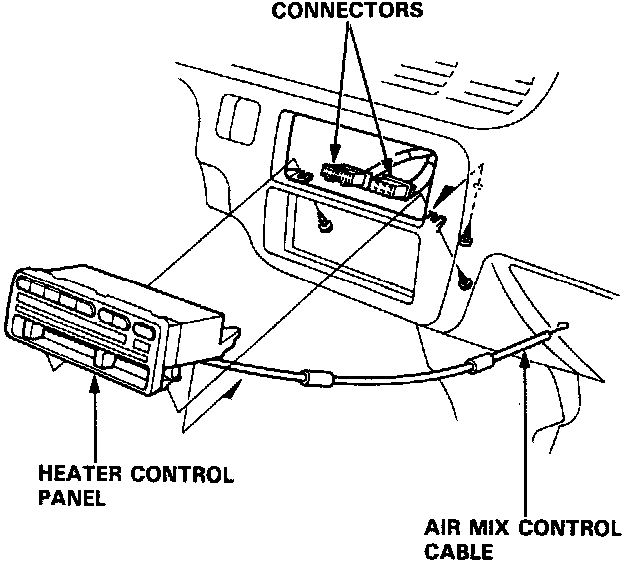

4. Remove the tapping screws (3) and pull out the heater control panel.
Disconnect the connectors and remove the heater control panel.
NOTE: The locking tabs are on the bottom of the connectors.
5. Install the removed parts in the reverse order of removal and refer to Adjustments.
