Home >> Honda >> 1991 >> CRX Si L4-1590cc 1.6L SOHC (D16A6) MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Testing and Inspection

A/C Signal: Testing and Inspection

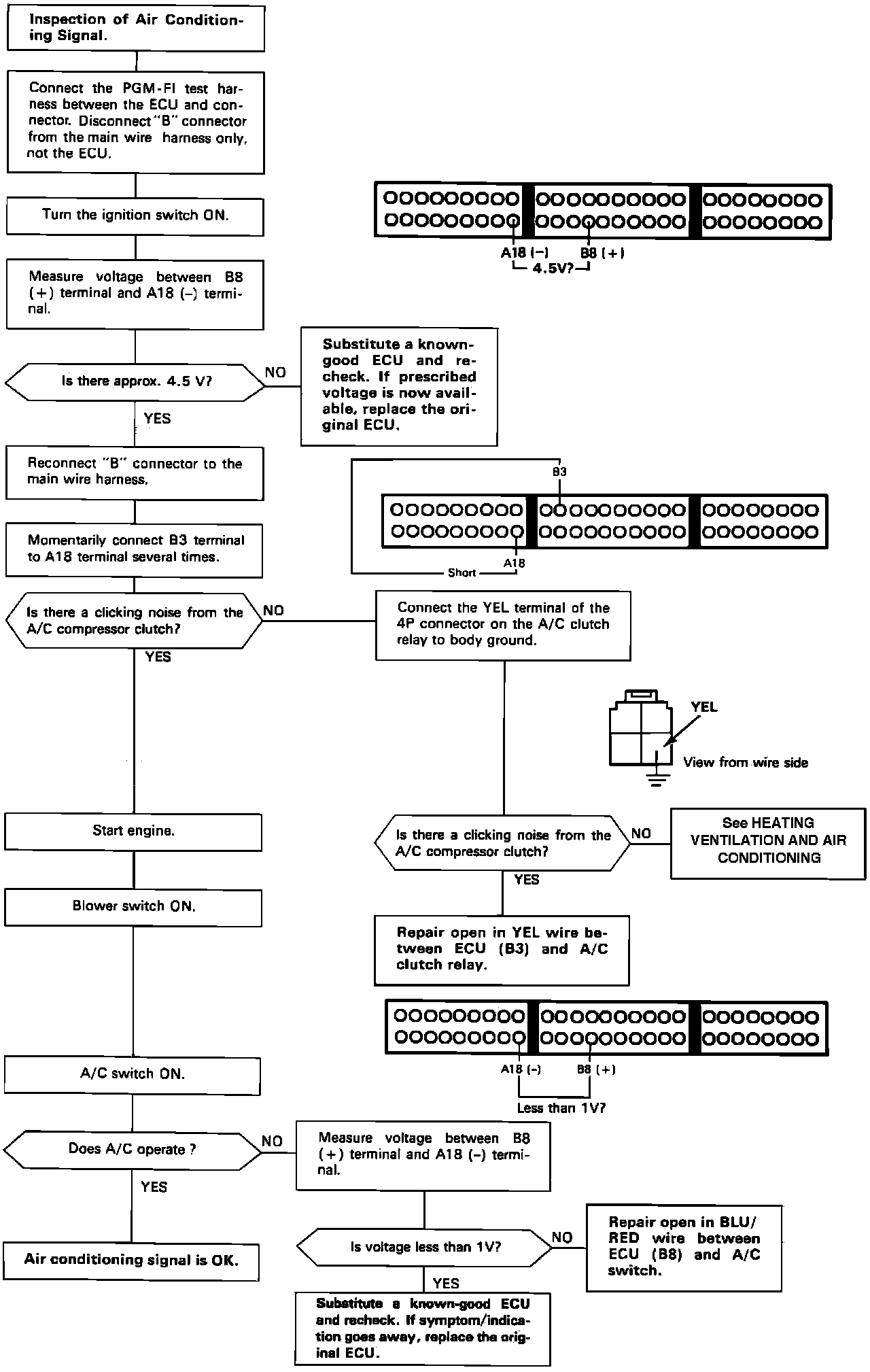

Fig. 15 Air Conditioning Signal Test:
