Hitachi Starters

Vehicles w/Manual Transmission

1. Remove and disconnect starter relay.

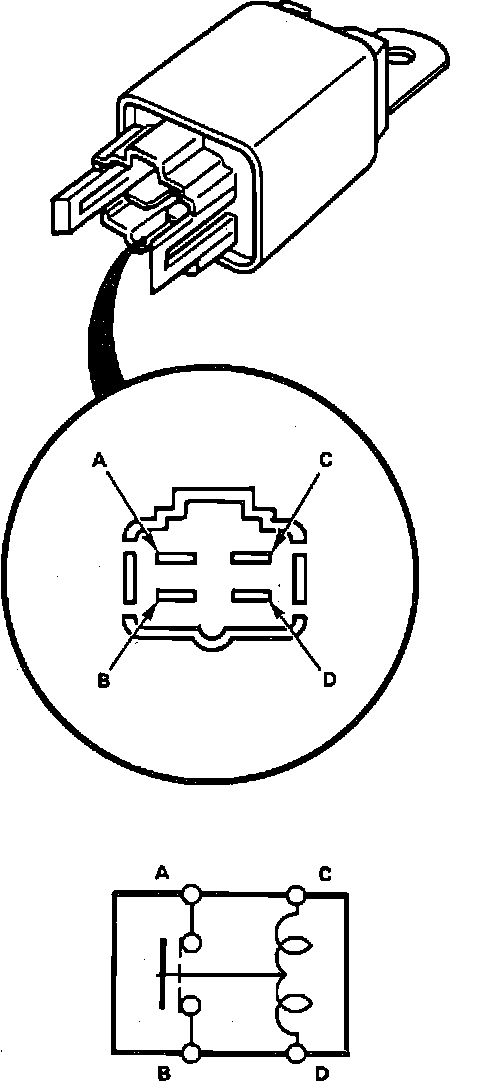

Fig. 6 Starter Relay Terminal Locations:

2. Apply battery voltage to C and D terminals of relay as shown in Fig. 6.
3. Check continuity between A and B terminals of relay, continuity should exist.
4. Disconnect battery voltage, there should be no continuity between A and B terminals of relay.
5. If relay does not operate as specified, replace relay.
