Honda
>>
1991
>>
CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 17
Fuse 17

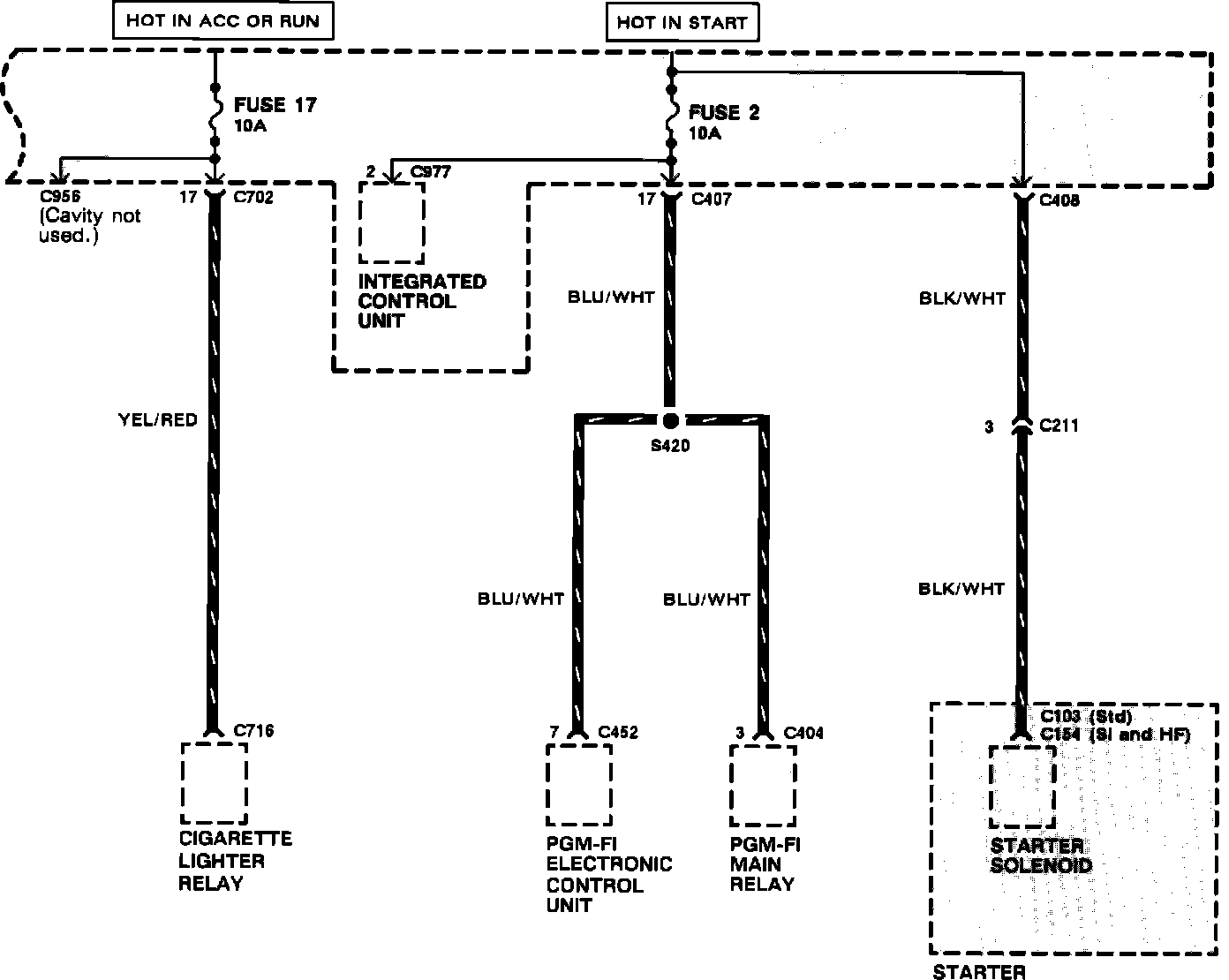

Dash Fuse Box. Fuse 15 & 18:

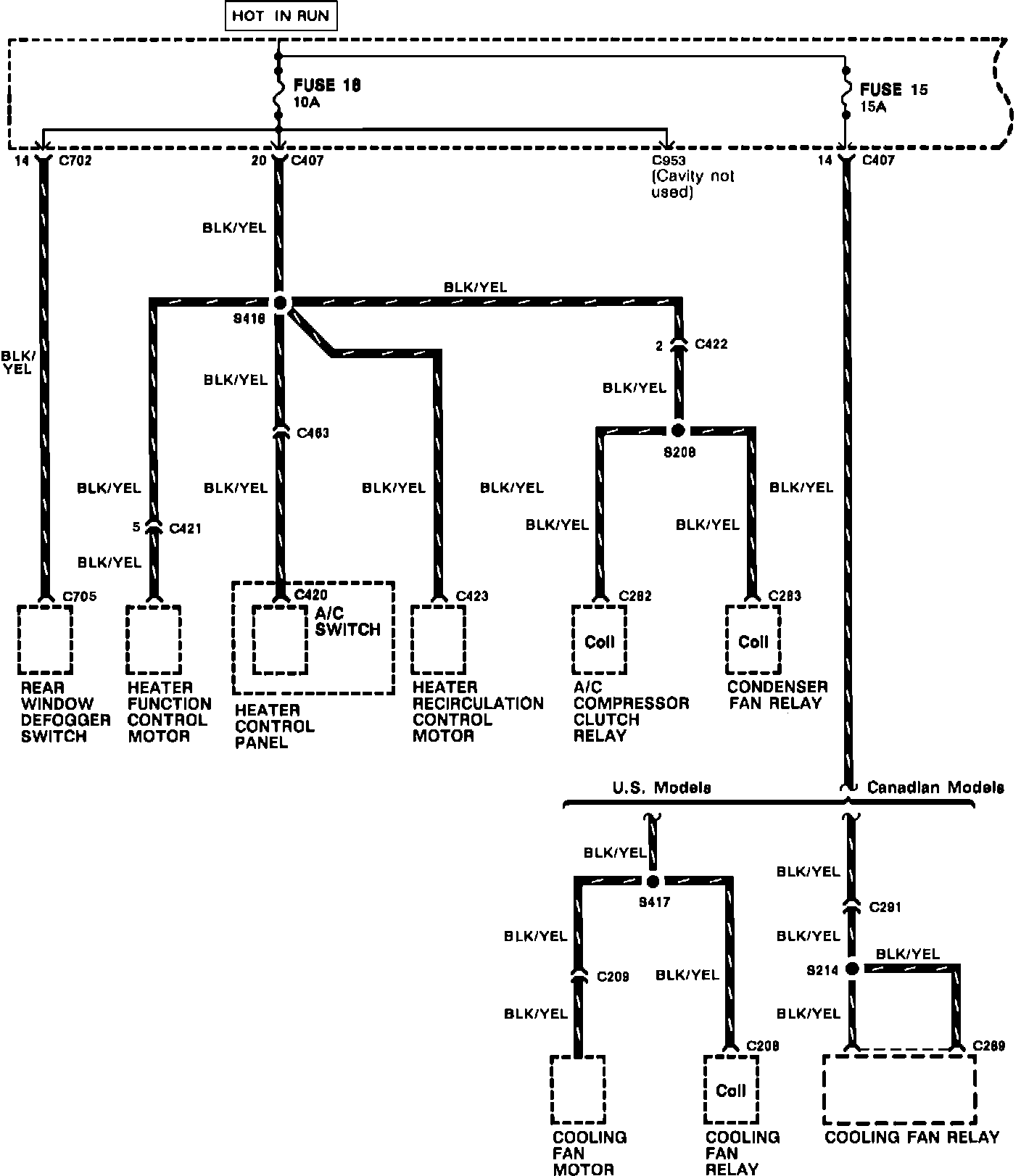

Fuses 2, 15, 17 & 18:
