Home
>>
Honda
>>
1991
>>
CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

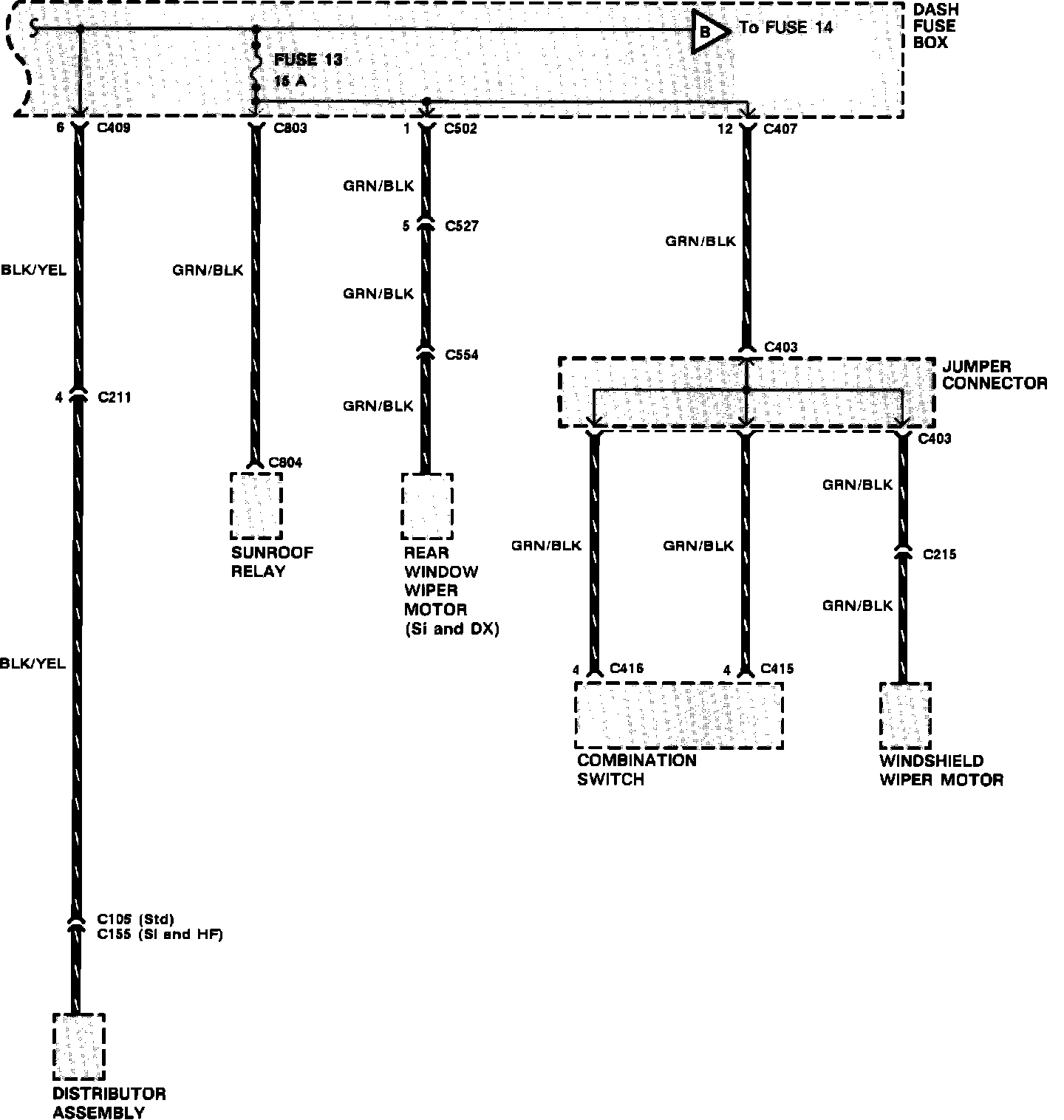

Fuse 13
Fuse 13

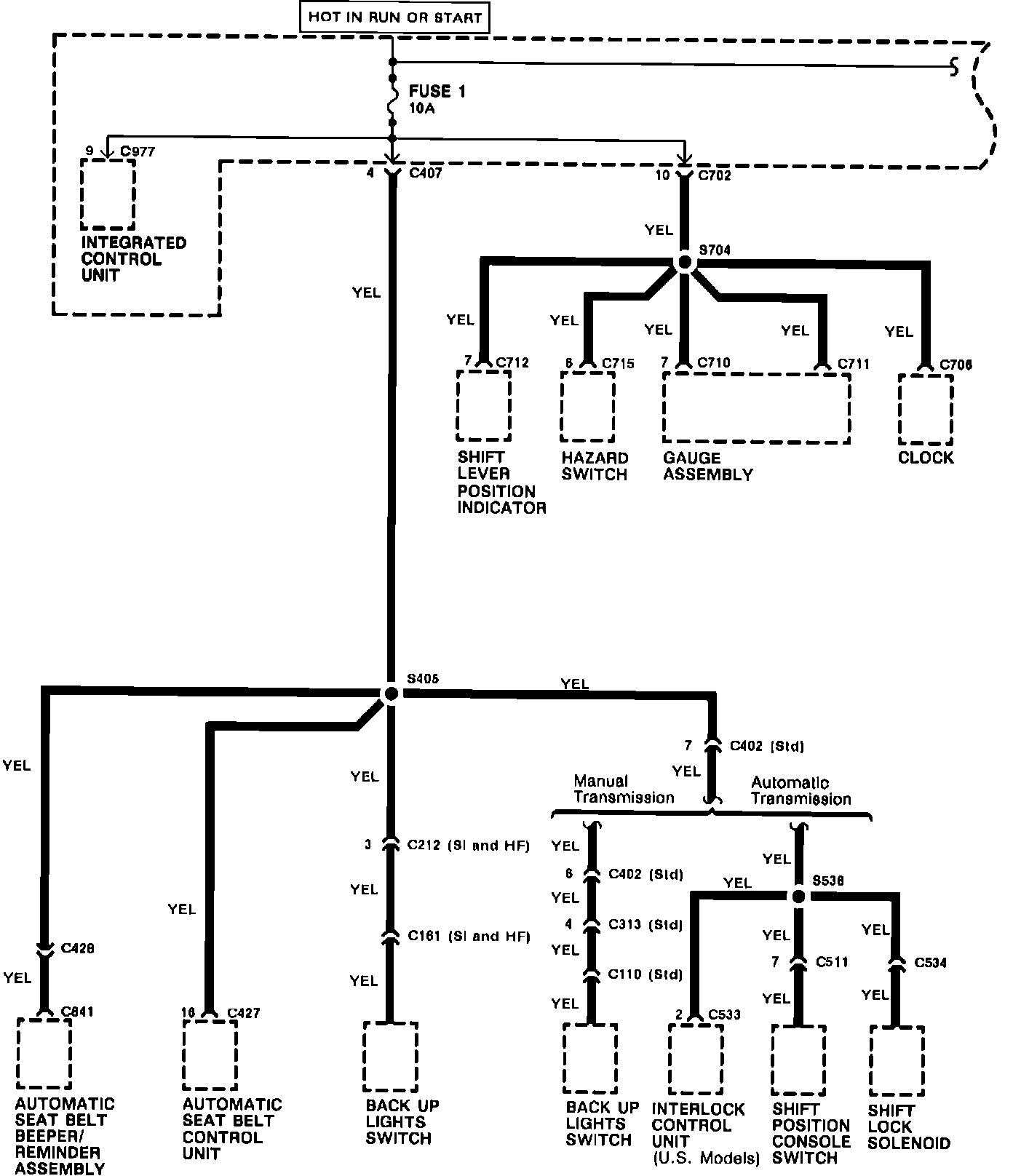

Dash Fuse Box. Fuse 1:
Fuses 1 & 13:
