CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 12
Fuse 12

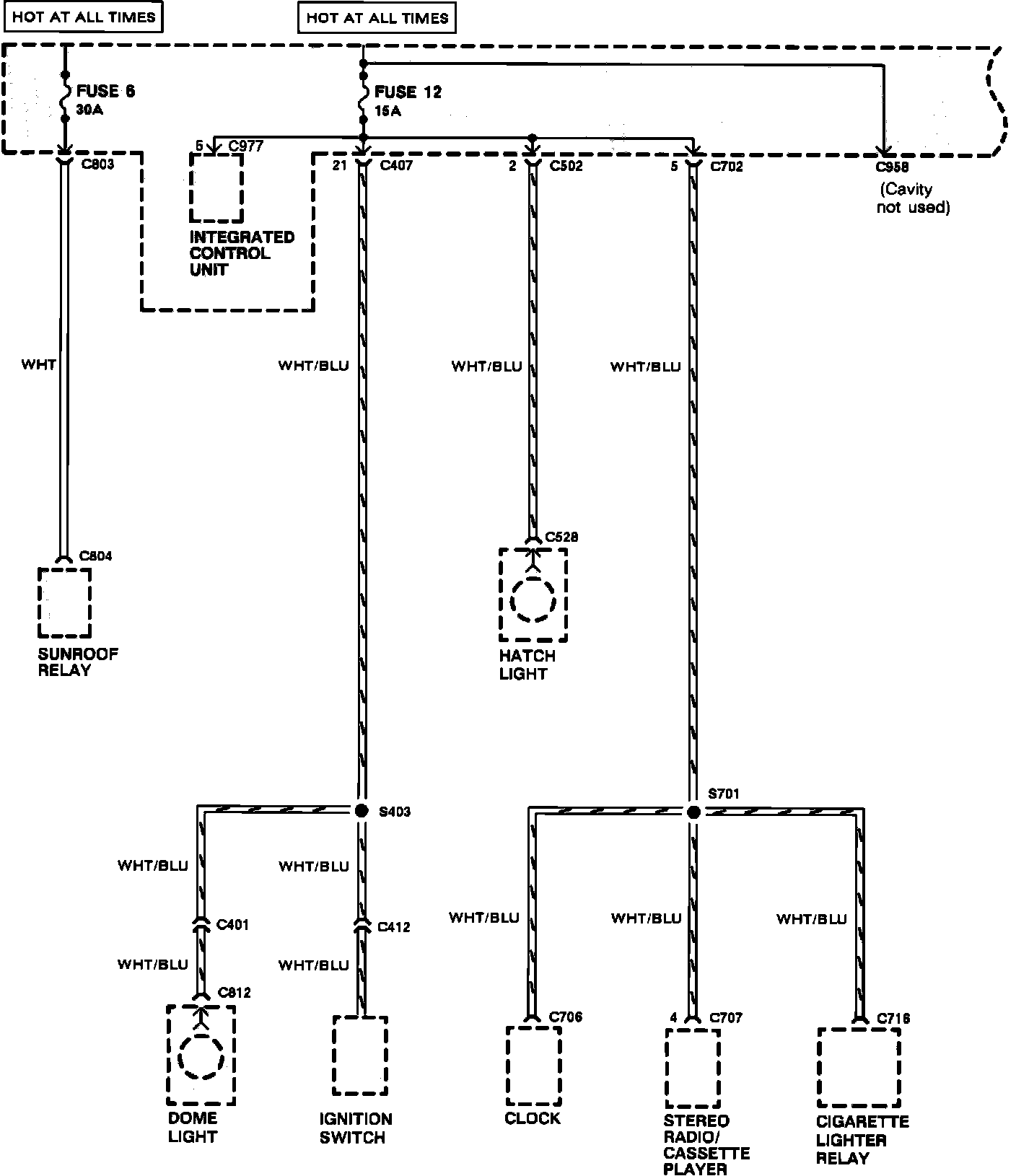

Fuses 6, 8 & 12:

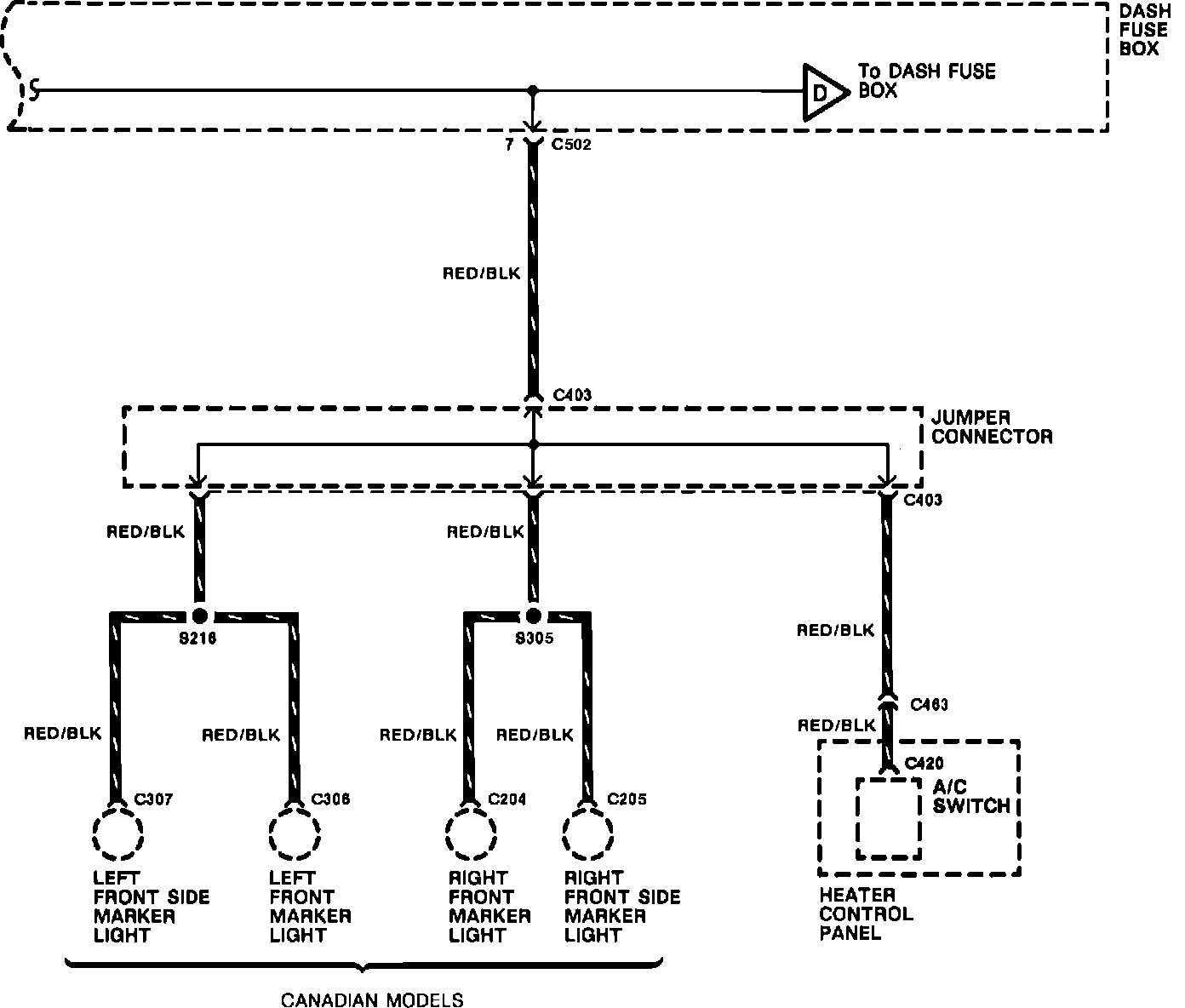

Dash Fuse Box. Fuse 8:

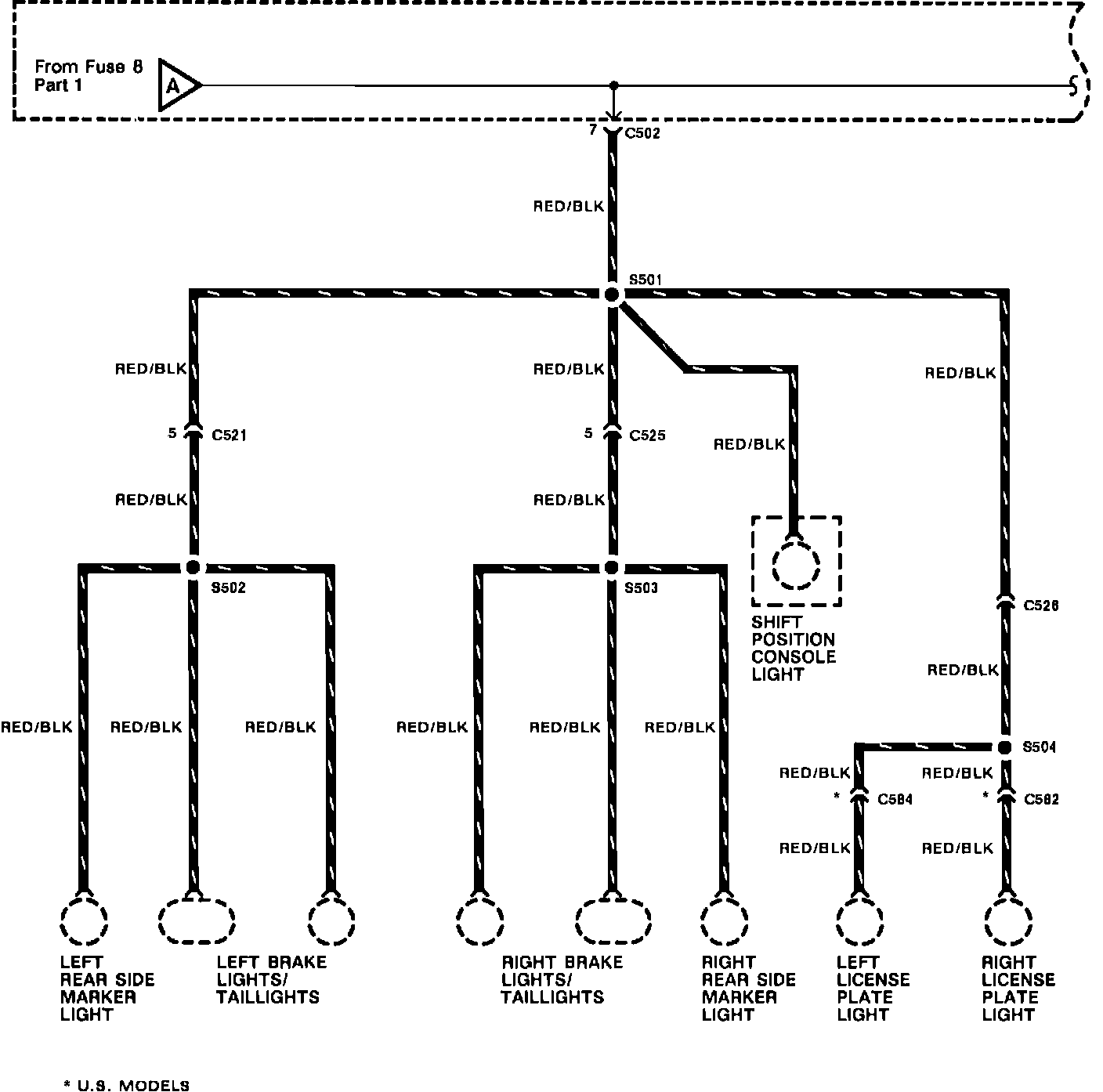

Dash Fuse Box. Fuse 8:

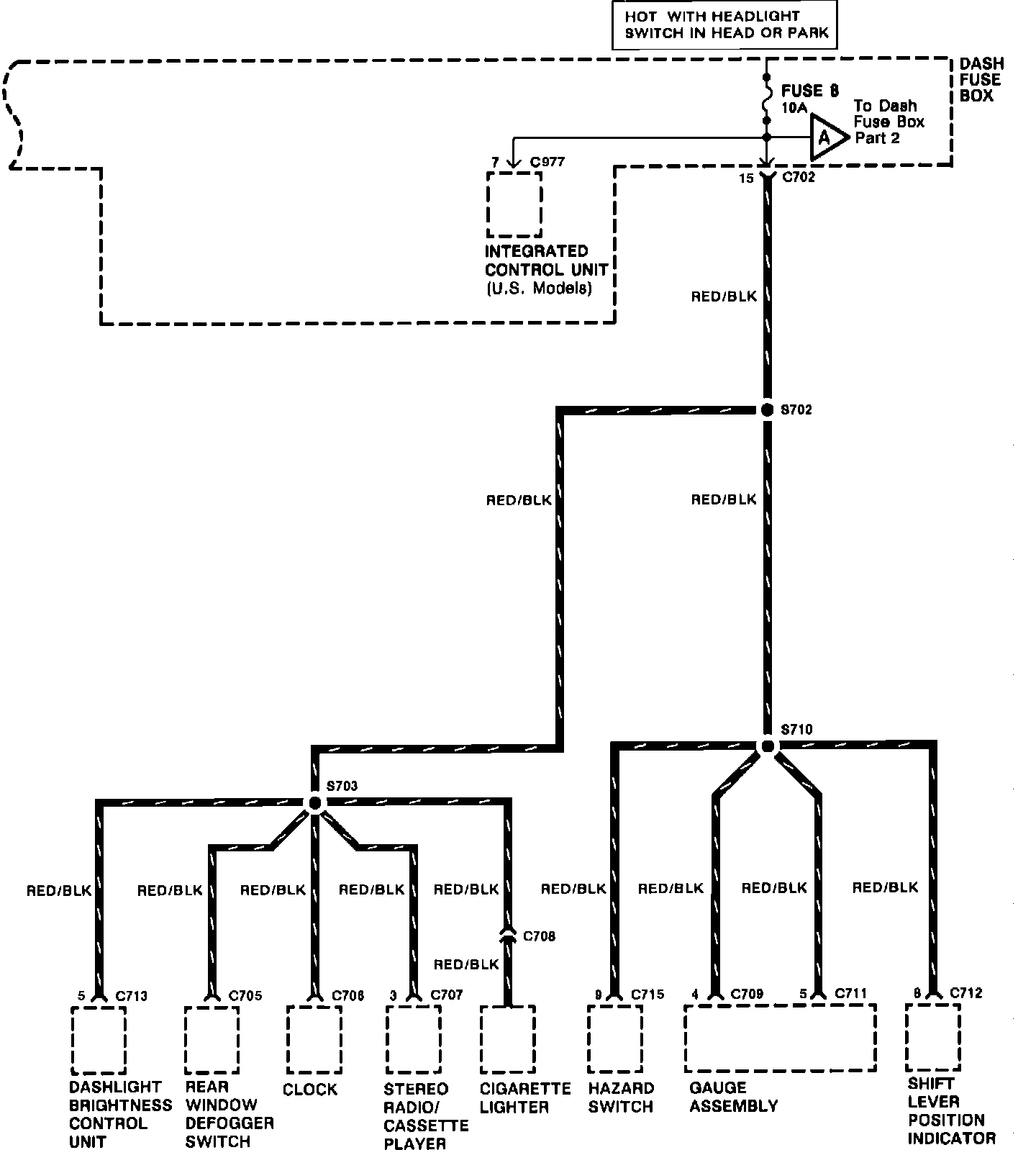

Dash Fuse Box. Fuse 8:

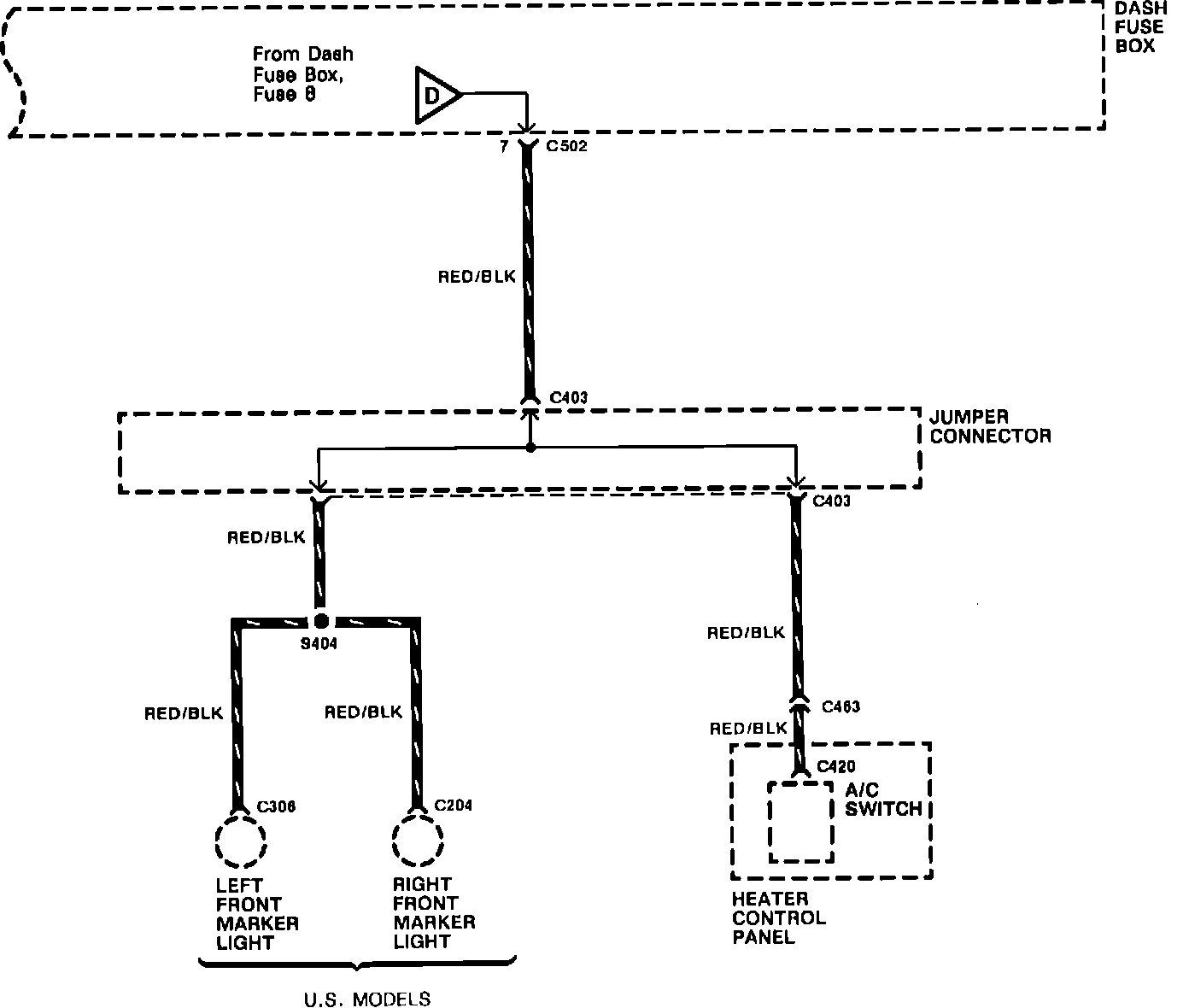

Dash Fuse Box. Fuse 8:
