Condenser HVAC: Service and Repair

Replacement

1. Discharge the refrigerant.

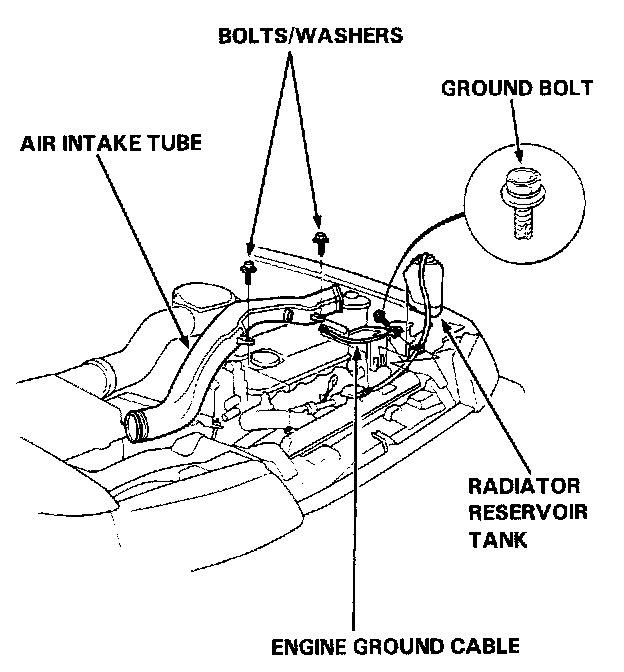

2. Disconnect the engine ground cable.





3. Remove the radiator reservoir tank and the air intake tube.

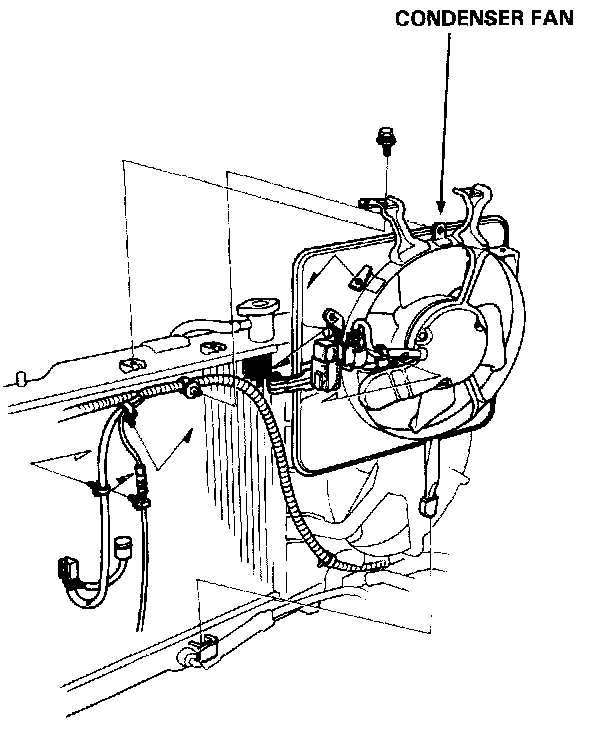

4. Remove the condenser fan with the two bolts.

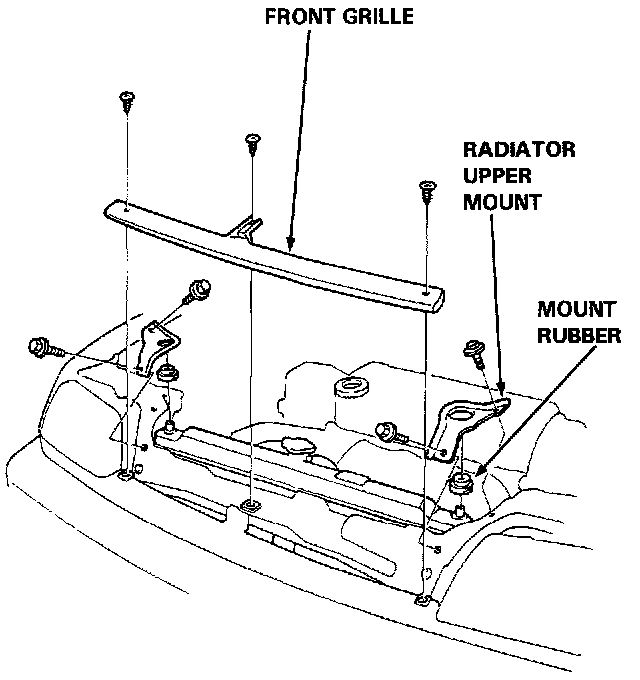

5. Remove the front grille with three screws and radiator upper mounts with two bolts each.

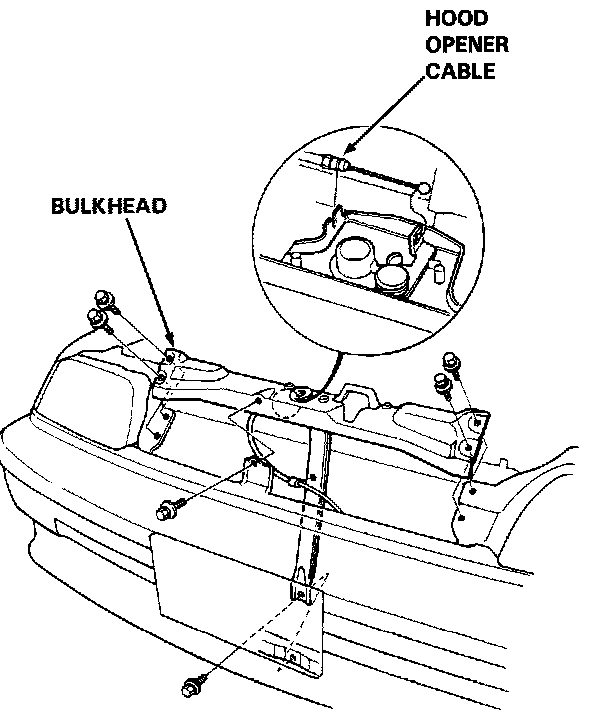

6. Remove the front bulkhead with six bolts, then remove the hood opener cable.

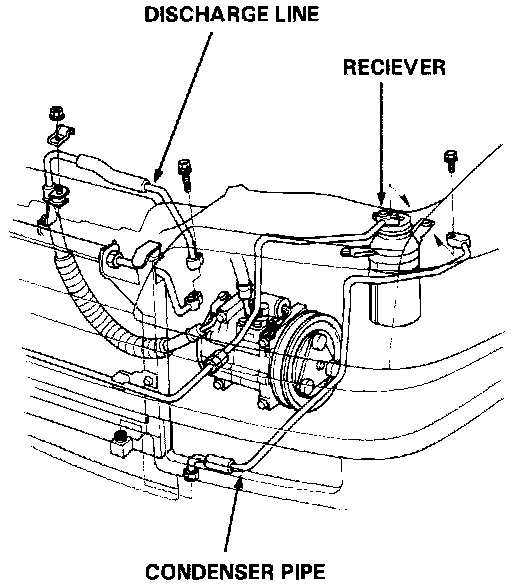

7. Disconnect the condenser pipe and discharge pipe from the condenser.





CAUTION: Cap the open fittings immediately to keep moisture and dirt out of the system.

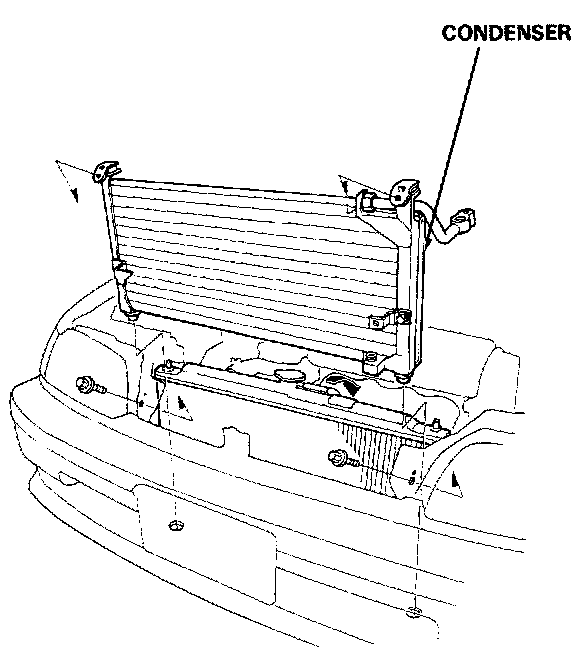

8. Remove the mounting bolts(2) and condenser.
9. Install in the reverse order of removal, charge the system and test performance.
