Rocker Arm Assembly: Service and Repair

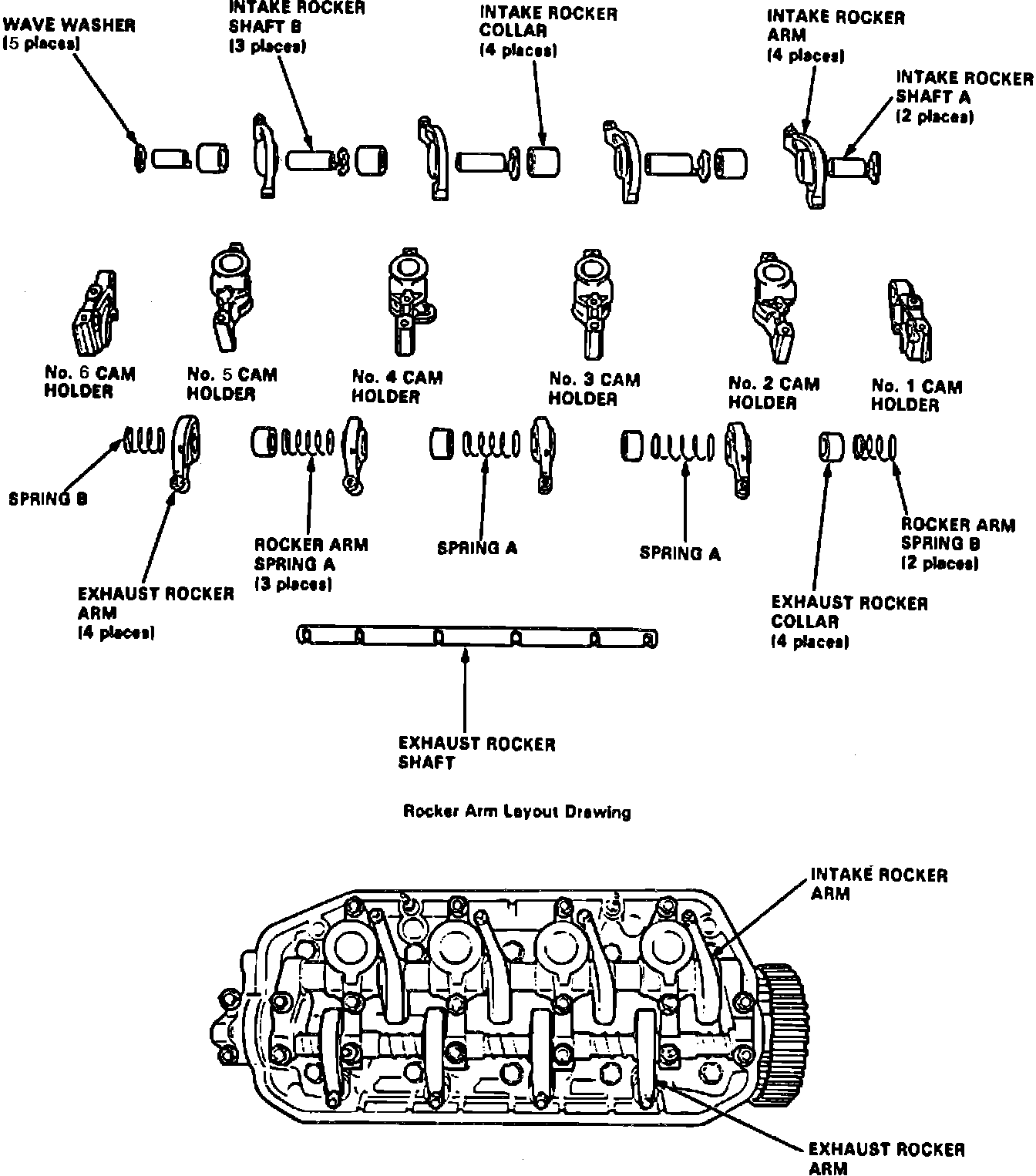

Fig. 17 Rocker Arm Assembly Exploded View. 1989-91 Civic & CRX:

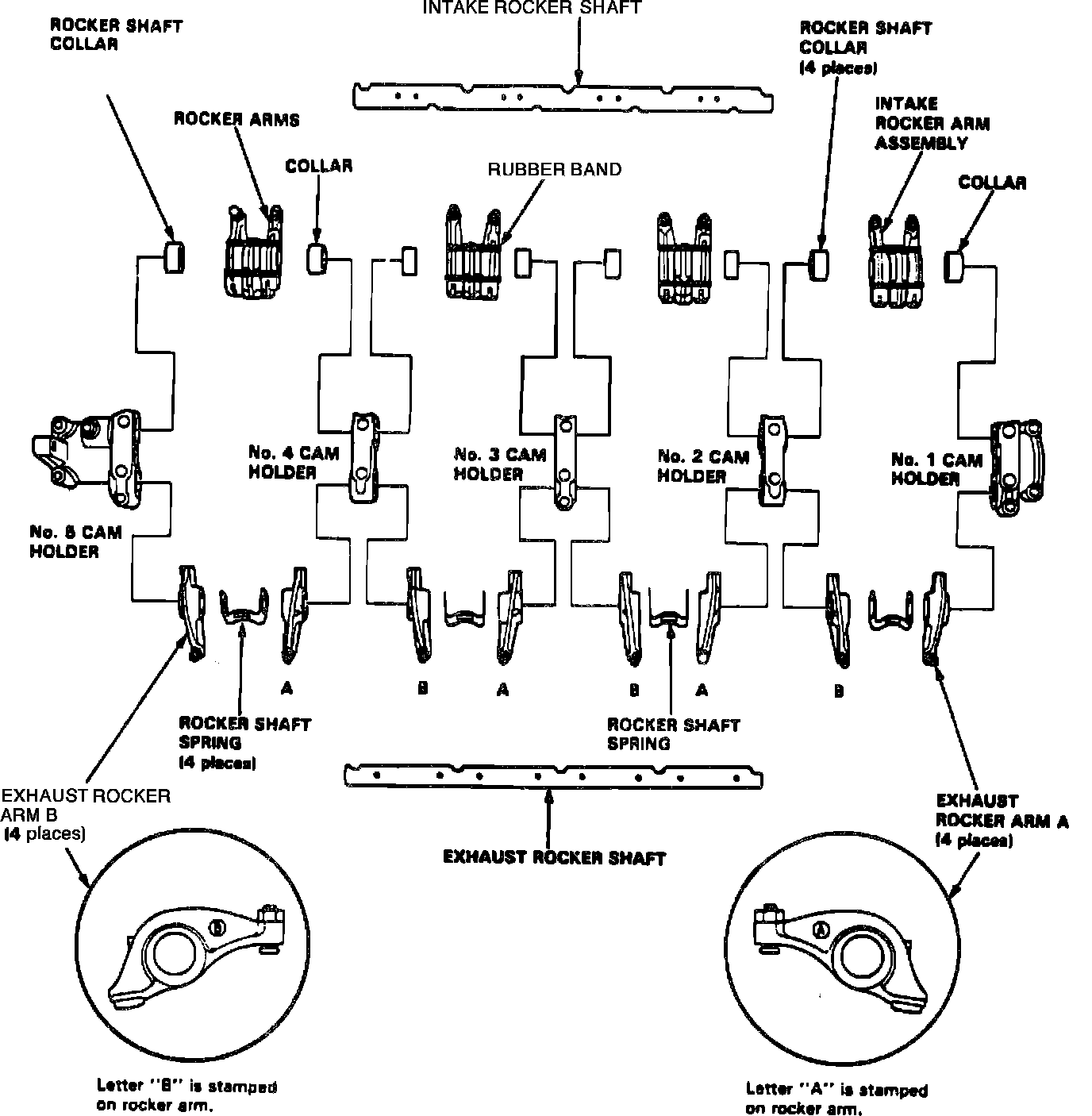

Fig. 20 Rocker Arm Assembly Exploded View. 1992,93 Civic And DelSol W/1.5L/4-91 (D15B7) Engines:

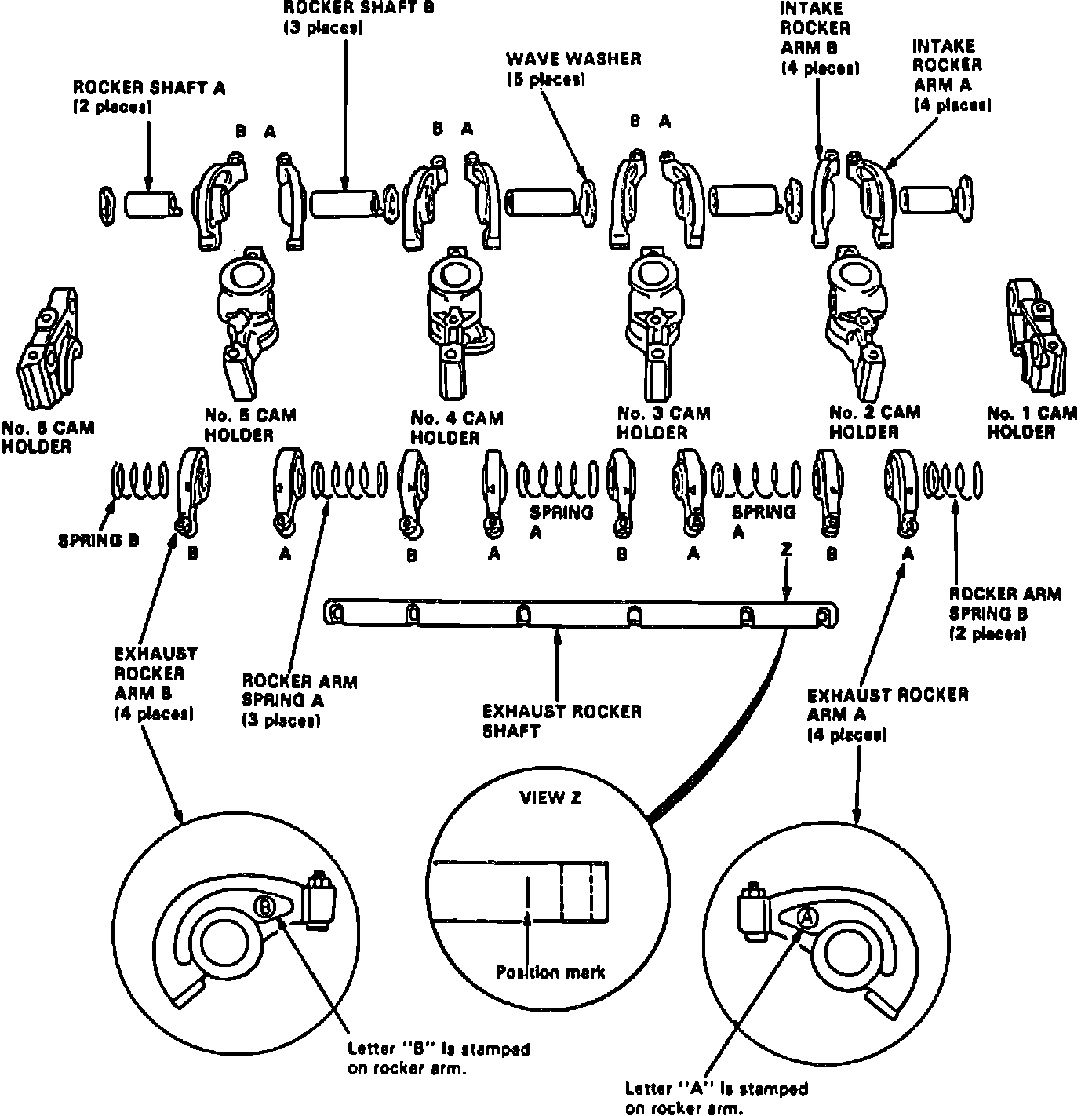

Fig. 21 Rocker Arm Assembly Exploded View. 1992,93 Civic And Delsol W/1.5L/4-91 (D15B8) Engines:

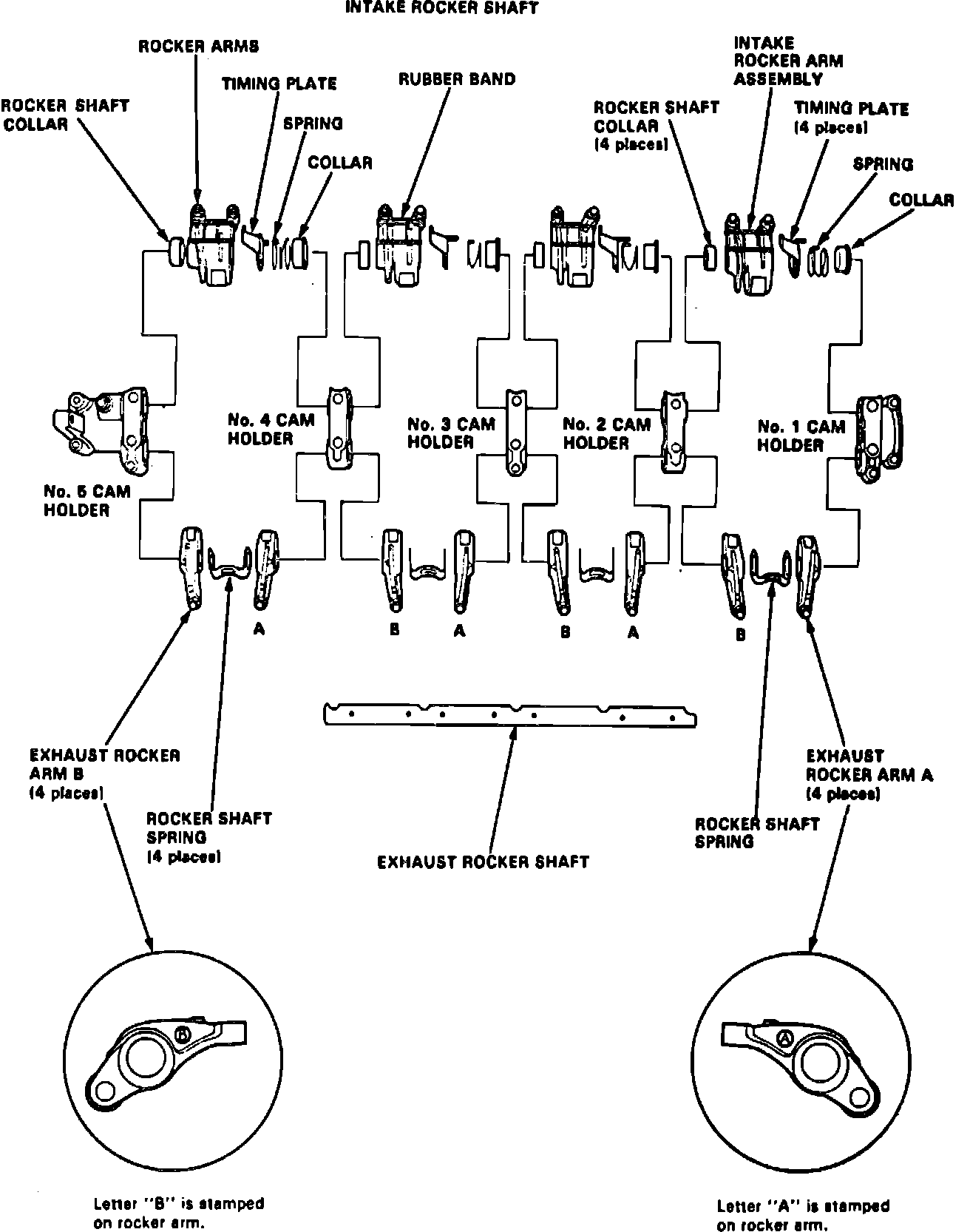

Fig. 22 Rocker Arm Assembly Exploded View. 1992,93 Civic And Delsol W/1.5L/4-91 (D15Z1) Engines:

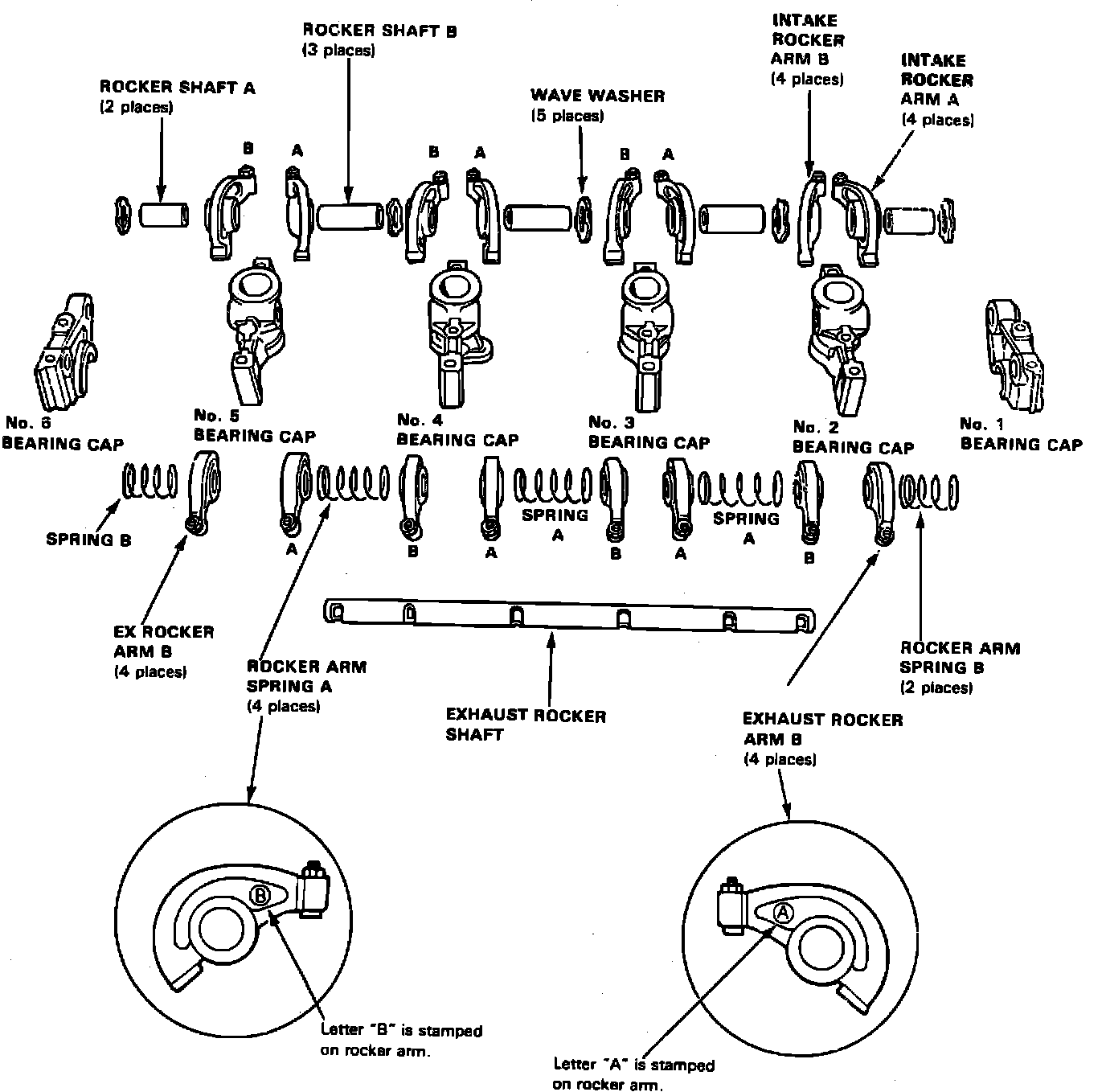

Fig. 23 Rocker Arm Assembly Exploded View. 1992,93 Civic And Delsol W/1.6L/4-97 (D16Z6) Engines:

Disassemble one or all parts of rocker arm assembly as necessary as shown in Figs. 17, 20 through 23. Prior to removal, identify all parts so they can be installed in their original locations.
