Power Distribution
Power Distribution

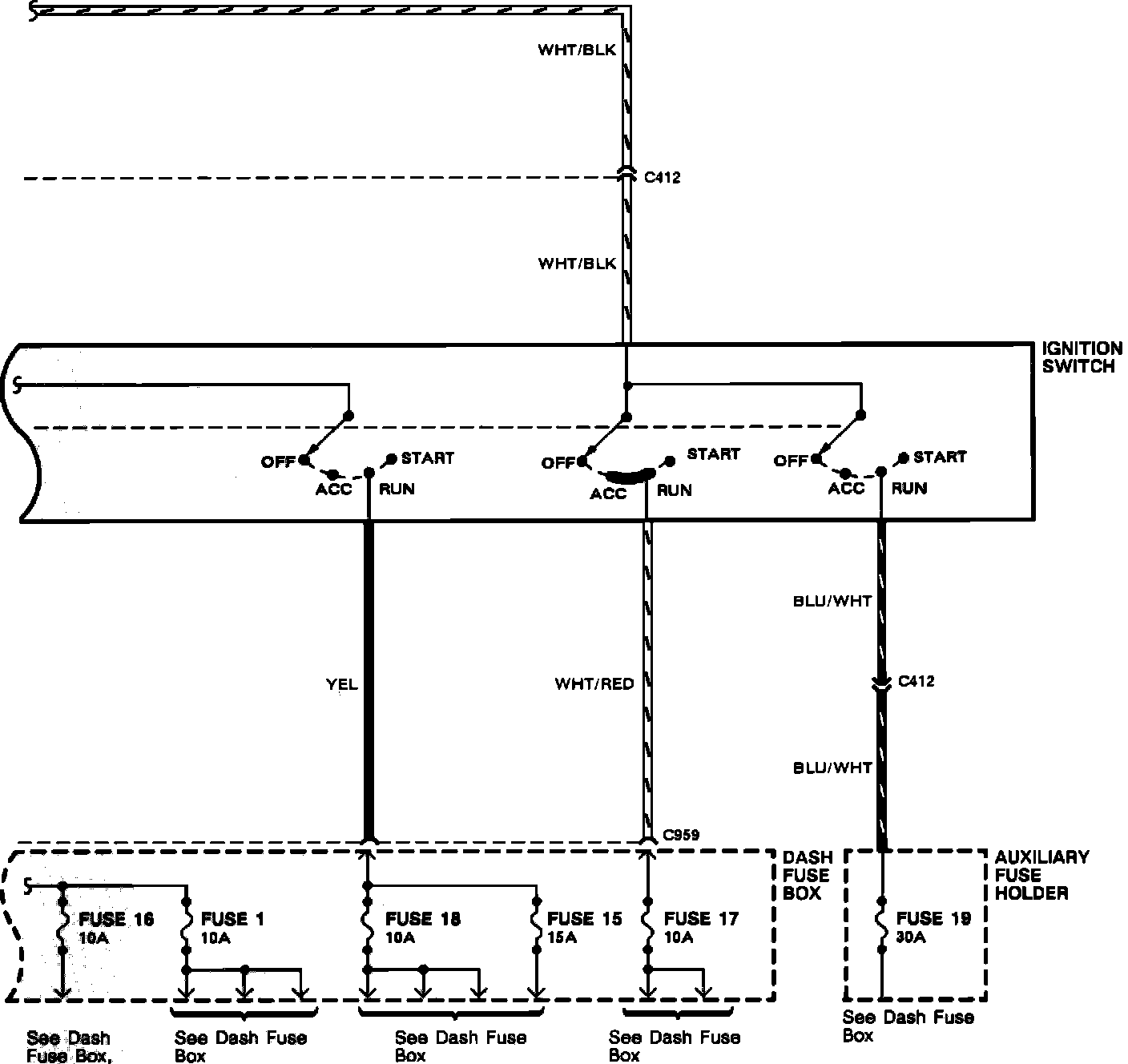

Power Distribution (Auxiliary Fuse Holder & Dash Fuse Box):
Power Distribution (Auxiliary Fuse Holder & Dash Fuse Box):

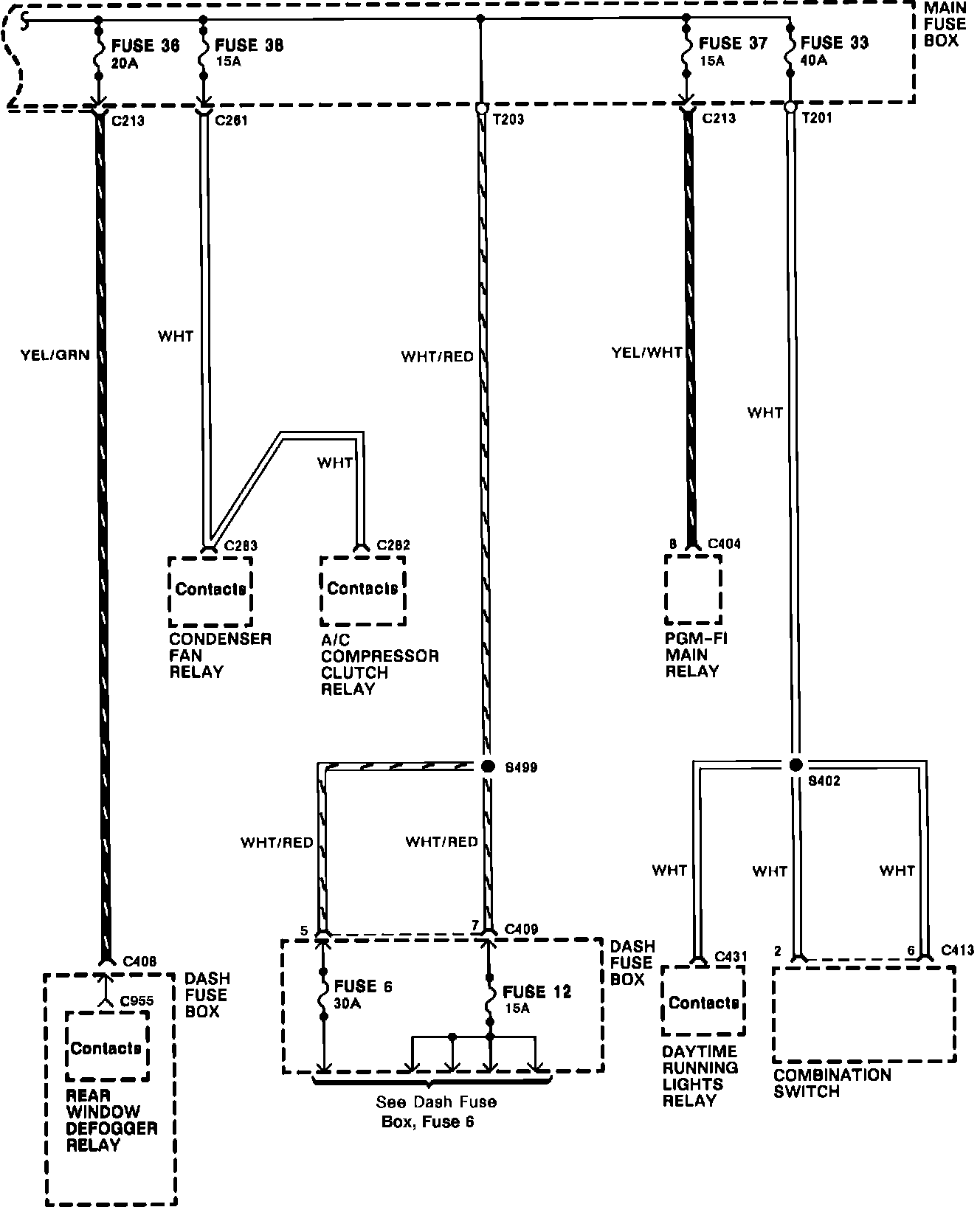

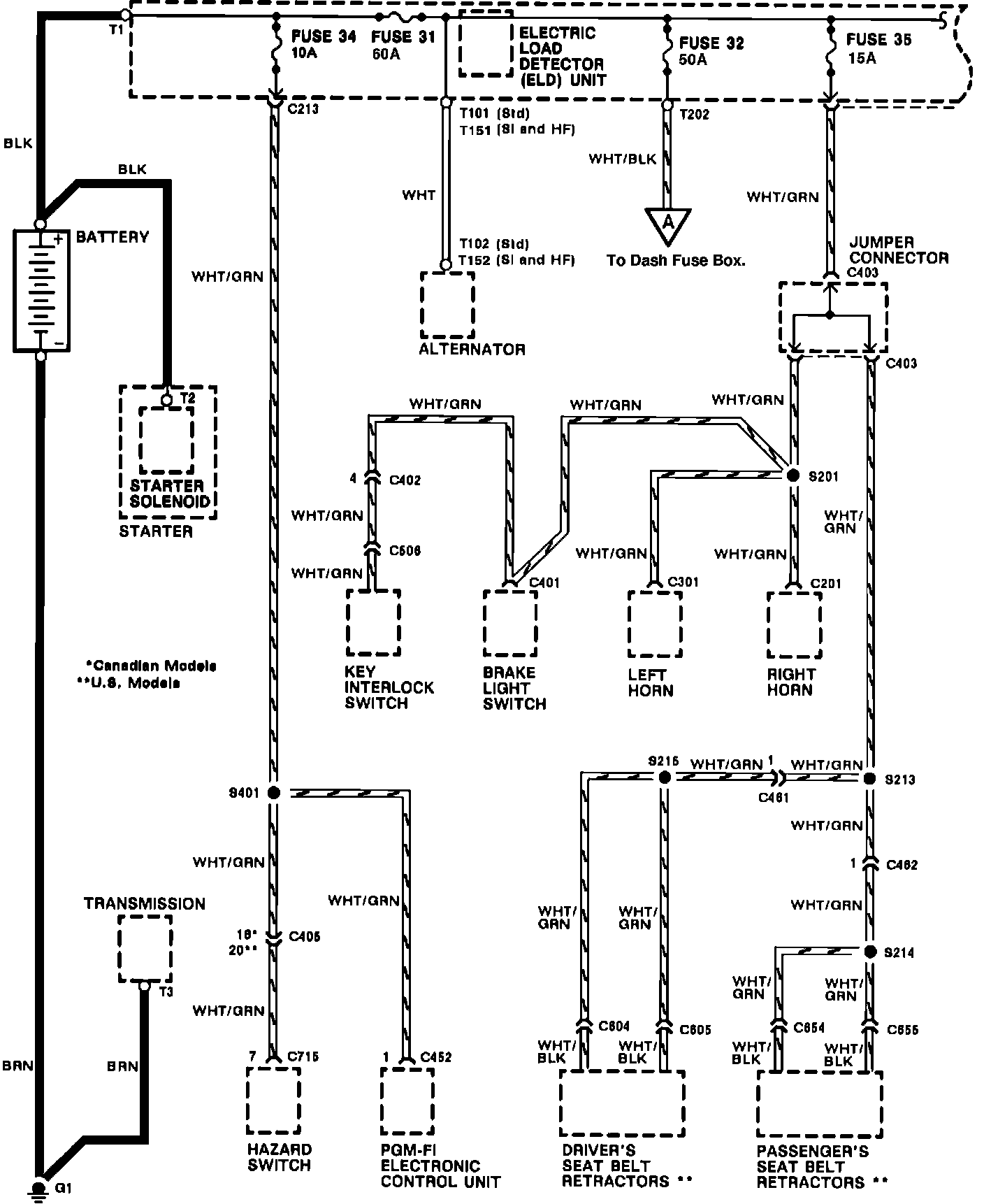

Power Distribution:
Power Distribution:
