Home >> Honda >> 1991 >> CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Compressor Controls >> Canada >> Part 2 of 2

Part 2 of 2

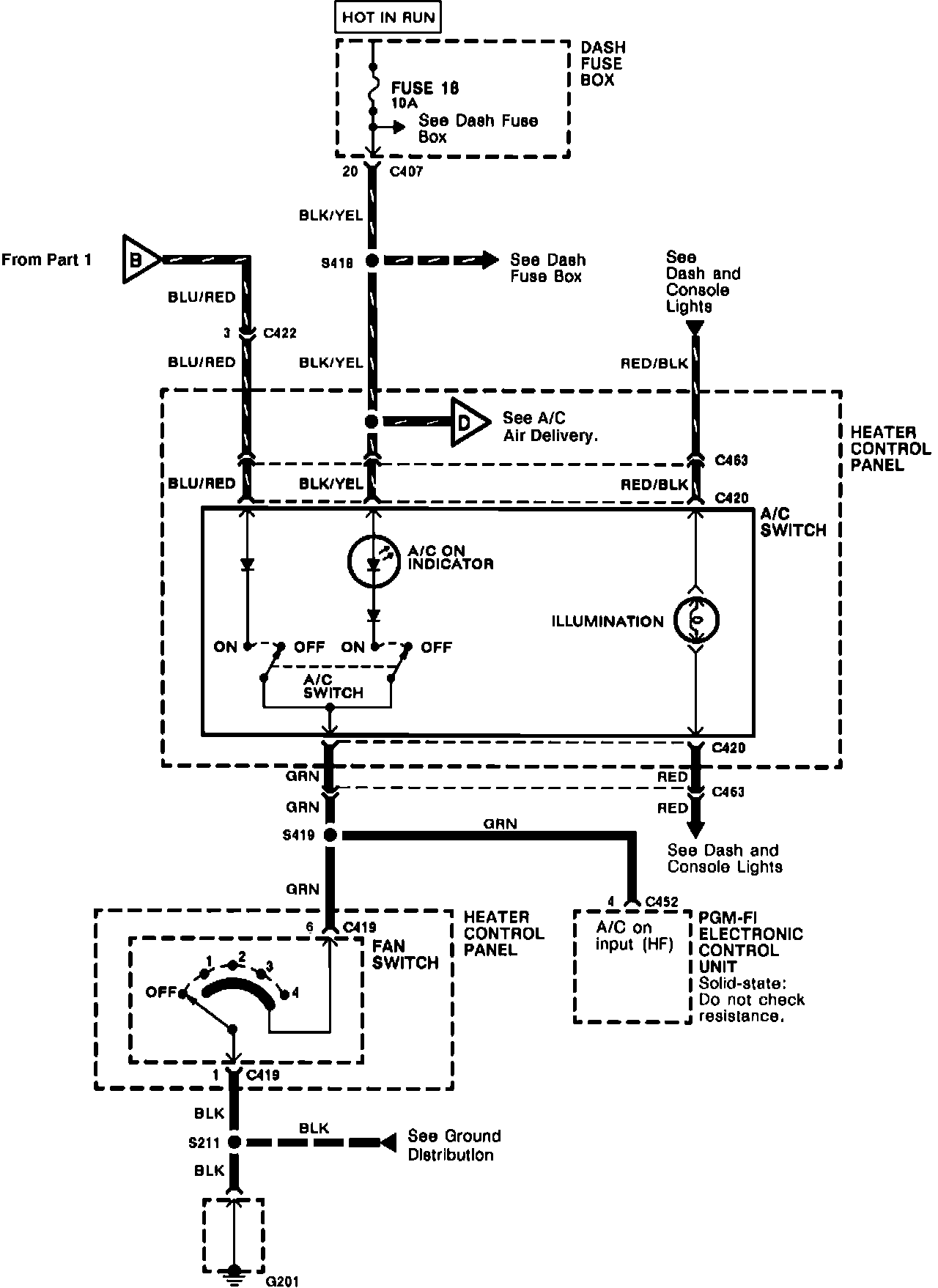

Fans And Compressor Control U.S. Vehicles:
