Disc Runout

DX Model (A Type)






Si Model (B Type)






HF Model (C Type)


Run-Out Inspection Front
1. Remove the front wheels, and support the front of the car on safety stands.
2. Remove the caliper pin bolt, then pivot the caliper up out of the way on the caliper pin bolt, and remove the pads and pad retainers.
3. Inspect the disc surface for grooves, cracks, and rust. Clean the disc thoroughly and remove all rust.

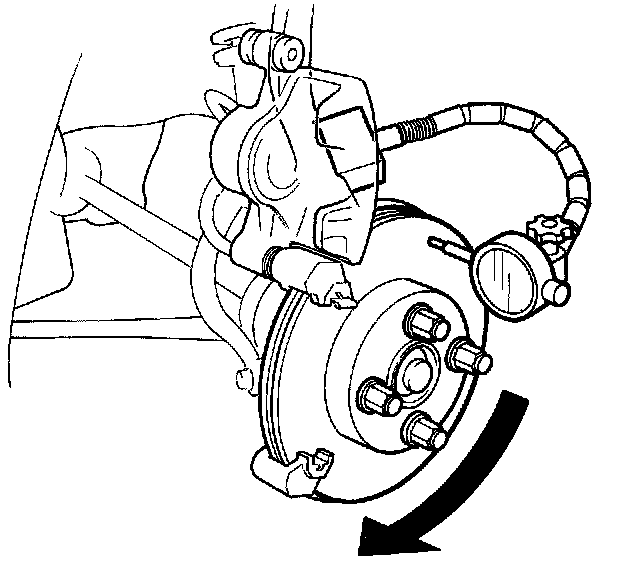

4. Use the lug nuts to hold the disc securely against the hub, then mount a dial indicator as shown.
Brake Disc Runout:
Service Limit: O.1 mm (0.004 in)
5. If the disc is beyond the service limit, refinish the rotor with an on-car brake lathe. The Kwik-Lathe produced by Kwik-Way Manufacturing Co. and the "Front brake disc lathe" offered by Snap-on Tools Co. are approved for this operation.

NOTE: A new disc should be ground if its run-out is greater than 0.10 mm (0.004 in.).
