Rear Wiper Motor

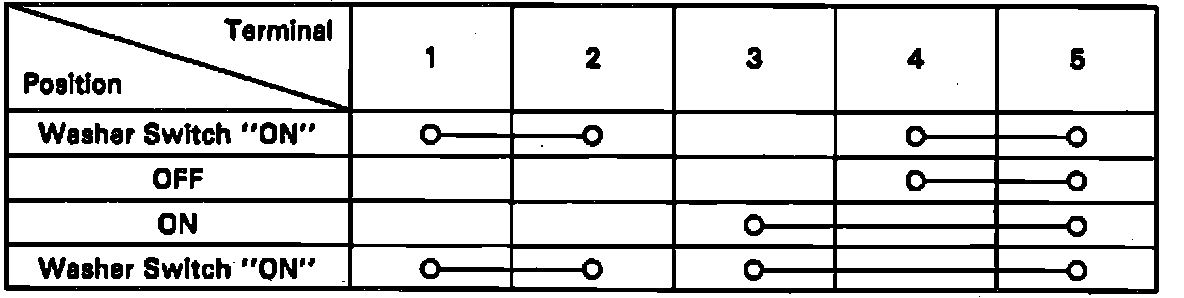

Fig. 11 Rear Wiper Motor Continuity Chart:

1. Remove tailgate lower trim panel.
2. Disconnect 4-pin connector at wiper motor.
3. Connect battery positive to the No. 1 terminal and negative to the No. 2 terminal. Motor should run smoothly. If it does not, repair or replace as necessary.
4. Check for continuity between terminals according to the table in Fig. 11.
