Windows - Door Glass Rattles

9220honda01

Model
'90-92 ACCORD


Applicable To
COUPE


File Under
BODY


Bulletin No.
92-011

Issue Date
FEB 28, 1992


Door Glass Rattles


SYMPTOM

The door glass is loose and rattles.

PROBABLE CAUSE

The sash guide pin is broken.

CORRECTIVE ACTION





Replace the sash guide pin.

1. Lower the door glass and remove the outer door sash garnish and sash guide.

2. Remove the door panel. Refer to Page 20-5 of the service manual.

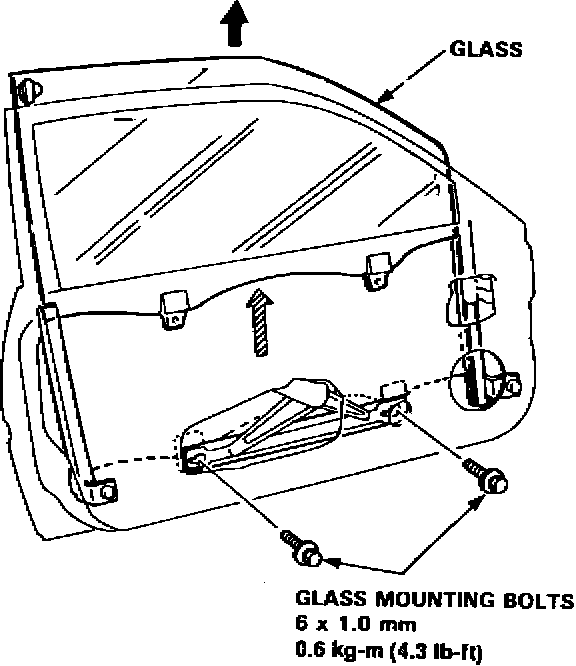

3. Remove the glass mounting bolts and remove the glass from the door.

4. Remove the old sash guide pin and bracket, and check that all debris is removed from the door glass and door well.





5. Install a new sash guide pin kit in the door glass and tighten to 7.5 kg-cm (6.5 lb.in) +/- 2.5 kg-cm (2 lb.in).


6. Reinstall the glass in the door and fasten the glass mounting bolts.

7. With the glass lowered, slide the sash guide into the guide pin bracket. Fasten the sash guide with the four screws.

8. Reinstall the plastic cover and plug in all electrical connectors. Check for proper operation of all switches and the door glass.

9. Reinstall the door panel, door handle assembly, and outer door sash garnish.

PARTS INFORMATION

Window Sash Pin Kit: P/N 73399-SM2-999 H/C 4050282
Kit contains: Sash pin, seal A, seal B, and guide pin bracket

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out-of-warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 826135 - Left side
827135 - Right side
Flat rate time: 0.8 hour per side
Failed part: P/N 72272-SM2-013
H/C 3366358
Defect code: 018
Contention code: B07
