Inspection

1. Measure the mainshaft at points A, B and C.
2. Replace the mainshaft if any readings are out of tolerance.

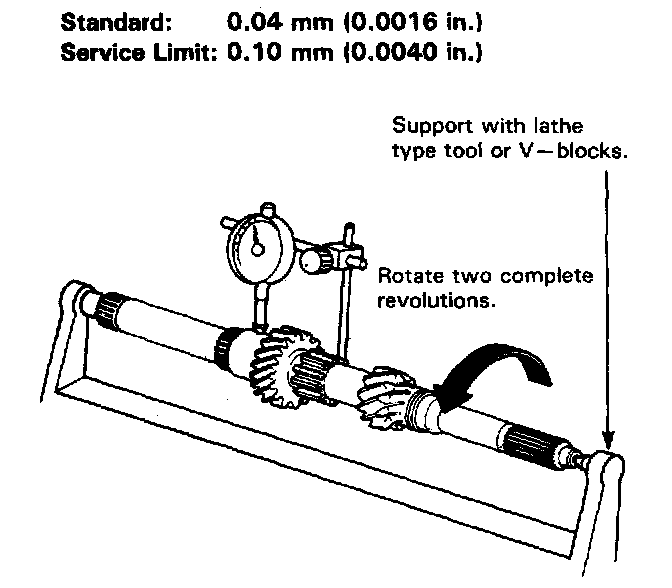

3. Inspect for runout.
4. Replace the mainshaft if the reading is out of tolerance.
