Inspection

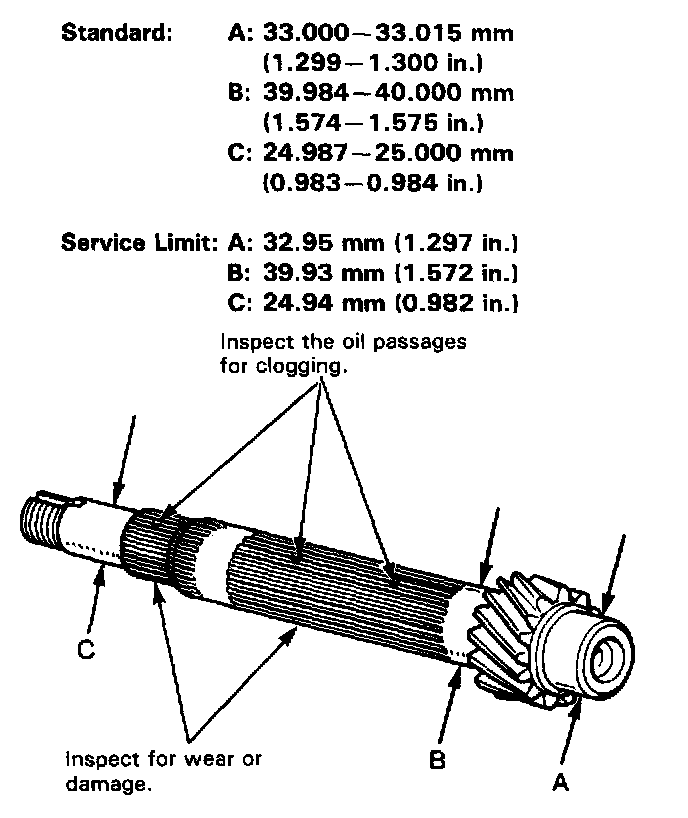

1. Measure the countershaft at points A, B and C.
2. Replace the countershaft if any readings are out of tolerance.

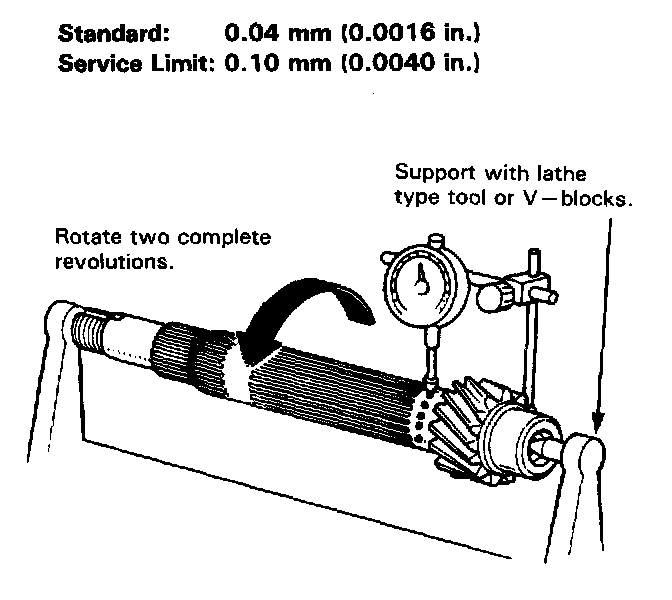

3. Inspect for runout.
4. Replace the countershaft if the reading is out of tolerance.
