Window - Rattles When It's Half Open

Bulletin No.
91-010

Issue Date
NOV 20, 1992

Model
1990-92
ACCORD
2-DOOR

Applicable To
ALL

File Under
BODY

Half Open Window Rattle
(Supersedes 91-010, dated April 12, 1991)

SYMPTOM

The window rattles when it is half open.

PROBABLE CAUSE

Excess clearance between the guide pin and the center sash guide.

CORRECTIVE ACTION [NEW]

Replace the sash guide with the improved guide listed under PARTS INFORMATION.

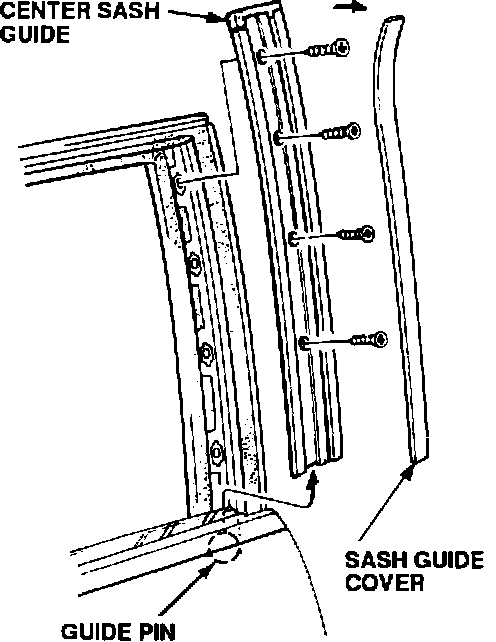

1. Lower the window fully.

2. Peel off the sash guide cover.





3. Remove the mounting screws and the sash guide.

4. Install the new sash guide with the original screws.

5. Apply small dabs of 3M Super Silicone Sealant, P/N 08662, to the top, middle, and bottom of the back side of the sash guide cover. Install the sash guide cover to the sash guide.

6. Use an acid brush or cotton swab to apply Honda Dielectric Grease (P/N 08798-0001) in the guide pin channel. Clean up any excess that gets on the outside of the channel.

7. Raise and lower the window, check for smooth operation.

PARTS INFORMATION [NEW]

Center sash guide, left
P/N 72272-SM2-013
H/C 3366358

Center sash guide, right
P/N 72232-SM2-013
H/C 3366291

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number:
826310 - Left door

827310 - Right door

Flat rate time:
0.3 hour per door

Failed part:
P/N 72266-SM2-A00
H/C 3414067

Defect code:
043

Contention code:
B07
