Seats - Headrest Lower Seam Detaches

91honda01

Model Applicable To

'90 - 91 ALL
ACCORD


File Under Bulletin No.

91-006
BODY

Issue Date
MARCH 1, '91

Headrest Lower Seam Won't Stay Tucked In





PROBLEM

The headrest lower seam detaches, allowing the upholstery to hang down.


CORRECTIVE ACTION

Refasten the headrest lower upholstery seam and apply adhesive.


1. Remove the headrest from the seat.

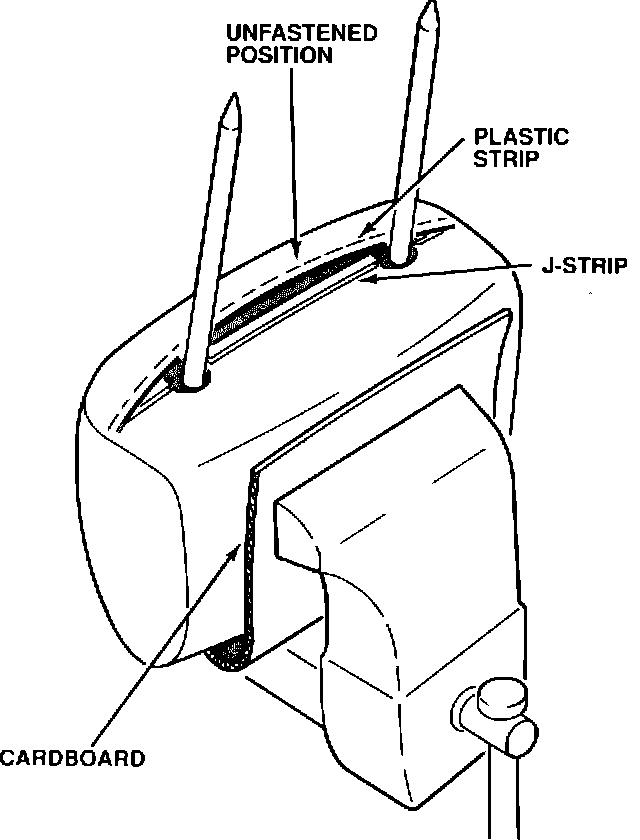

2. Protect the headrest fabric with a clean piece of cardboard and place the headrest in a vise-like holder.
3. Compress the headrest slightly to allow for ease of reassembly.

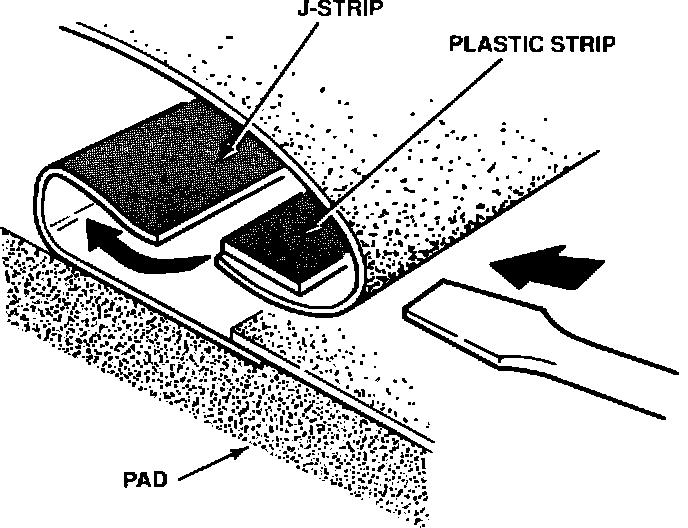

4. Using a flat blade screwdriver, carefully fold the plastic sewn strip over and tuck it into the plastic J-strip. Start at one end and work across the headrest. Make sure the plastic strip and the J-strip are centered with each other to avoid gaps at the corners.





5. Insert a flat blade screwdriver into the J-strip seam to spread it open slightly.

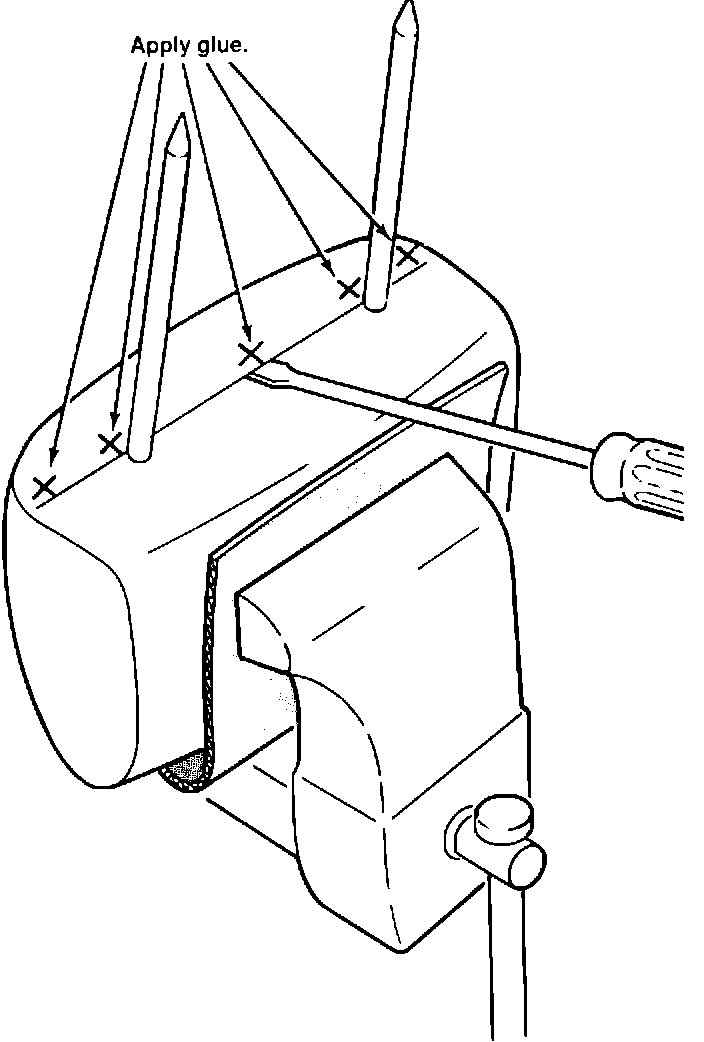

6. Carefully apply small amounts of cyanoacrylate ("super glue") to the areas shown.


7. Let dry for approximately 3 to 5 minutes. Reinstall the headrest.


WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out-of-warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 860050

Flat rate time: 0.2 hour

Failed part: P/N: 81140-SM1-A01ZC

Defect code: 021

Contention code: A01
