Cup Holder Buzz

9230honda01

Model
1990-92 ACCORD


Applicable To
See VEHICLES AFFECTED


File Under
BODY


Bulletin No.
89-042

Issue Date
APR 3, 1992


Cup Holder Buzz
(Supersedes 89-042, "Cup Holder Rattles and/or Won't Stay Closed," dated April 13, 1990)


SYMPTOM
The cup holder buzzes.


PROBABLE CAUSE
Space between the center console and the cup holder.

VEHICLES AFFECTED
2-dr. thru VIN 1HGCB7 ... NA008683
4-dr. thru 1HGCB7 ... NA041641
or 1HGCB7 ... NL005819
or JHMCB7... MC093244
Wagon thru 1HGCB9 ... NA000936

CORRECTIVE ACTION
Add insulation between the the cup holder and the console.

^ If the car within the VIN range, add insulation to the center console and replace the cup holder with the new cup holder assembly listed under PARTS INFORMATION.

^ If the car is above the VIN range, add insulation to the console, and reinstall the existing cup holder assembly.

1. Remove the center console.

^ Make sure the gear selector is as far back as possible.

^ For manual transmissions, remove the shift lever knob.

^ Pull up the hand brake and tilt the console up.

^ Remove the console in one piece.

2. Remove the cup holder assembly according to the diagram in the appropriate service manual.

3. Cut two pieces, 15 mm x 8 mm x 1 mm, of wool felt.

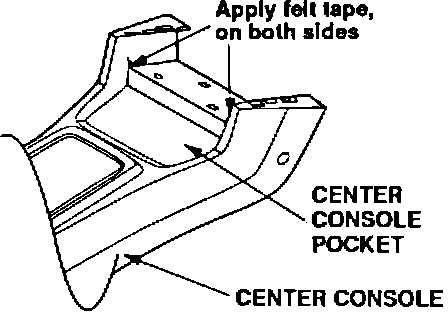

4. Install the felt on the sides of the center console where it contacts the cup holder.


5. Install the new cup holder, or reinstall the existing one.

6. Reinstall the center console and if, necessary, the shift lever knob.

PARTS INFORMATION

Holder Assembly, Cup
P/N 77230-SM4-A01, H/C 3395969

Wool Felt
P/N 06993-SA5-000, H/C 2086676


WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out-of-warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 044050

Flat rate time: 0.3 hours

Failed part: P/N 77230-SM4-A01
H/C 3395969

Contention code: B07

Defect code: 042
