Trailing Arm: Service and Repair

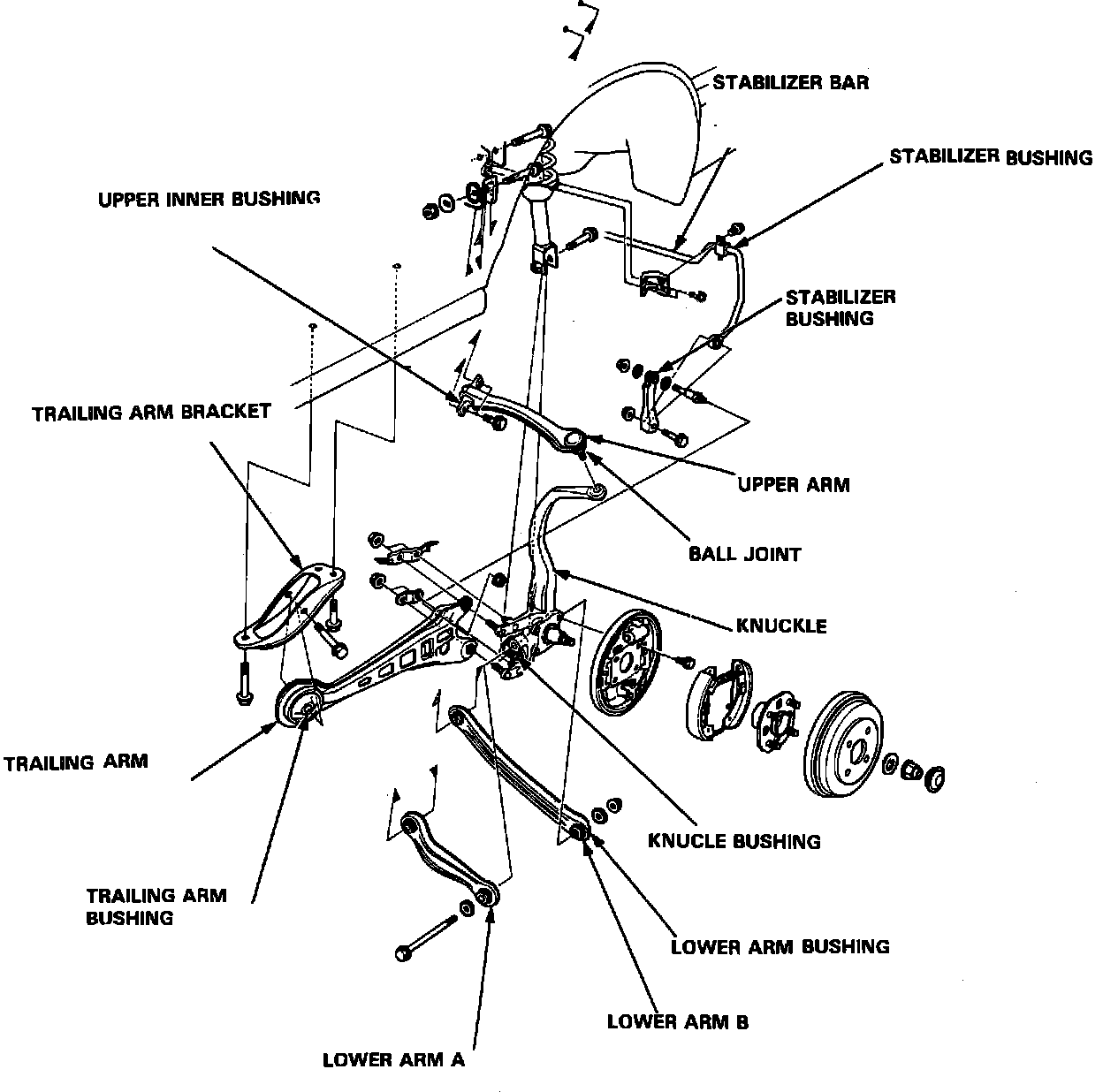

Fig. 12 Exploded View Of Rear Suspension:




Refer to Fig. 12 when replacing trailing arm.
