Door Latch Switch Test

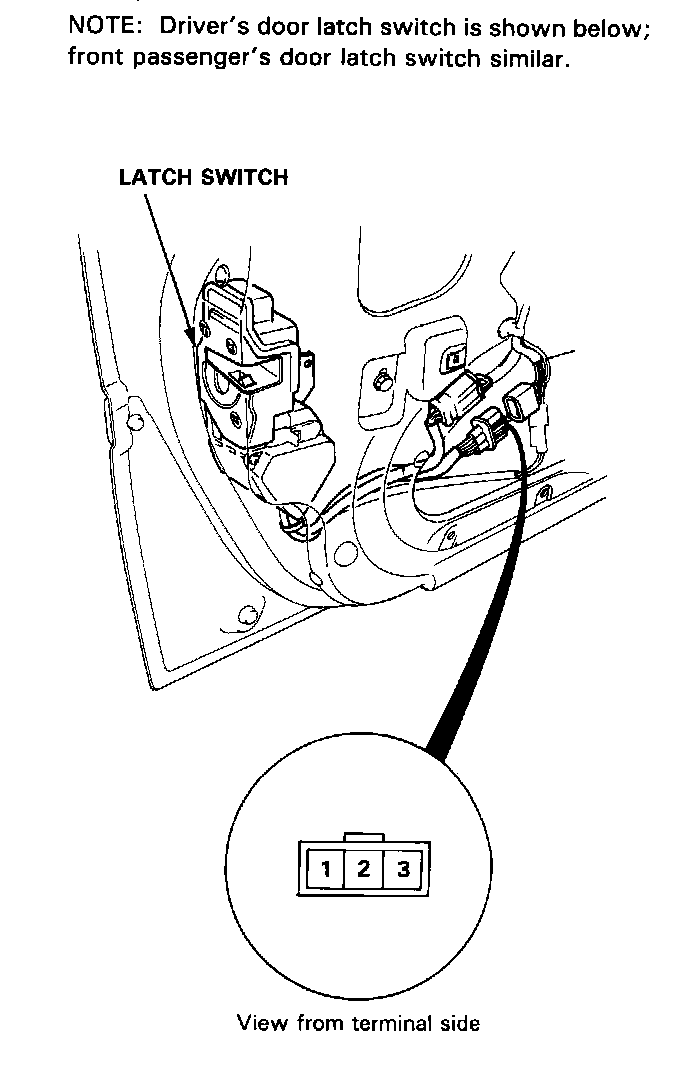

Door Latch Switch Test1. Remove the door trim panel.
2. Disconnect the 3-P connector from the switch.

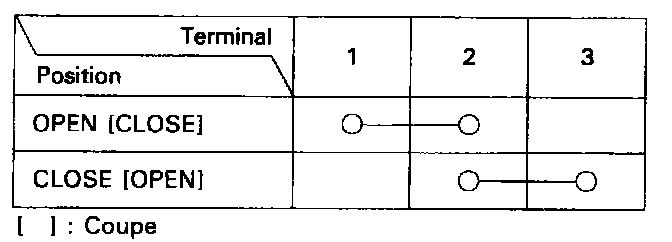

3. Check for continuity between the terminals in each door position according to the illustrated table.
1. Remove the door trim panel.
2. Disconnect the 3-P connector from the switch.
3. Check for continuity between the terminals in each door position according to the illustrated table.
