Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Dimmer Relay >> Locations

Headlamp Dimmer Relay: Locations

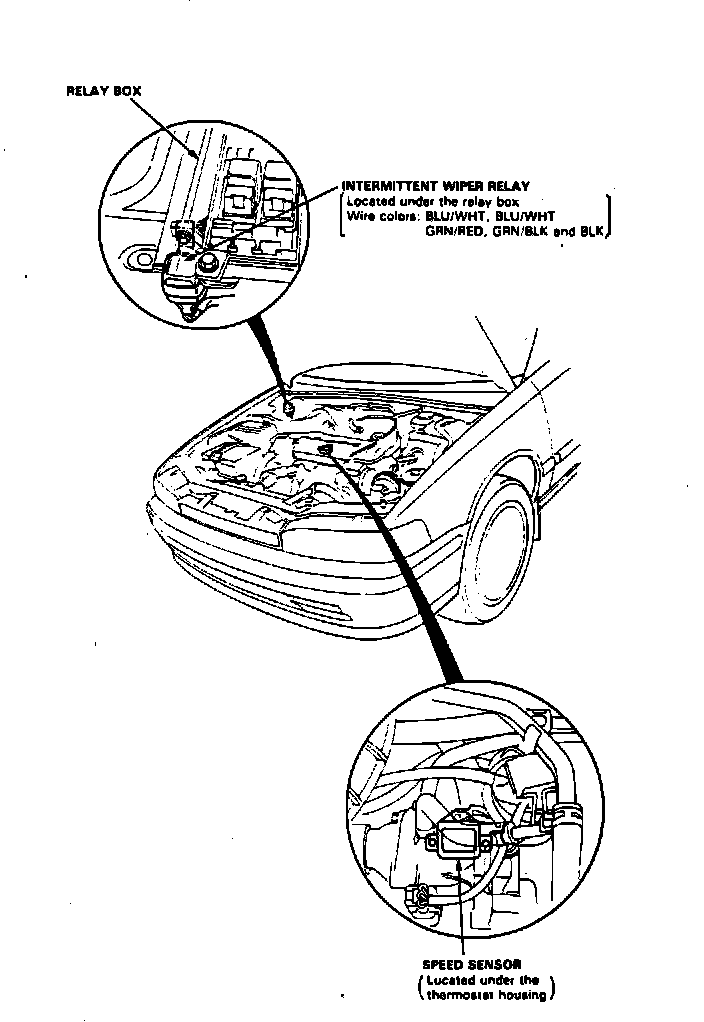

Engine Compartment Components (Part 1 Of 2):

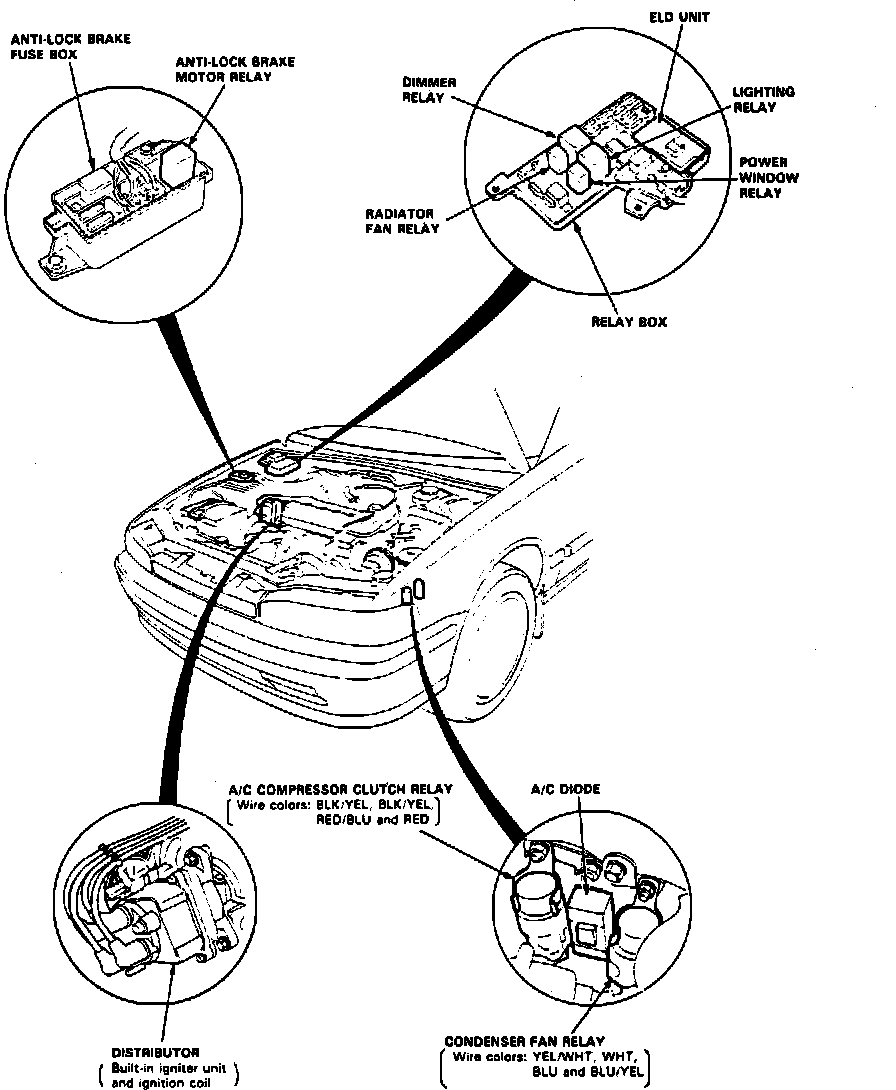

Engine Compartment Components (Part 1 Of 2):

Rear RH Side Of Engine Compartment, In Relay Box
