Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Resonator >> Resonator Control Solenoid >> Locations

Resonator Control Solenoid: Locations

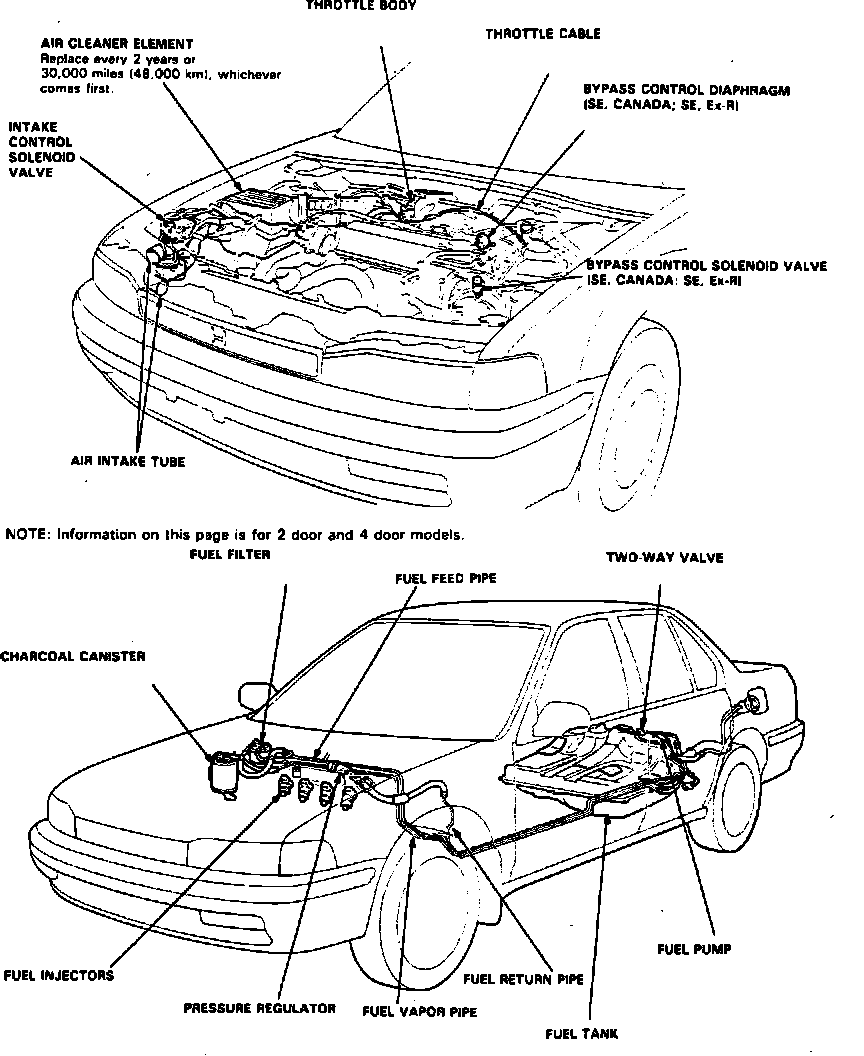

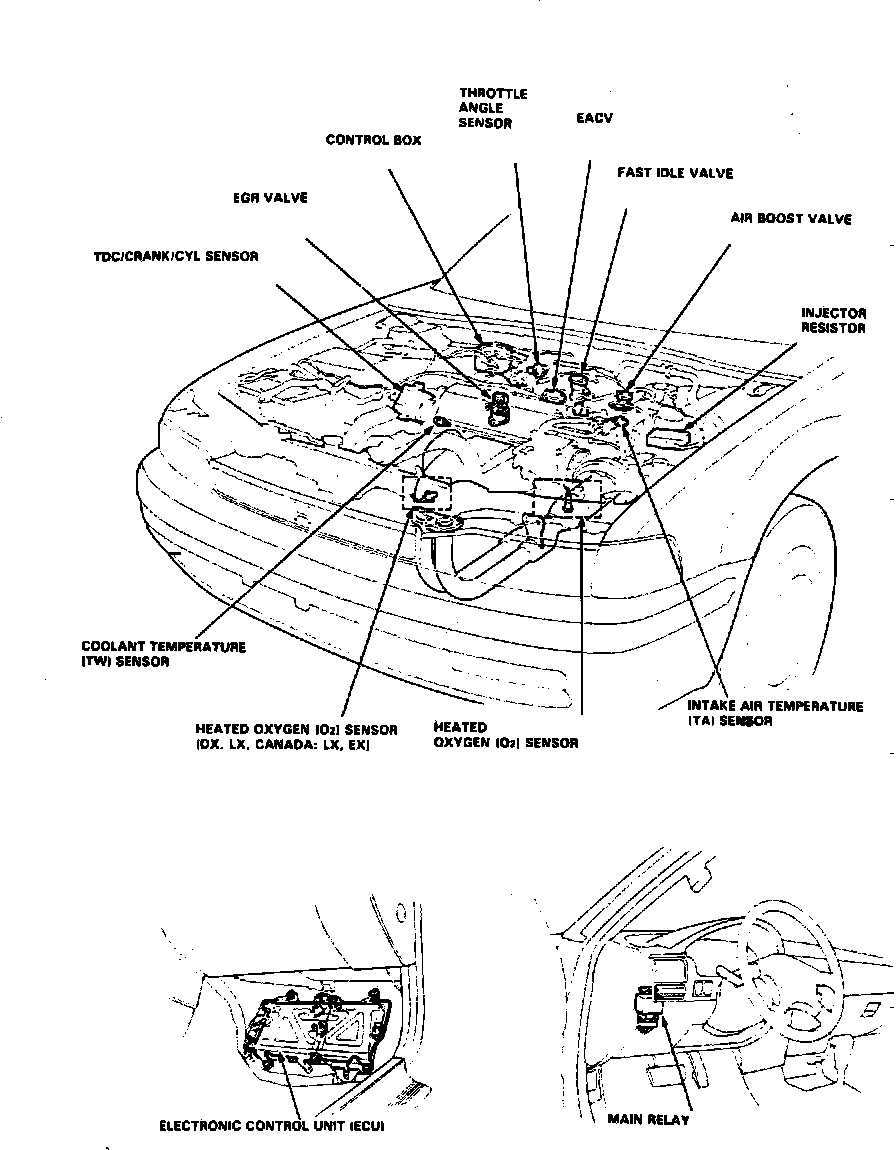

Fuel & Emissions System Components (Part 1 Of 2):

Fuel & Emissions System Components (Part 1 Of 2):

LH Side Of Engine Compartment
