Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light





Coupe/Sedan
1. Open the trunk lid

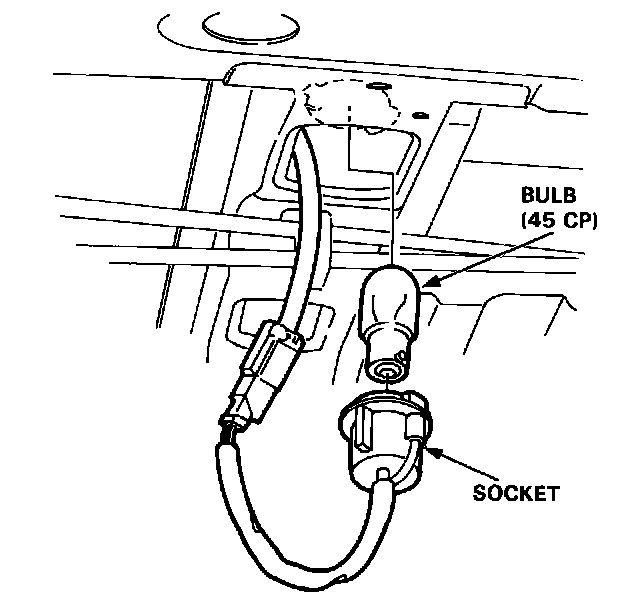

2. Remove the bulb socket by turning it counter-clockwise.
3. Remove the bulb from the socket.






Wagon
1. Open the tailgate.
2. Remove the high mount brake cover.
3. Remove the bulb from the socket.





LED Type
1. Remove the four screws and the high mount brake light, then disconnect the 2-P connector.
