Condenser Fan Diode: Testing and Inspection

NOTE: The diodes are designed to pass current in one direction and block current in opposite direction. Most ohmmeters, unless equipped with a diode tester, should not be used to test diodes.

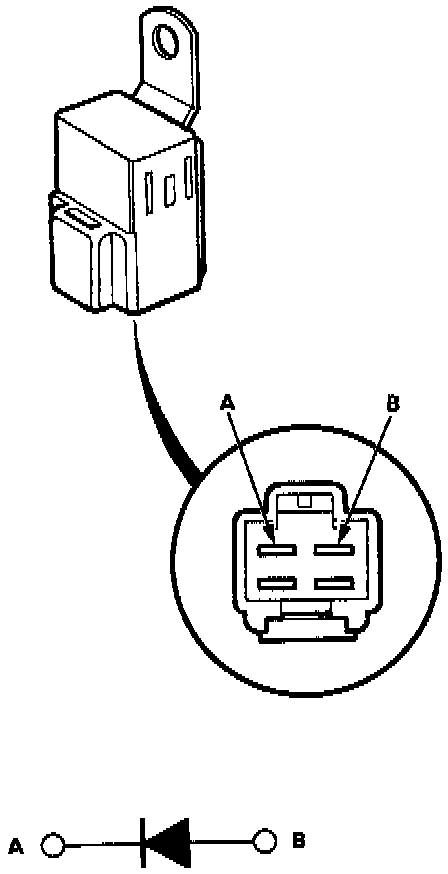

Check for continuity in both directions between A and B terminals. There should be continuity in only one direction.
