Function (Mode Control) Cable

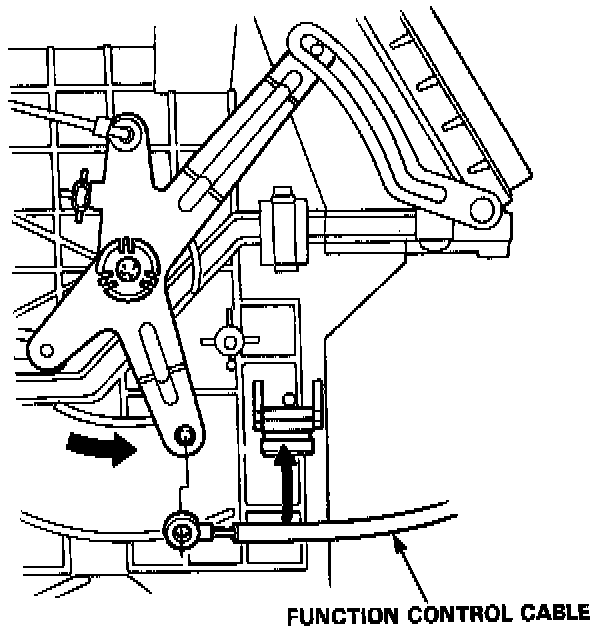

FUNCTION CONTROL CABLE ADJUSTMENT (LEVER TYPE ONLY)
1. Slide the function control lever to DEFROST.
2. Turn the function control arm to the front and connect the end of the cable to the arm.
3. Gently slide the cable housing back from the end enough to take up any slack in the cable, but not enough to make the function control lever move, then snap it in the clamp.
