Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Wagon >> With Keyless Entry >> Ex Model >> Part 1 of 2

Part 1 of 2

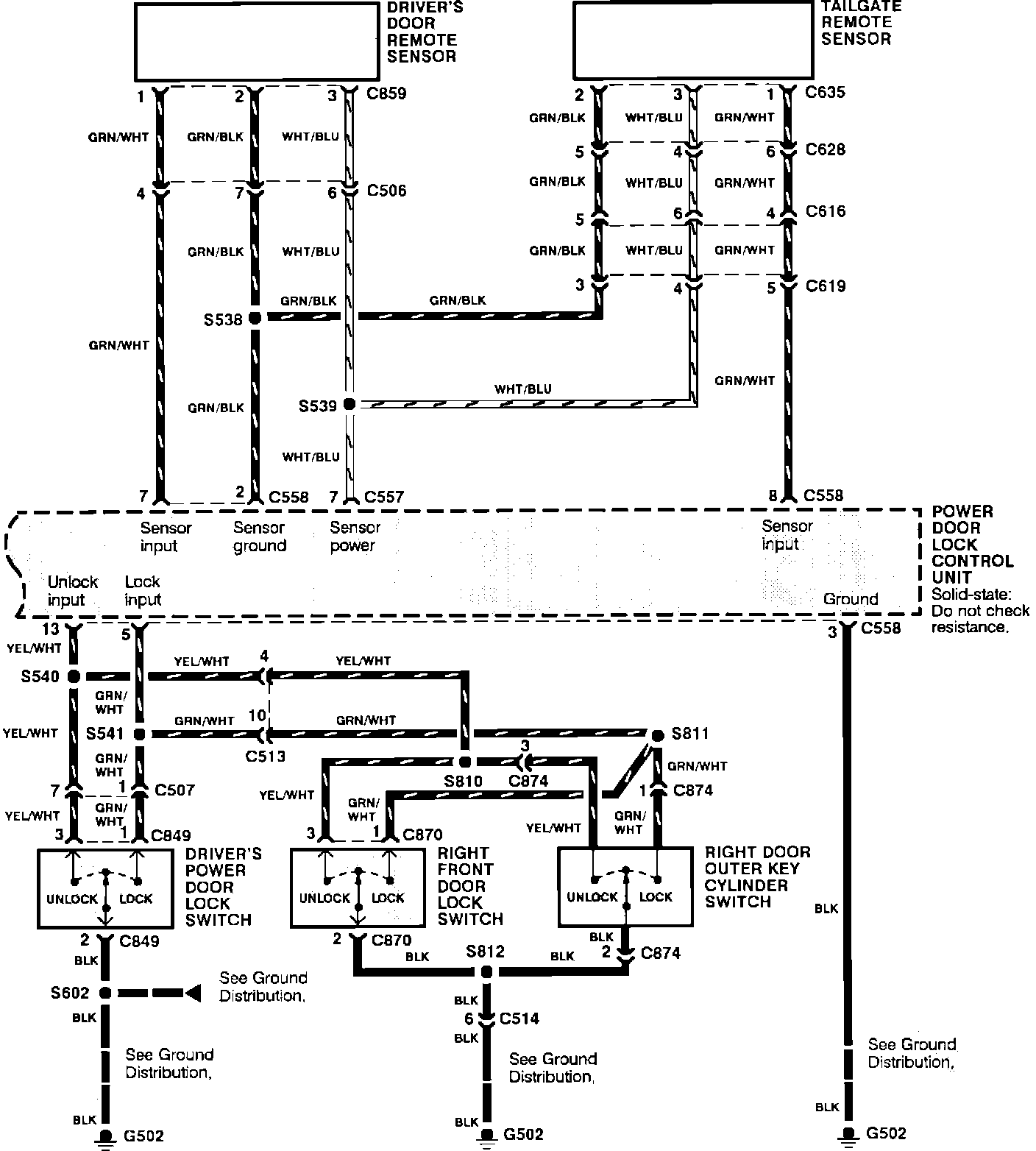

Keyless Entry (EX Wagon):

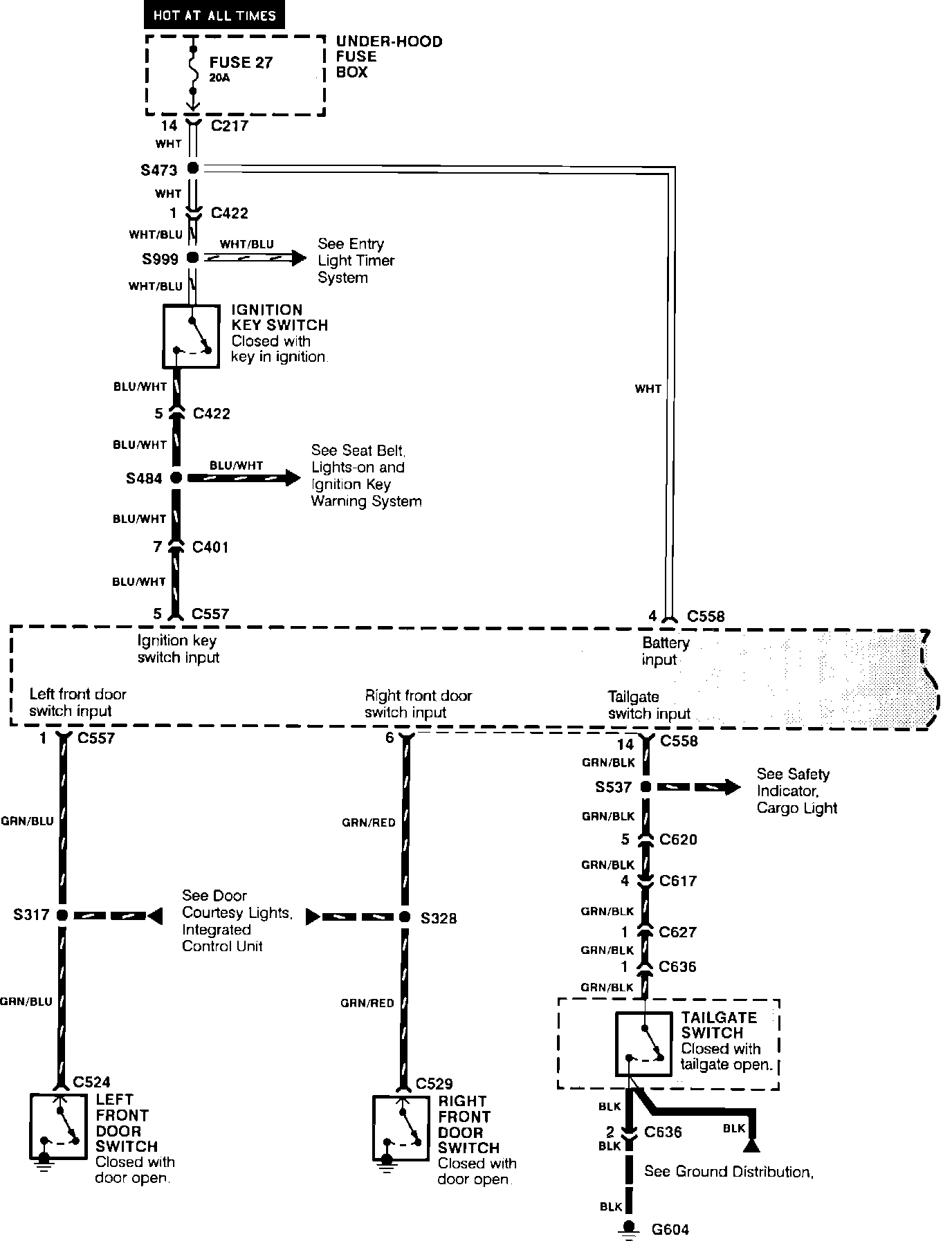

Keyless Entry (EX Wagon):
