Curiosii for ever!: Car repair manuals for everyone.

Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Engine Mount

Engine Mount

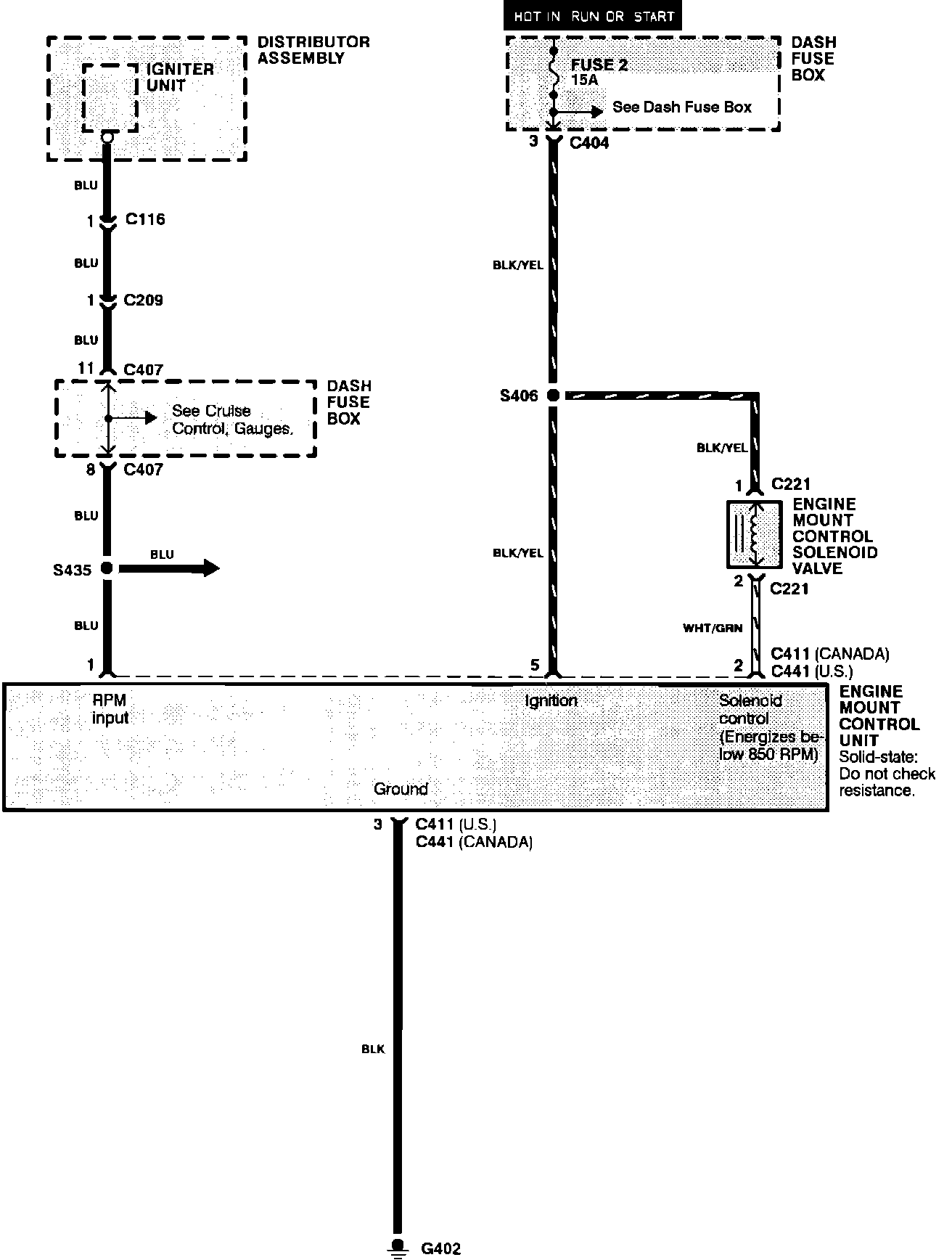

Circuit Diagram:

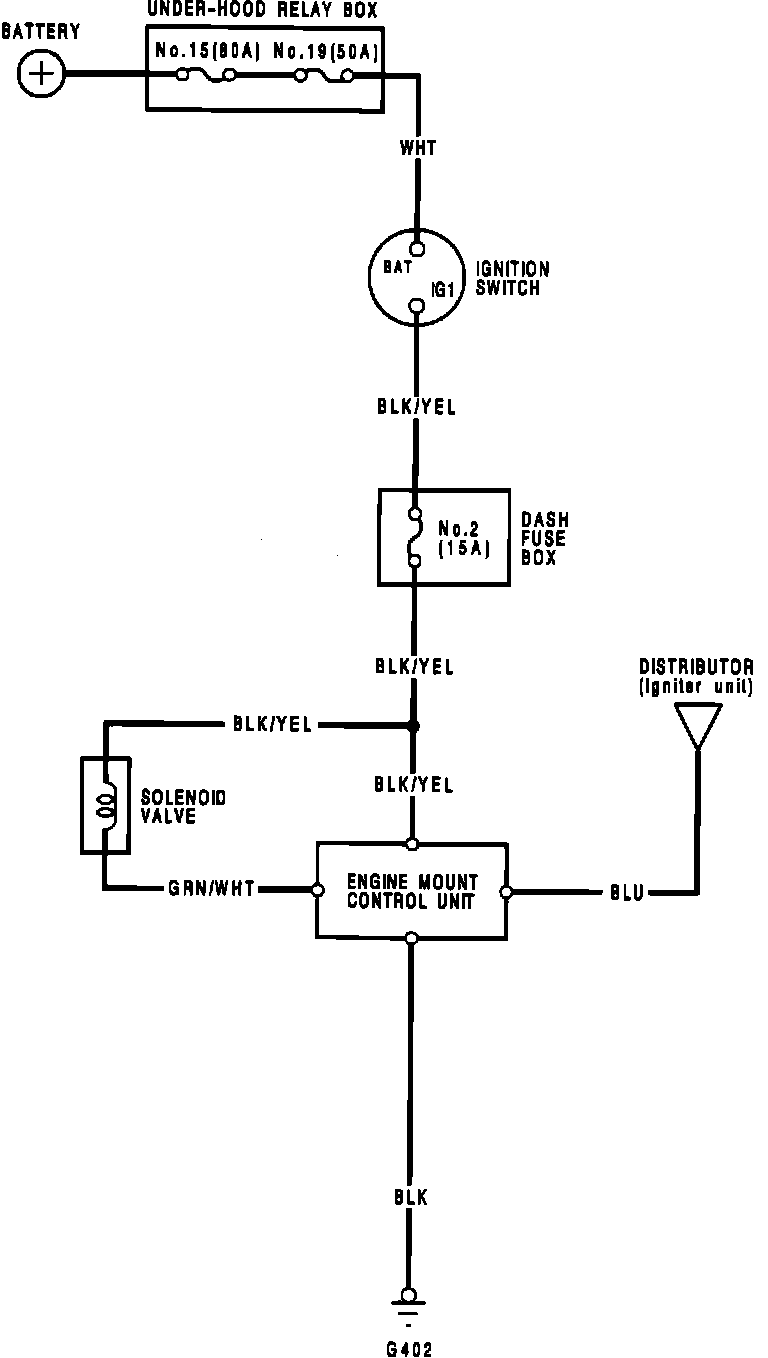

Engine Mount Control System:
