Wiring Schematics

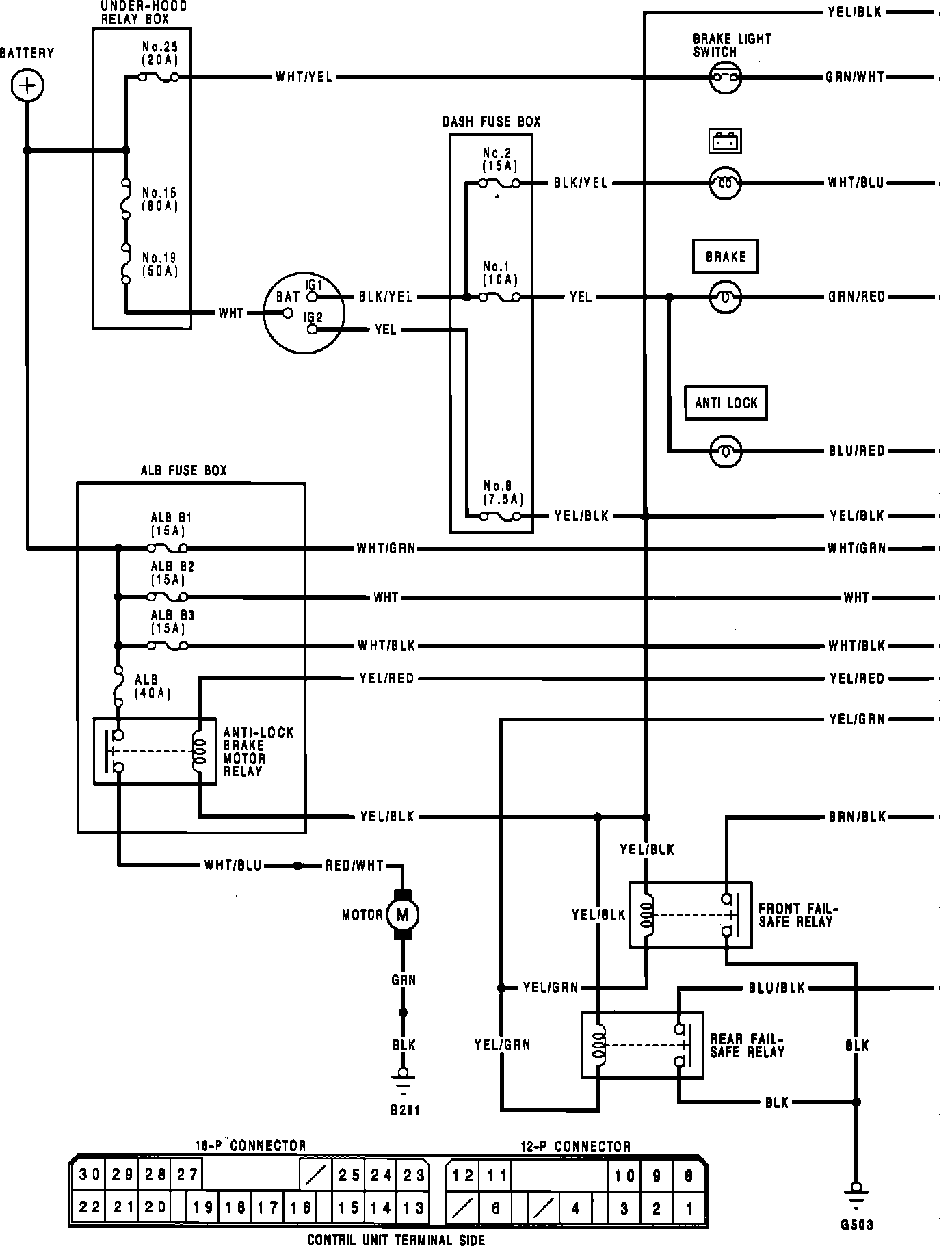

Fig 15. ABS Wiring Circuit. 1991 Accord (Part 1 Of 2):

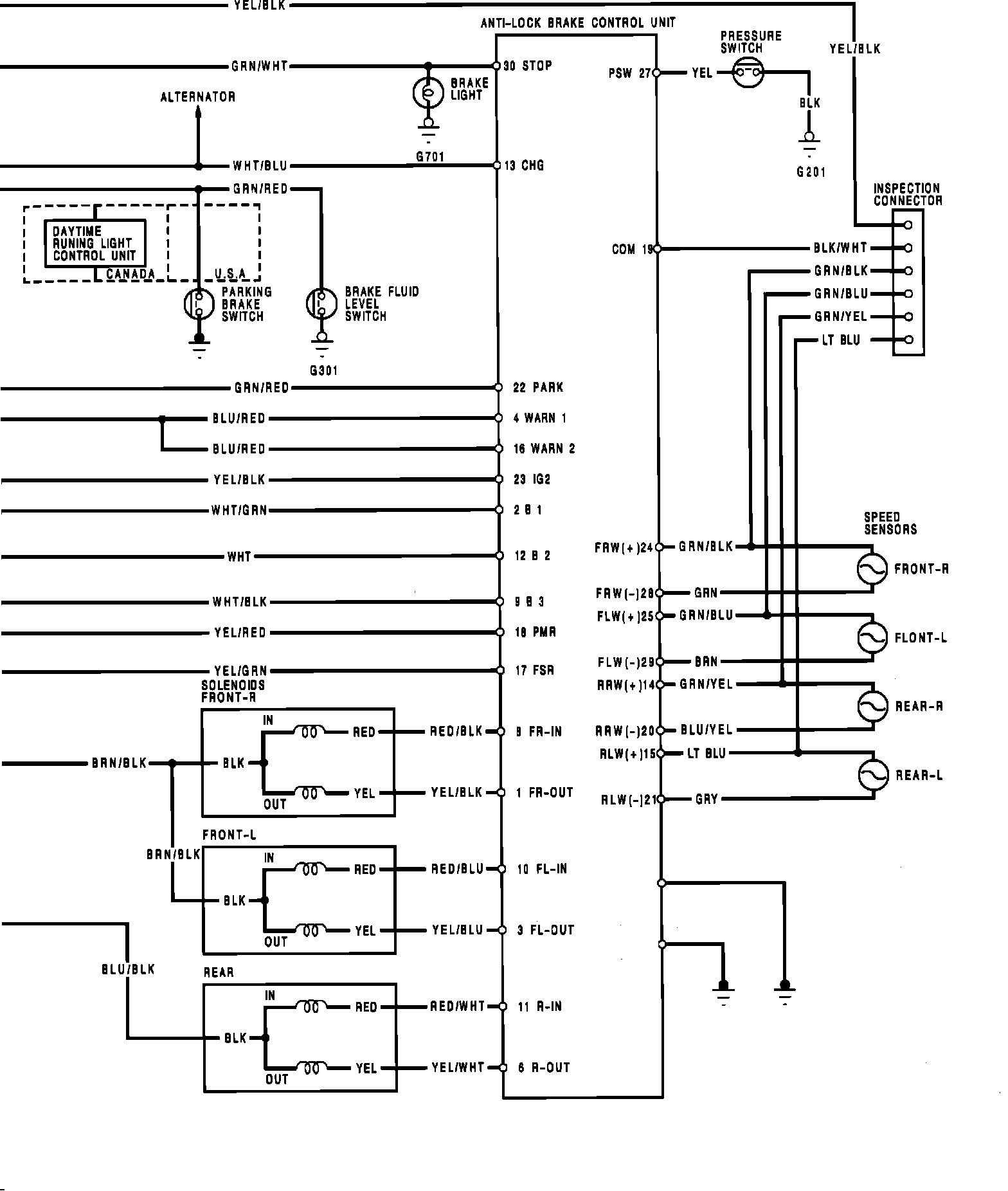

Fig 15. ABS Wiring Circuit. 1991 Accord (Part 2 Of 2):
