Wiring Diagrams

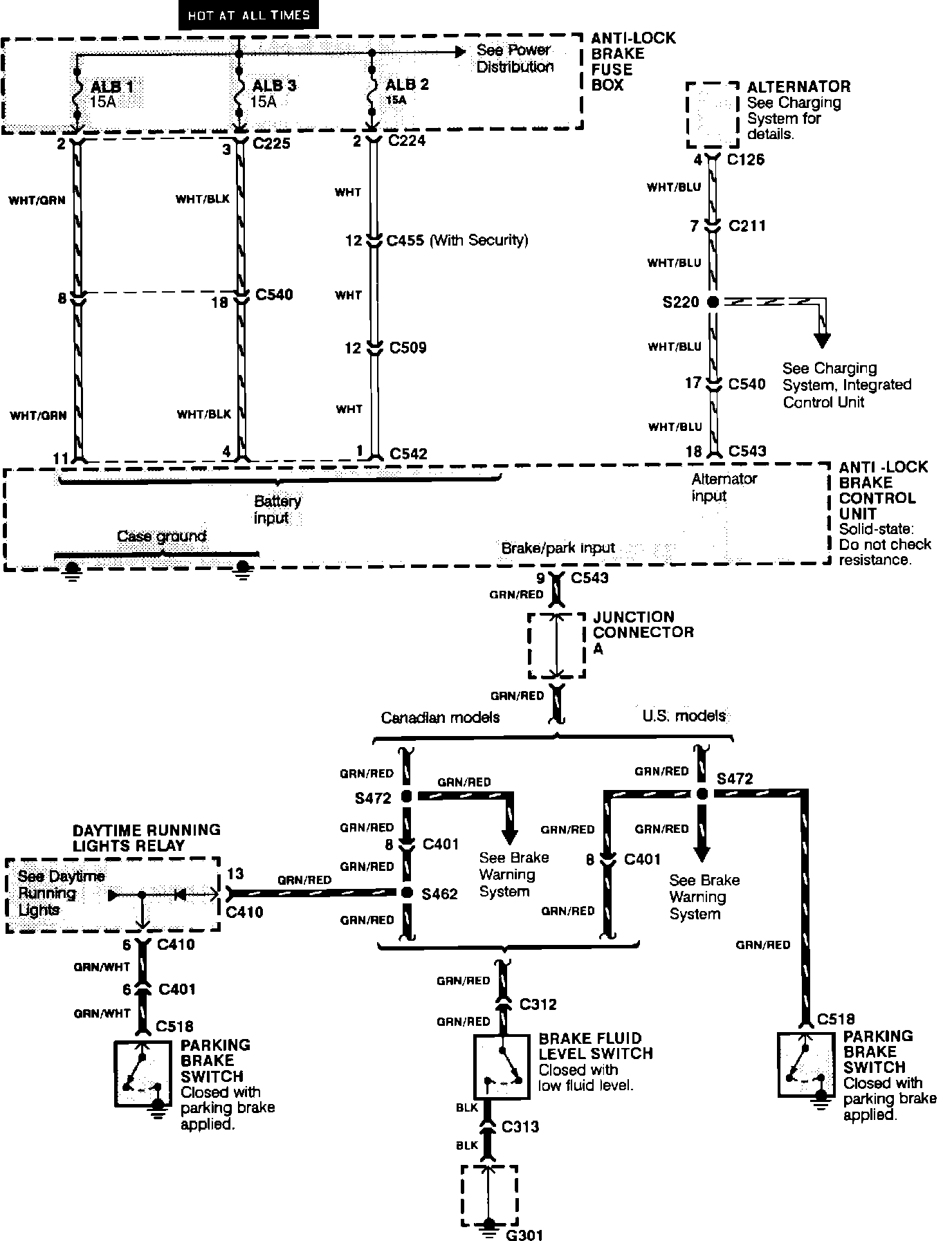

Power Distribution:
� H;Anti-Lock Brake System (ABS):

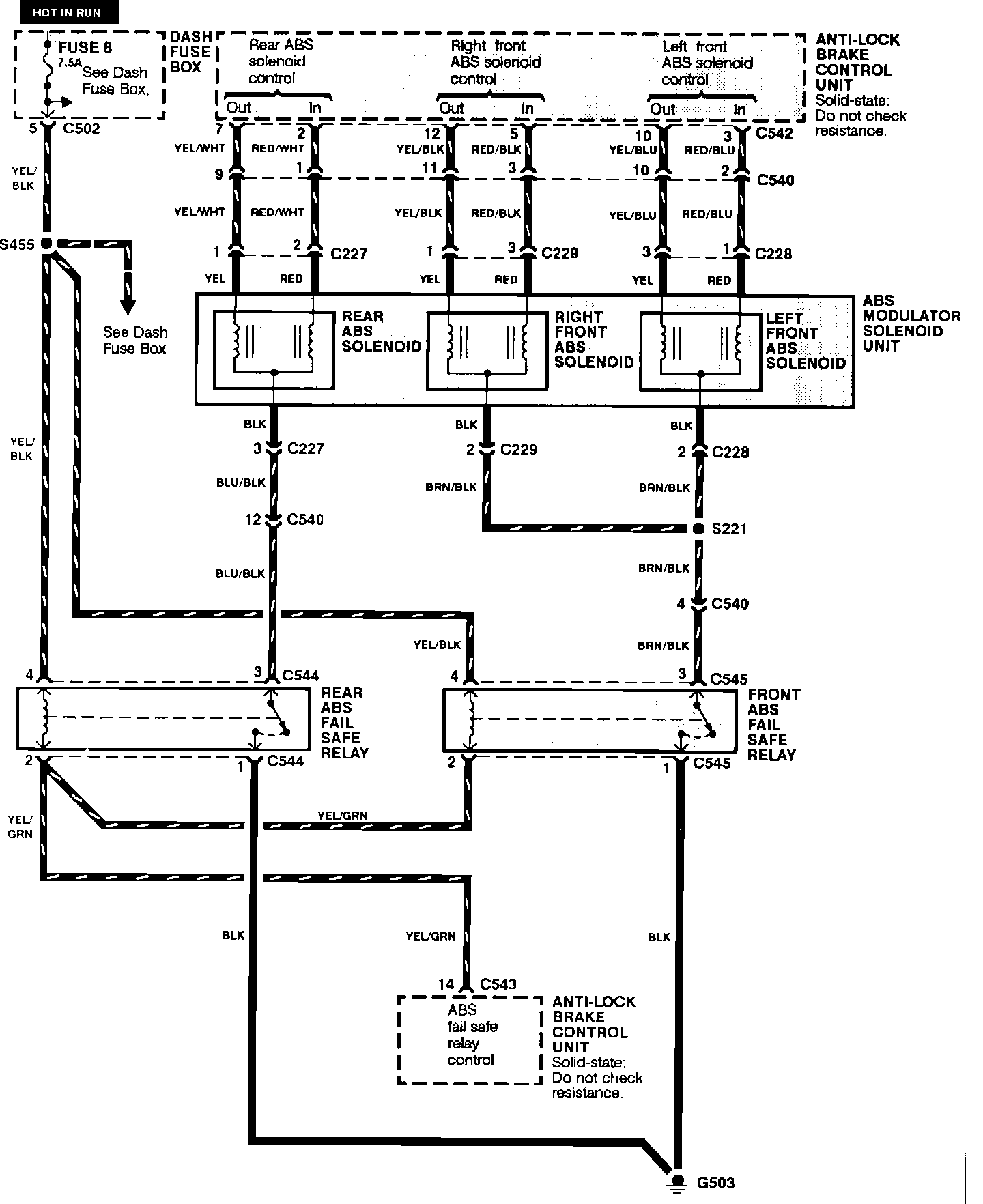

Anti-Lock Brake System (ABS):

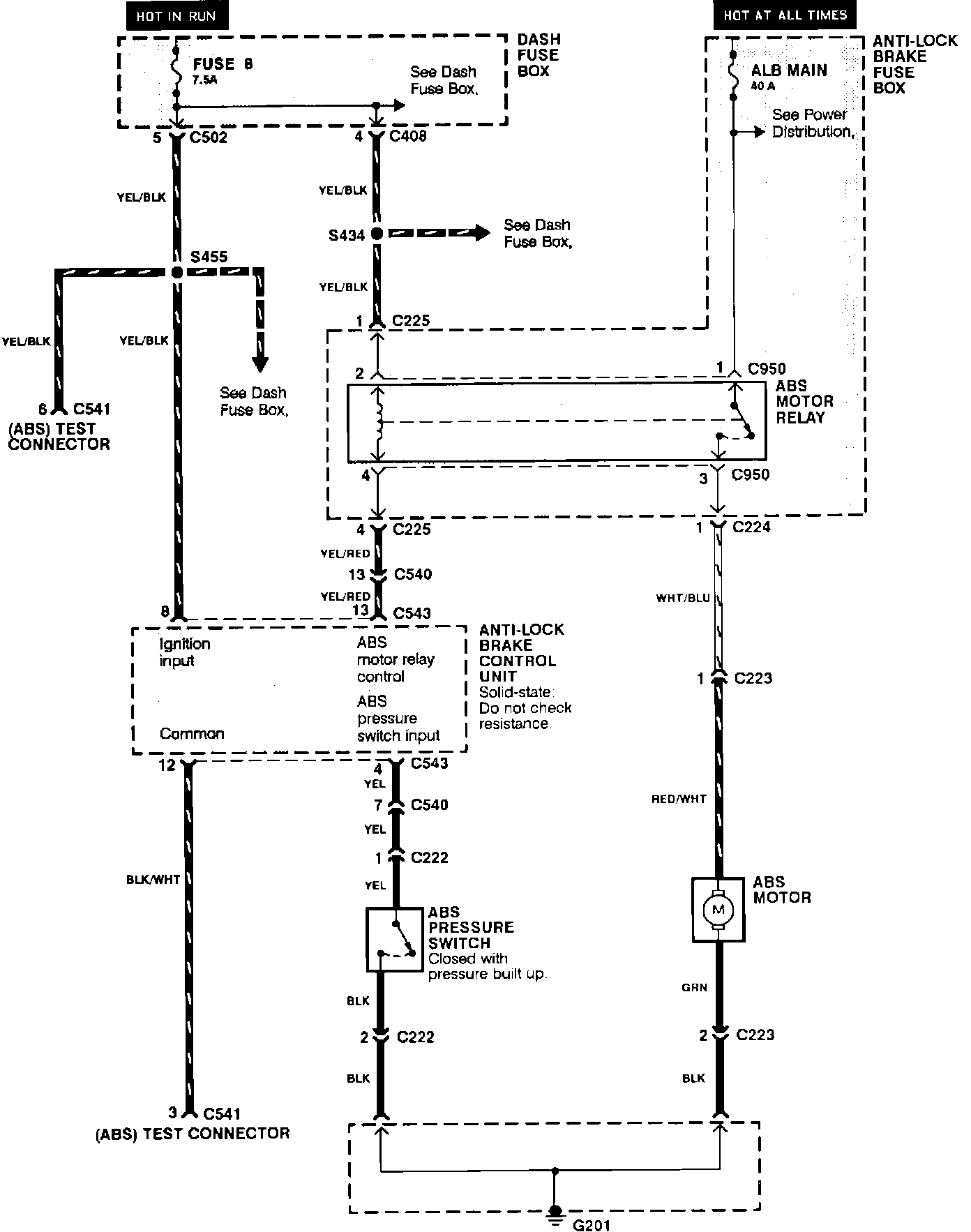

Anti-Lock Brake System (ABS):
Anti-Lock Brake System (ABS):
