Rear

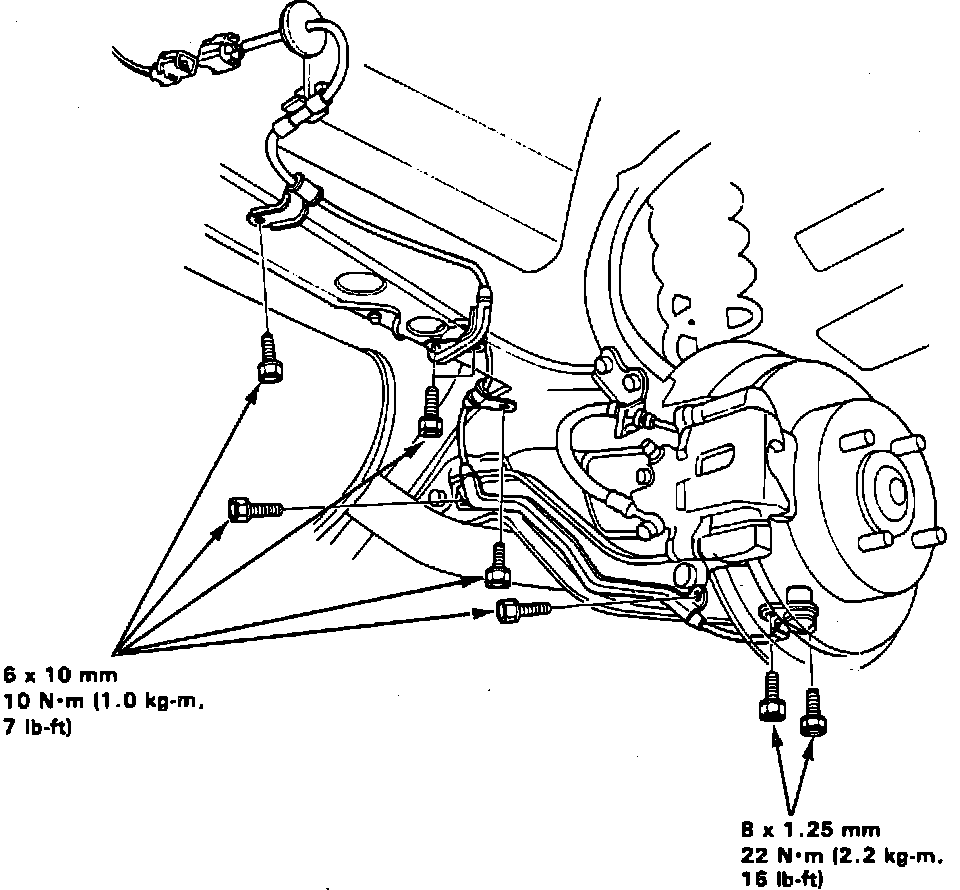

Fig. 104 Replacing Rear Speed Sensor.:





Refer to Fig. 104 when replacing rear speed sensor.
