Front Bumper: Service and Repair

Bumpers
Front Replacement

CAUTION: Wear gloves to remove and install the bumper.

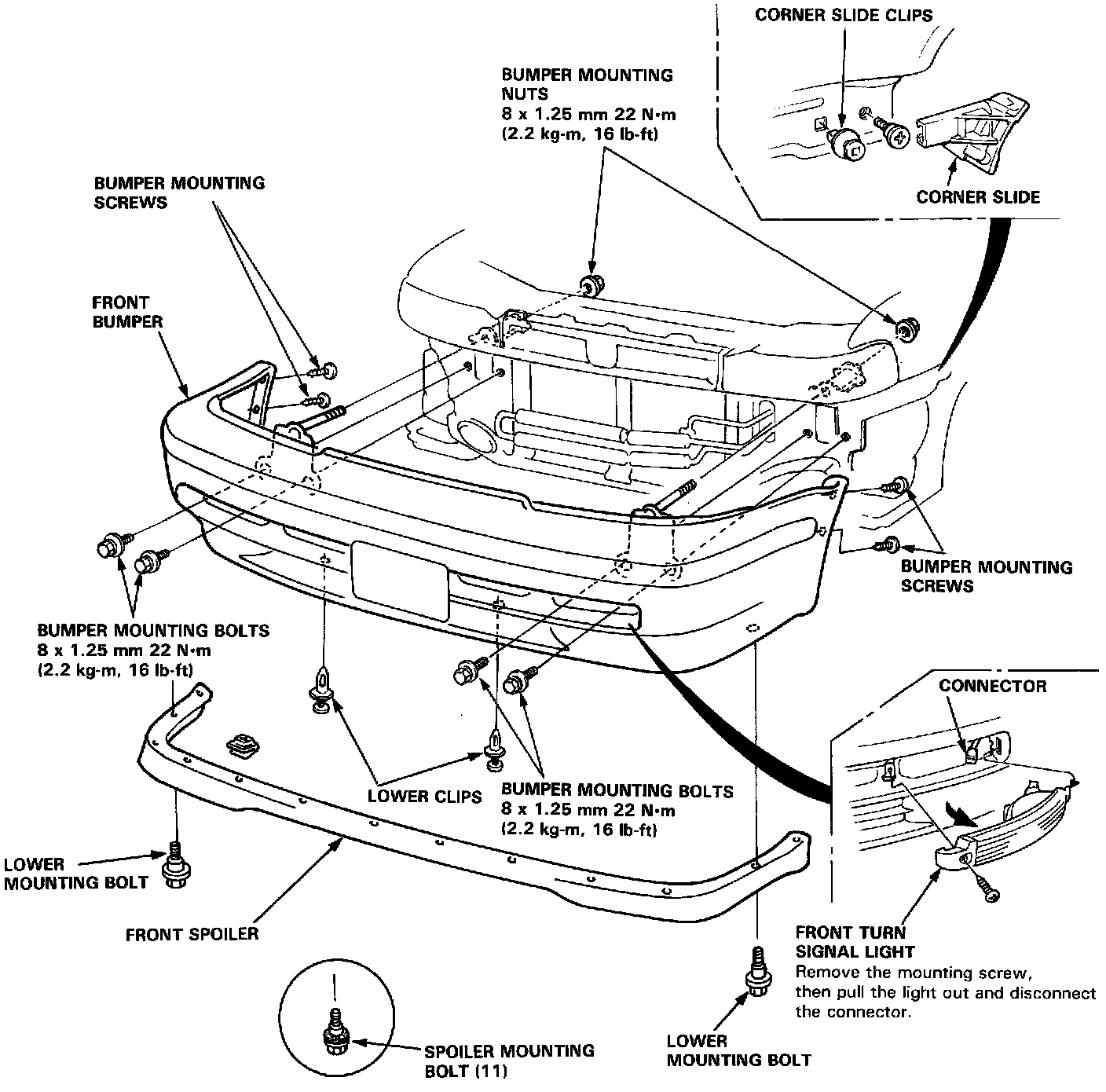

1. Open the hood, then remove the bumper mounting nuts.
2. Remove the right and left front turn signal lights.
3. Remove the two bumper mounting screws on each side at the corner edge of the bumper.
4. Remove the two lower clips, the lower mounting bolts on each side and the four bumper mounting bolts.
5. Remove the bumper by sliding it forward.

NOTE: Take care not to scratch the bumper.

6. Installation is the reverse of the removal procedure.
