Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 7-4

DTC 7-4

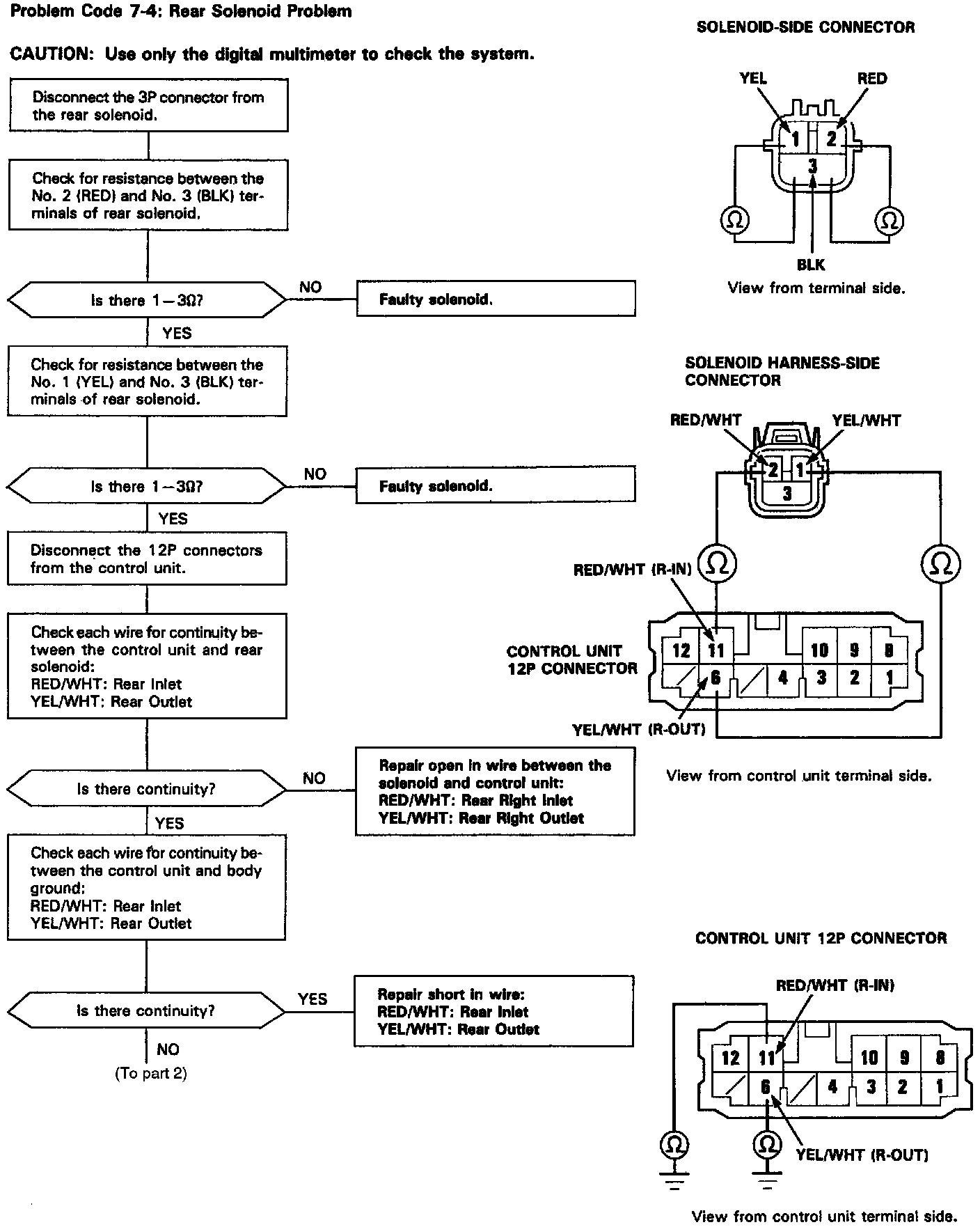

Fig. 52 Code 7-4 (Rear Solenoid Problem, Part 1 Of 2):

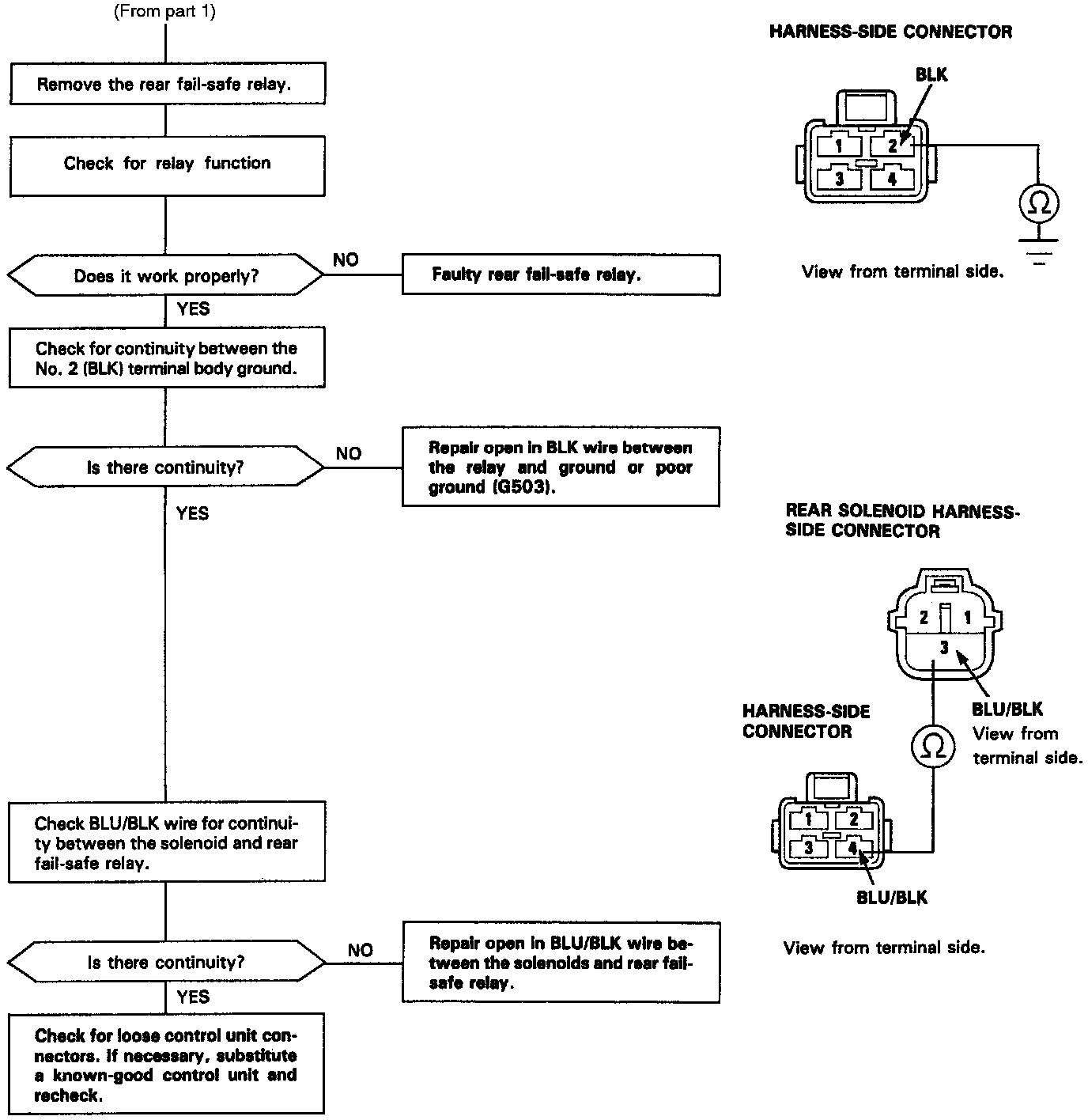

Fig. 52 Code 7-4 (Rear Solenoid Problem, Part 2 Of 2):
