A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 6-4
DTC 6-4

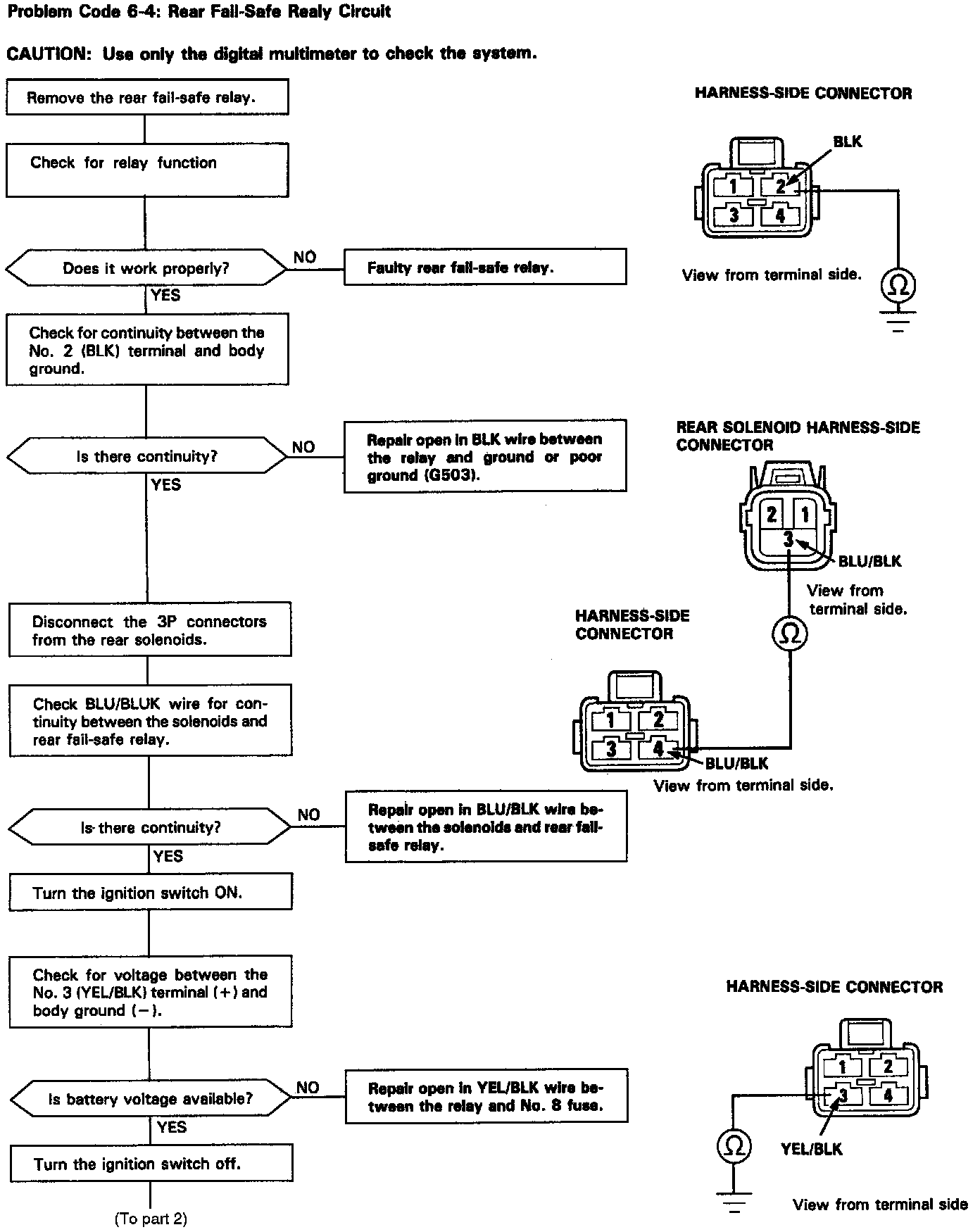

Fig. 50a Code 6-4 (Rear Fail Safe Relay Circuit. Part 1 Of 2).:

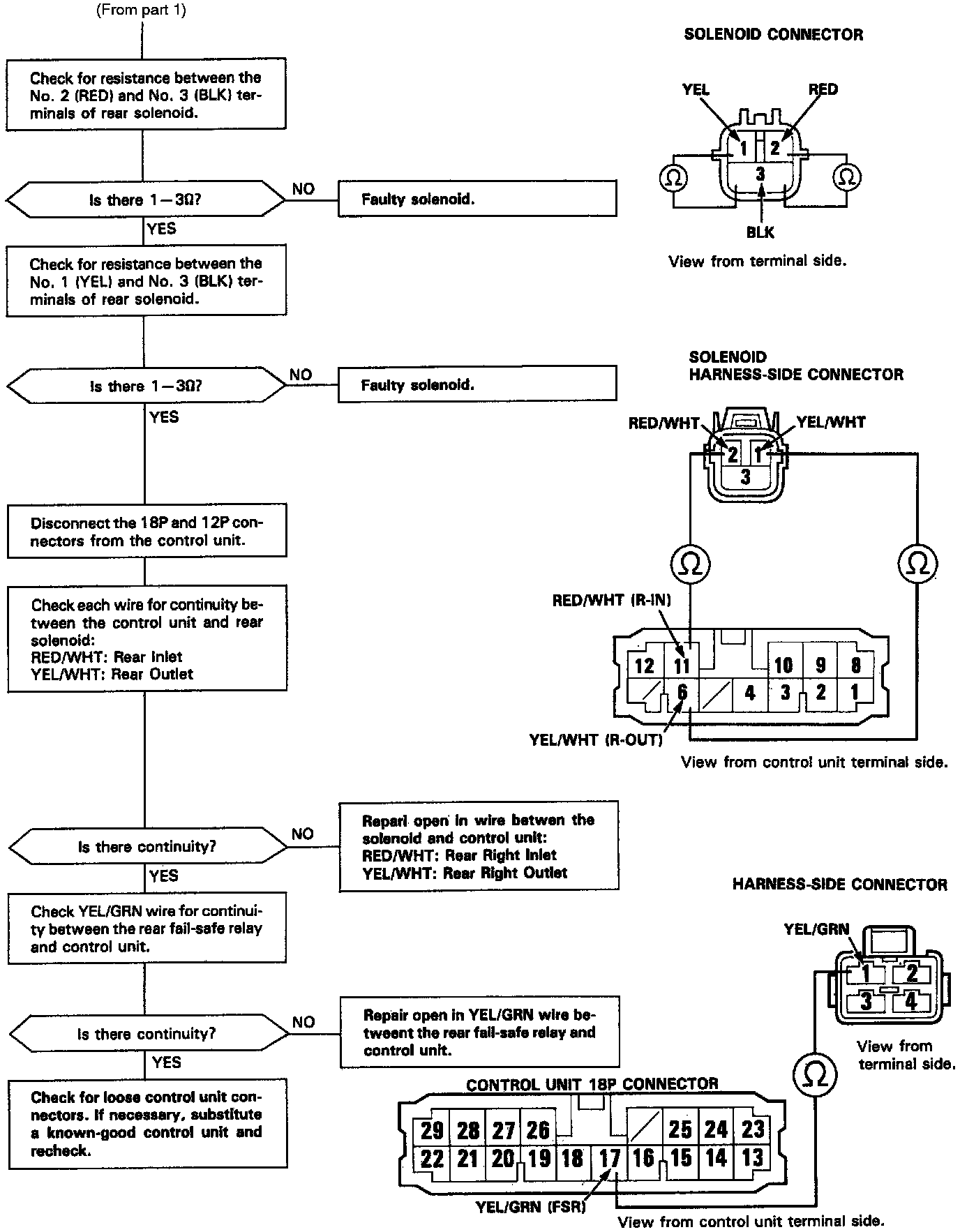

Fig. 50b Code 6-4 (Rear Fail Safe Relay Circuit. Part 2 Of 2).:
