DTC List - Transmission Control Systems

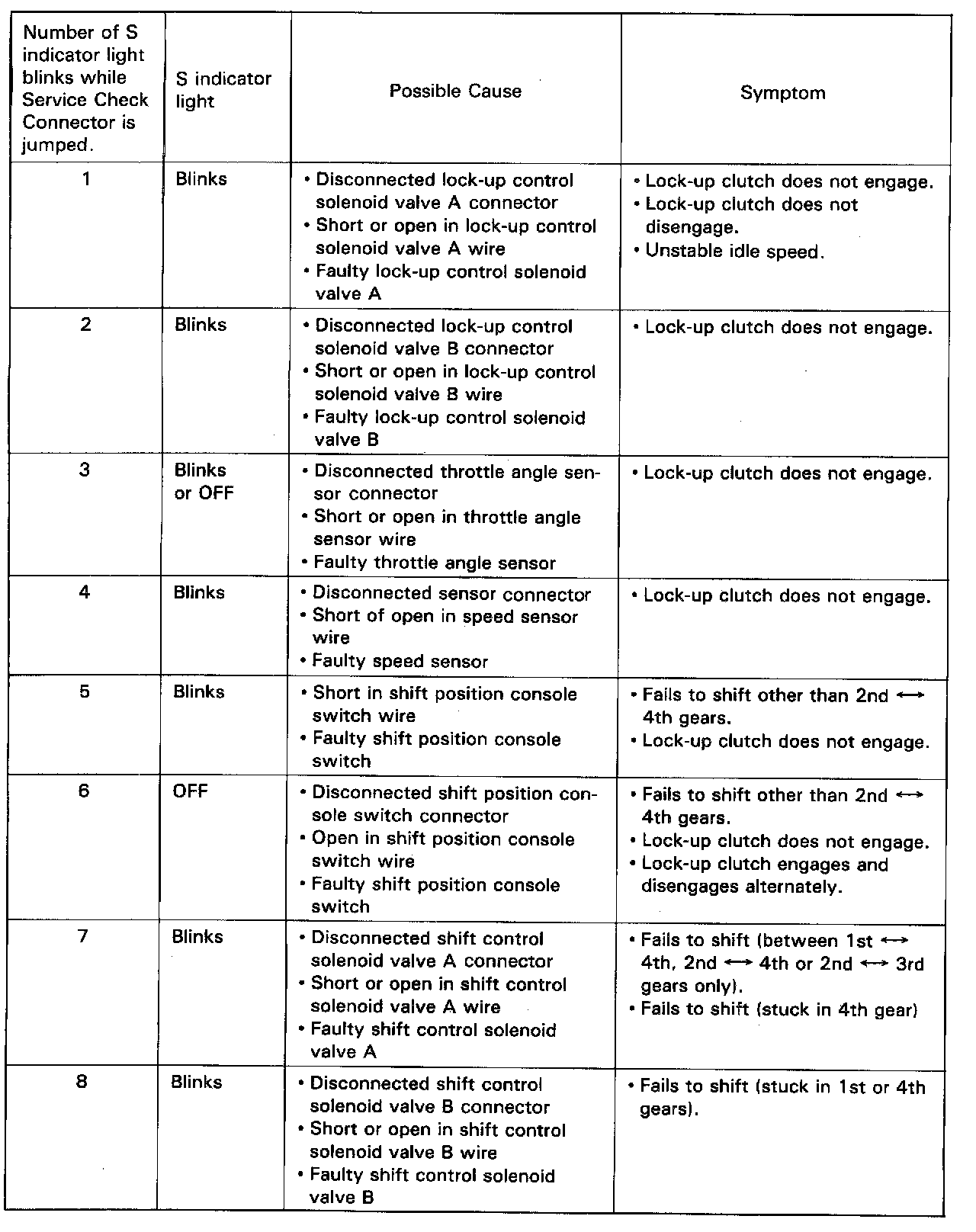

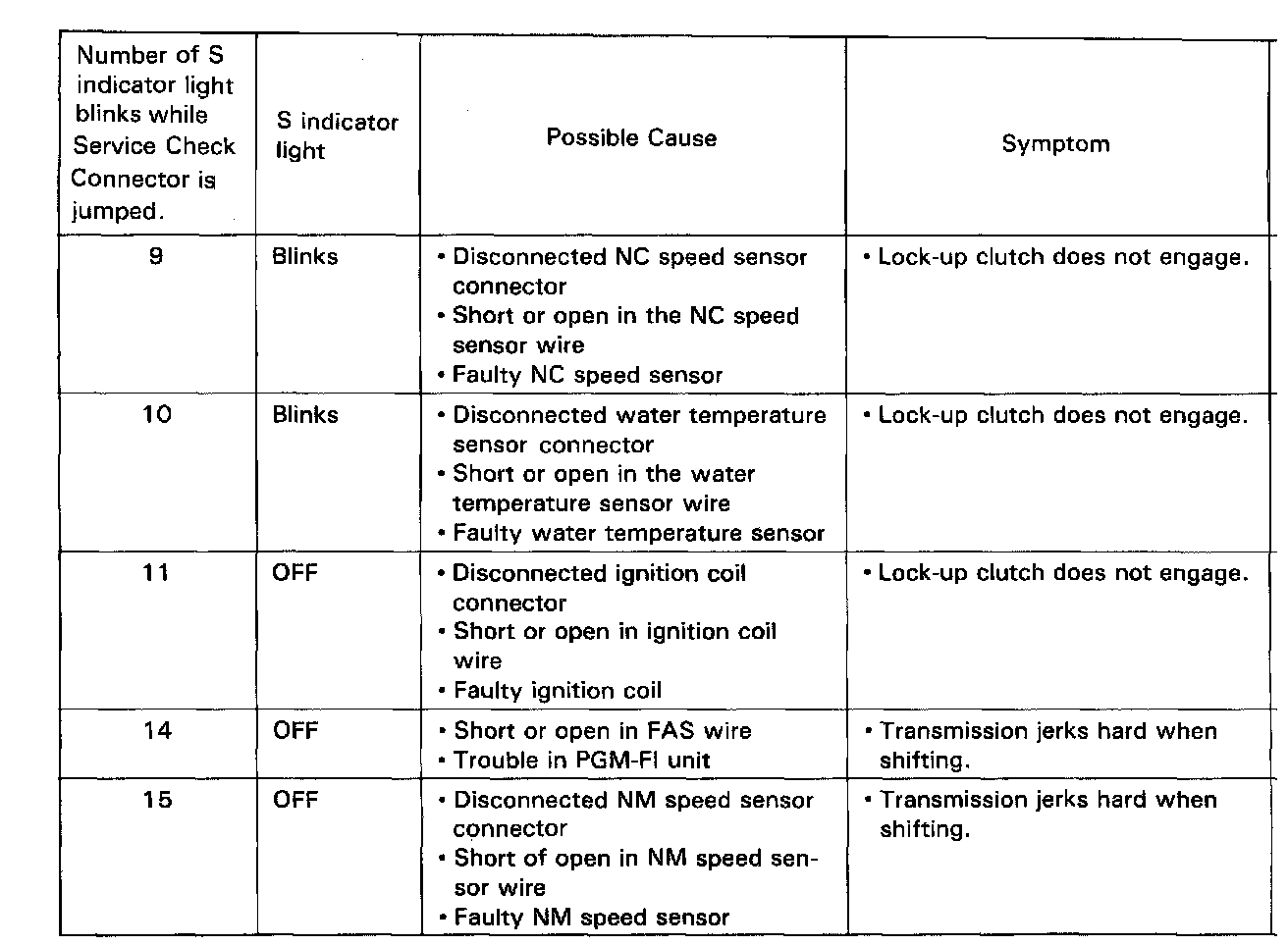

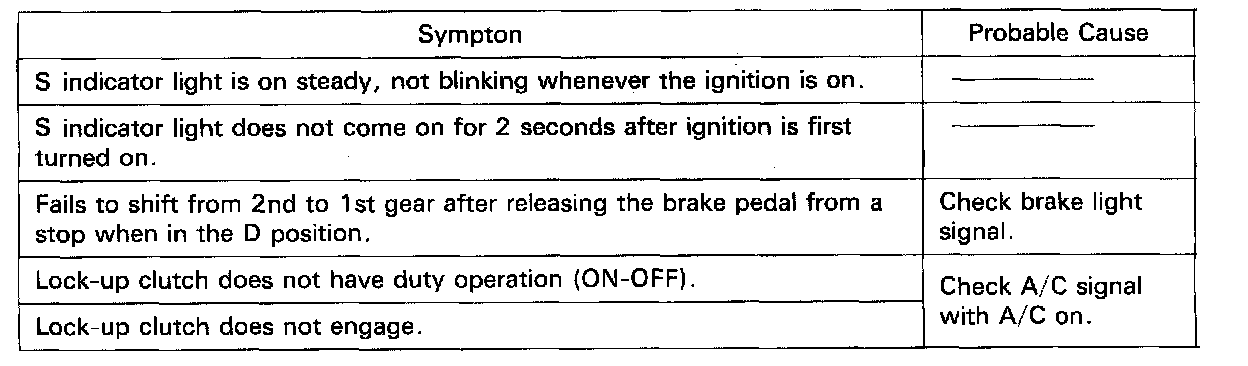

If the self-diagnosis S indicator light does not blink, perform an inspection according to the table listed below.





- If a customer describes the symptoms for codes 3, 6, or 11, yet the LED is not blinking, it will be necessary to recreate the symptom by test driving, and then checking the LED with the ignition still ON.
- If the LED displays codes other than those listed above or stays lit continuously, the control unit is faulty.
- Sometimes the S indicator light and the Check Engine light may come on simultaneously. If so, check the PGM-FI system according to the number of blinks on the PGM-FI ECU self-diagnosing indicator, then reset the memory by removing the Back Up fuse in the under hood relay box for more than 10 seconds. Drive the vehicle for several minutes at speed over 30 mph (50 km/h), then recheck the lights.

NOTE: Disconnecting the Back up fuse also cancels the radio preset stations and the clock setting. Make note of the radio presets before removing the fuse so you can reset them.
