Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

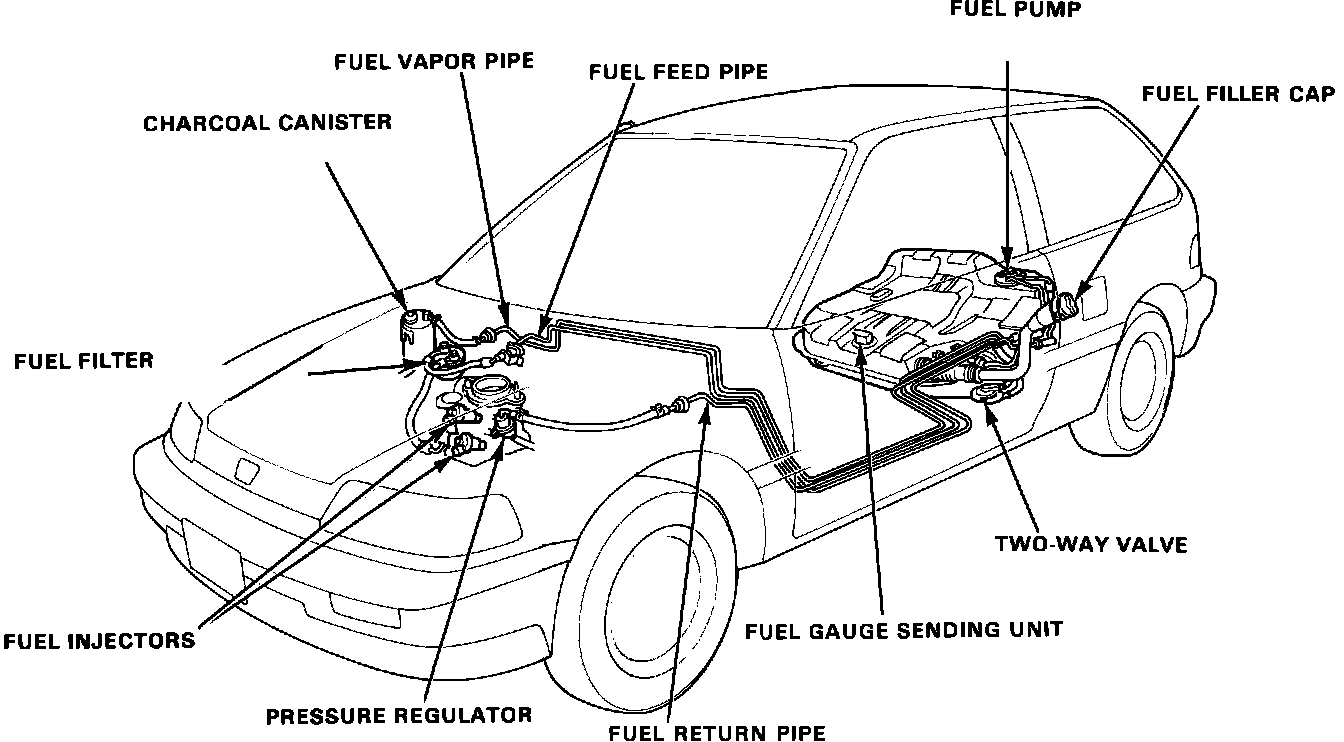

Fuel System Components and Hose Routing
Fuel System Components and Hose Routing
