Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
>>
Hatchback/Sedan
Hatchback/Sedan
Starting System. Wiring Circuit:

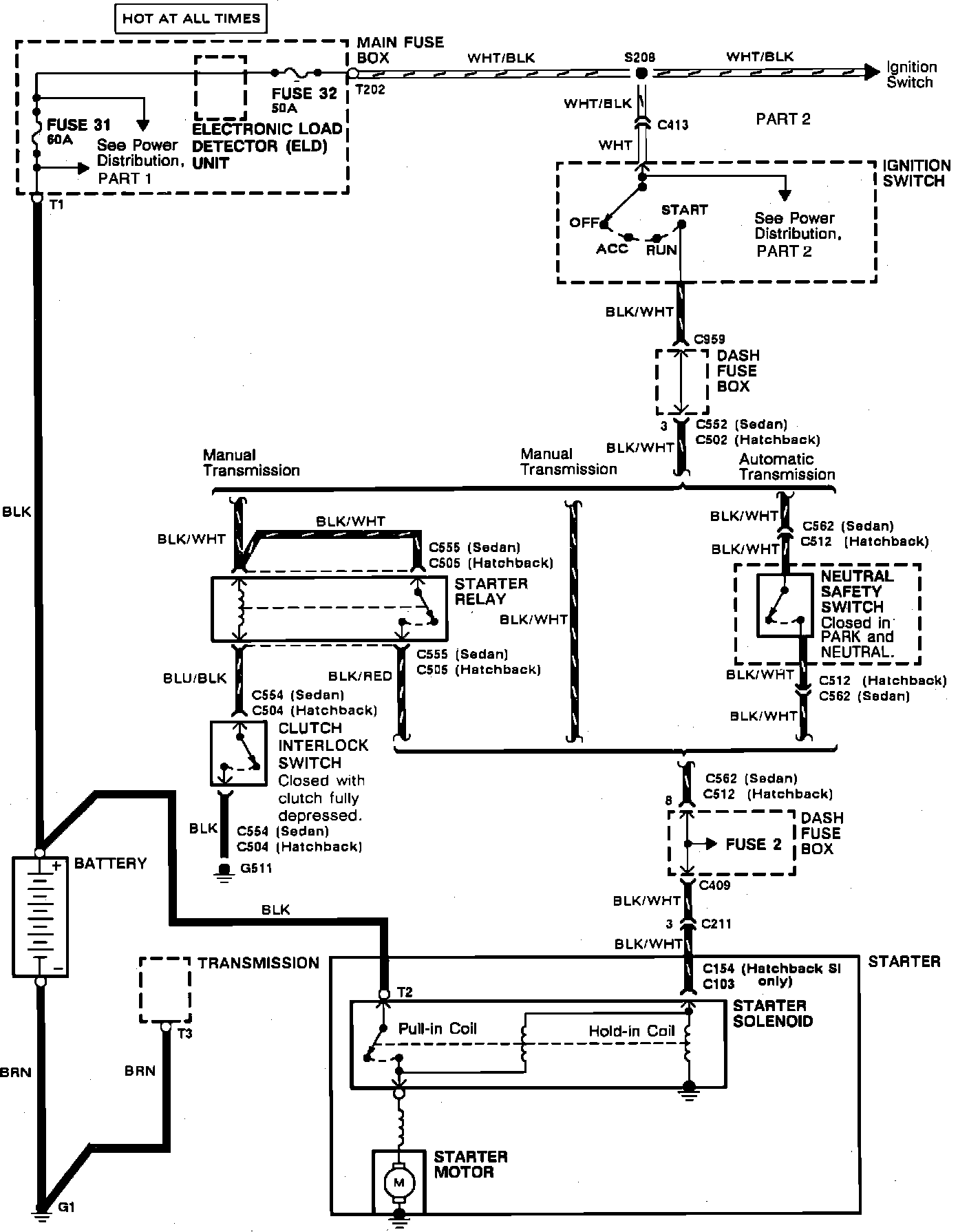

Starting System. Wiring Circuit:
