Home >> Honda >> 1989 >> Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module >> Wagon

Wagon

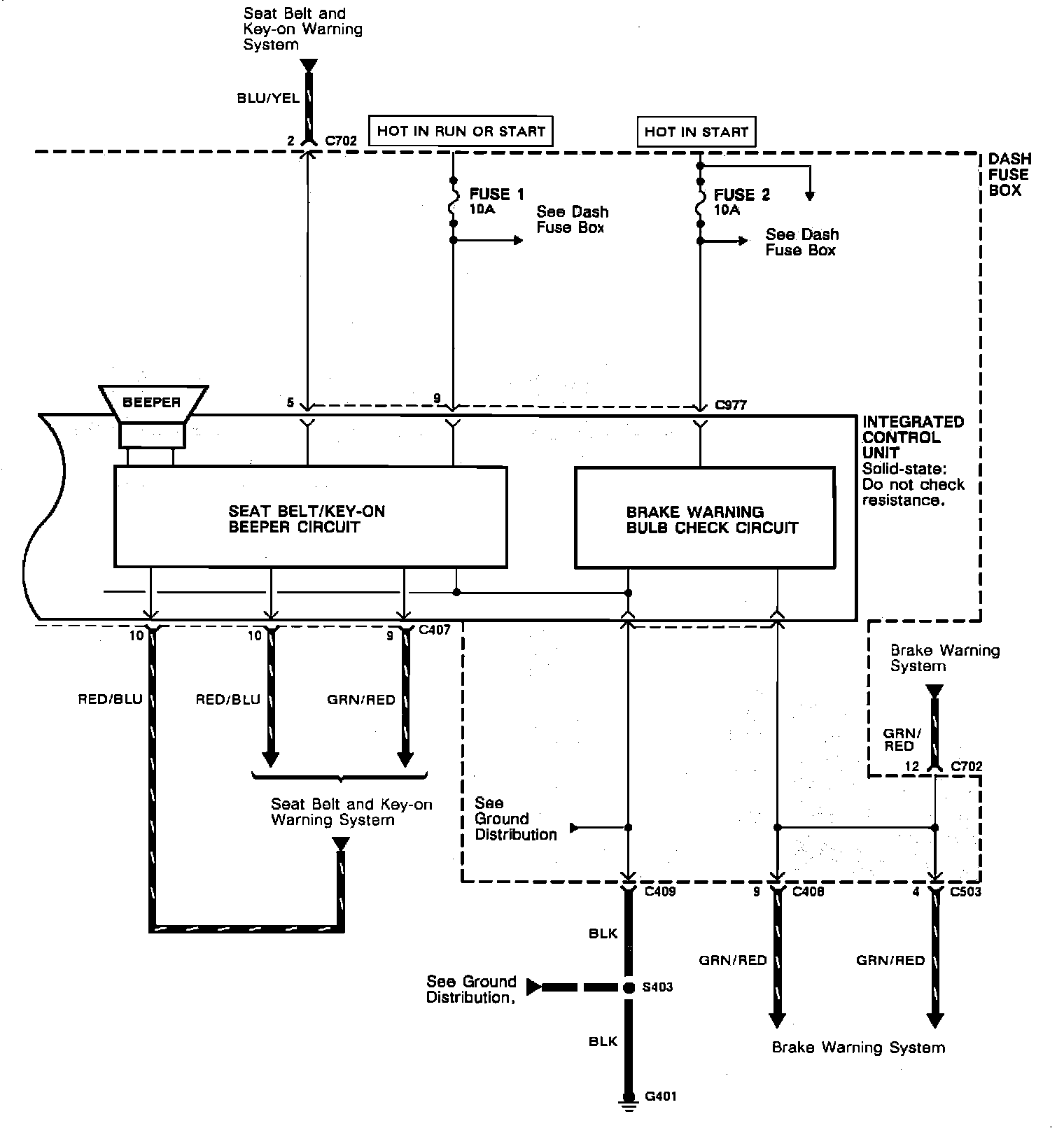

Integrated Control Unit - Part 1 of 2:

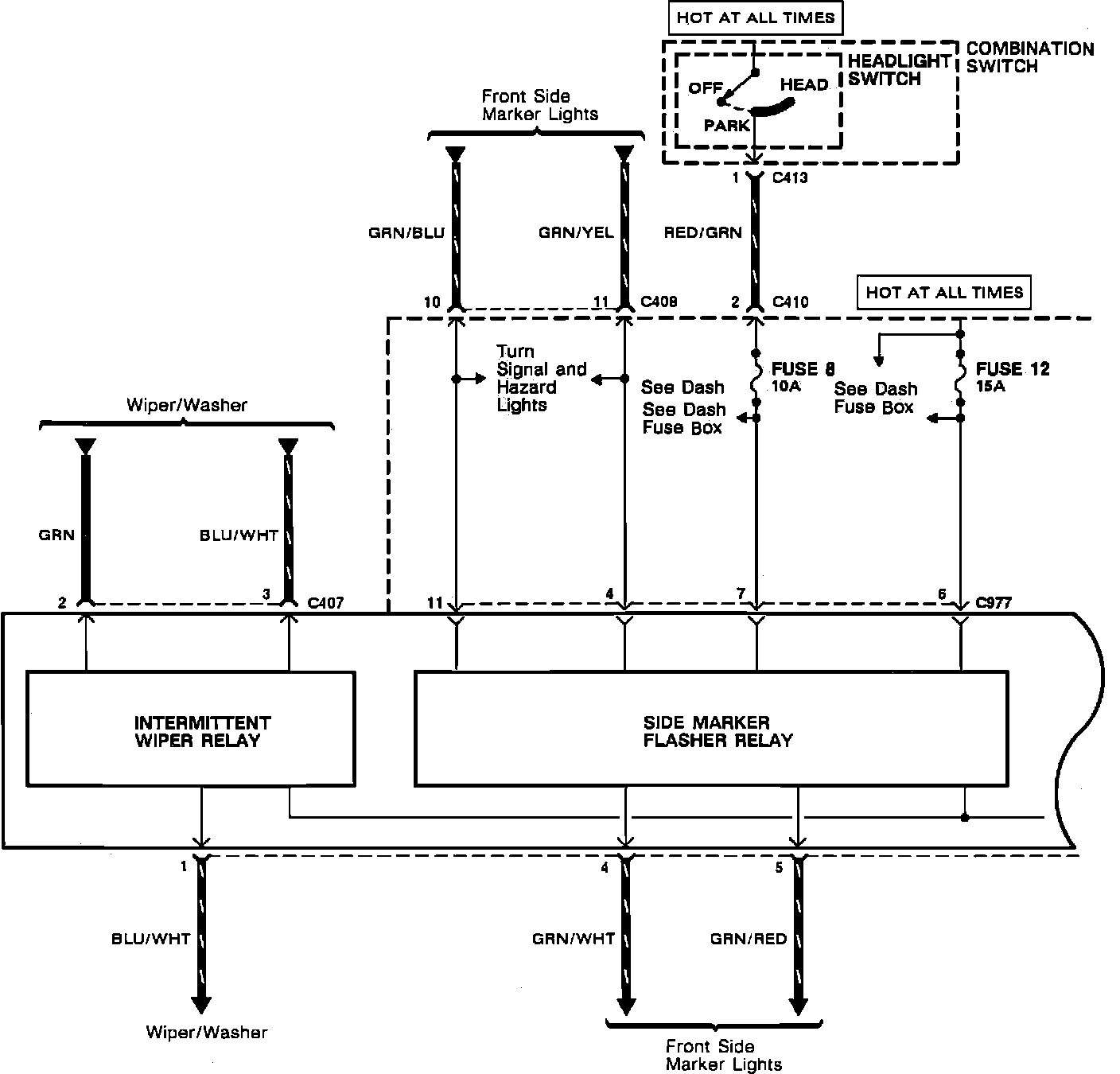

Integrated Control Unit - Part 2 of 2:
