Home >> Honda >> 1989 >> CRX Si L4-1590cc 1.6L SOHC (D16A6) MFI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Locations

Evaporative Emissions System: Locations

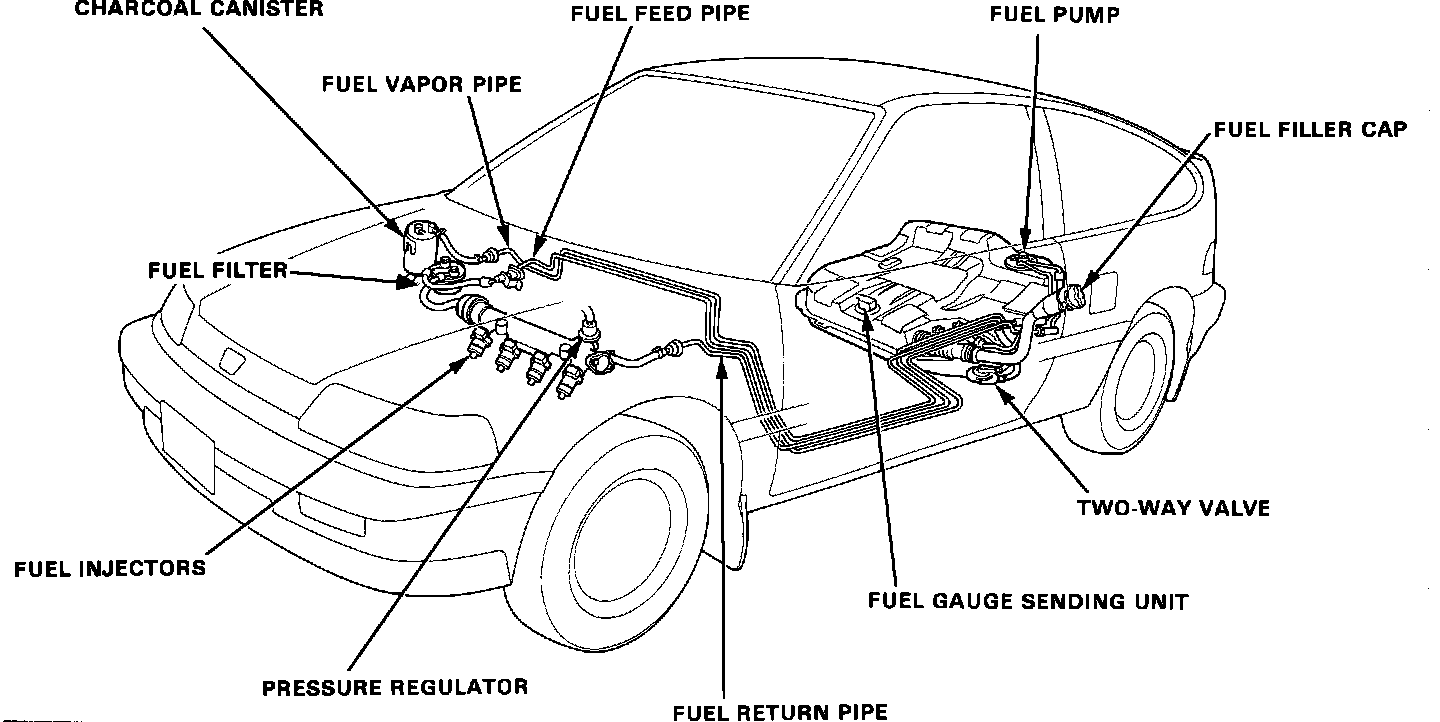

Fig. 15 Fuel And Vapor Line Routing(HF Si):





Si
