Home >> Honda >> 1989 >> CRX HF L4-1493cc 1.5L SOHC (D15B6) MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Locations

Condenser Fan Motor Relay: Locations

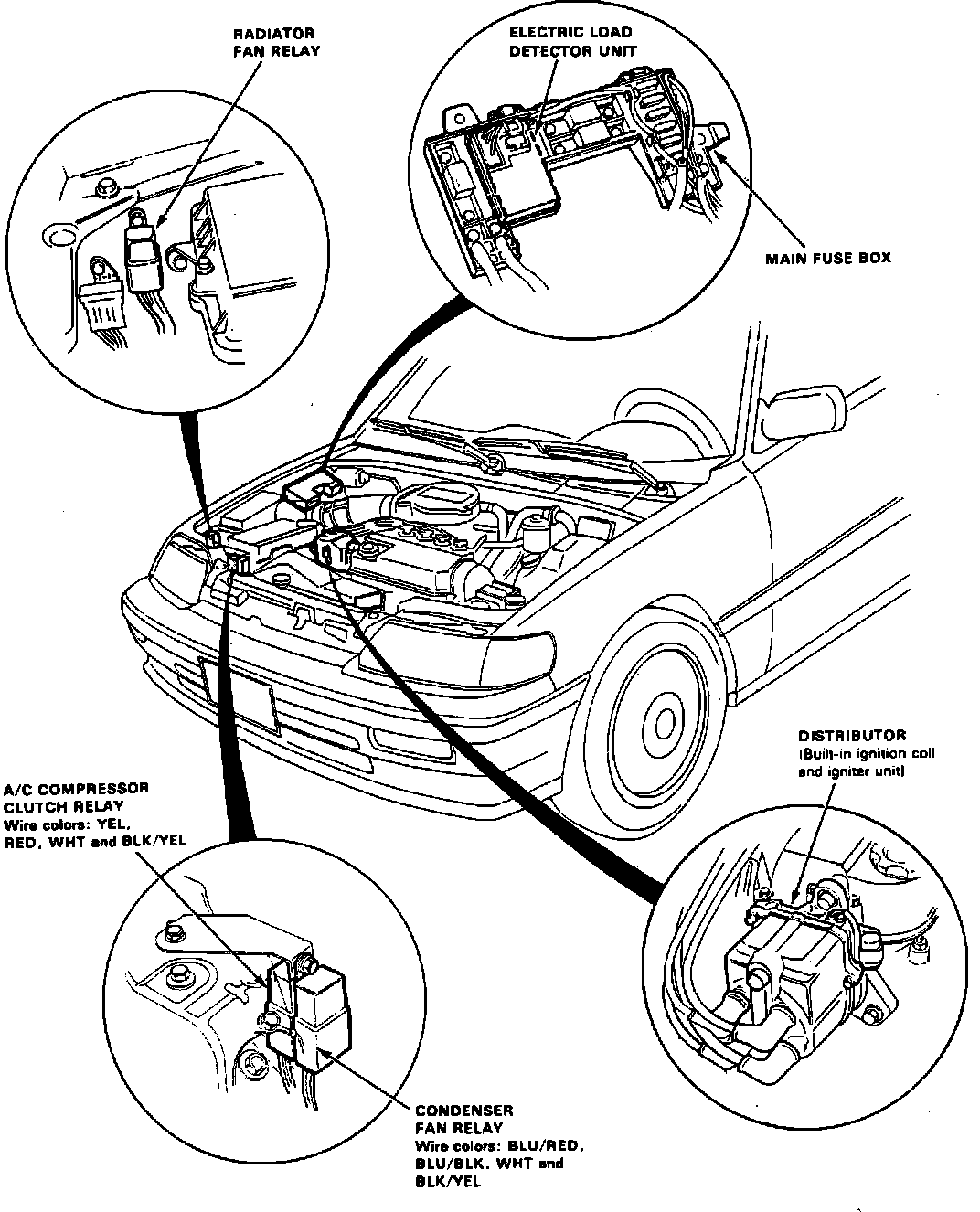

Cooling Fan Components:




Engine Compartment Components:




At RH Front Of Engine Compartment
