Interlock Clearance

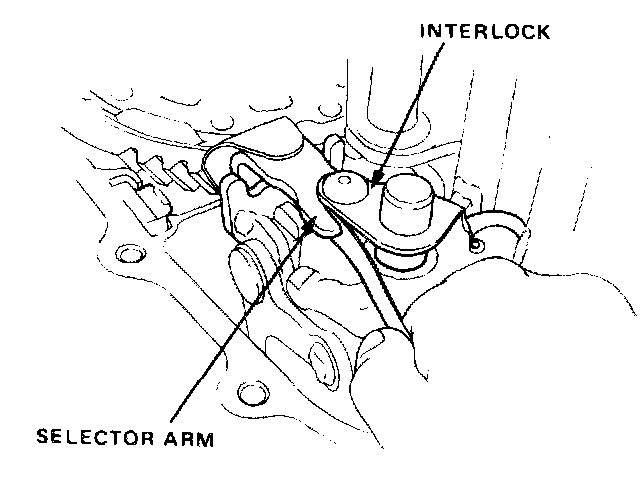

1. Check selector arm-to-interlock clearance.
Standard (New): 0.05-0.25 mm (0.002-0.010 in.)
Service Limit: 0.7 mm (0.03 in.)

2. If not within service limit, measure gap between selector arm fingers.
Standard (New): 10.05-10.15 mm (0.396-0.400 in.)




3. If gap is wider than standard, replace arm.
