Clearances

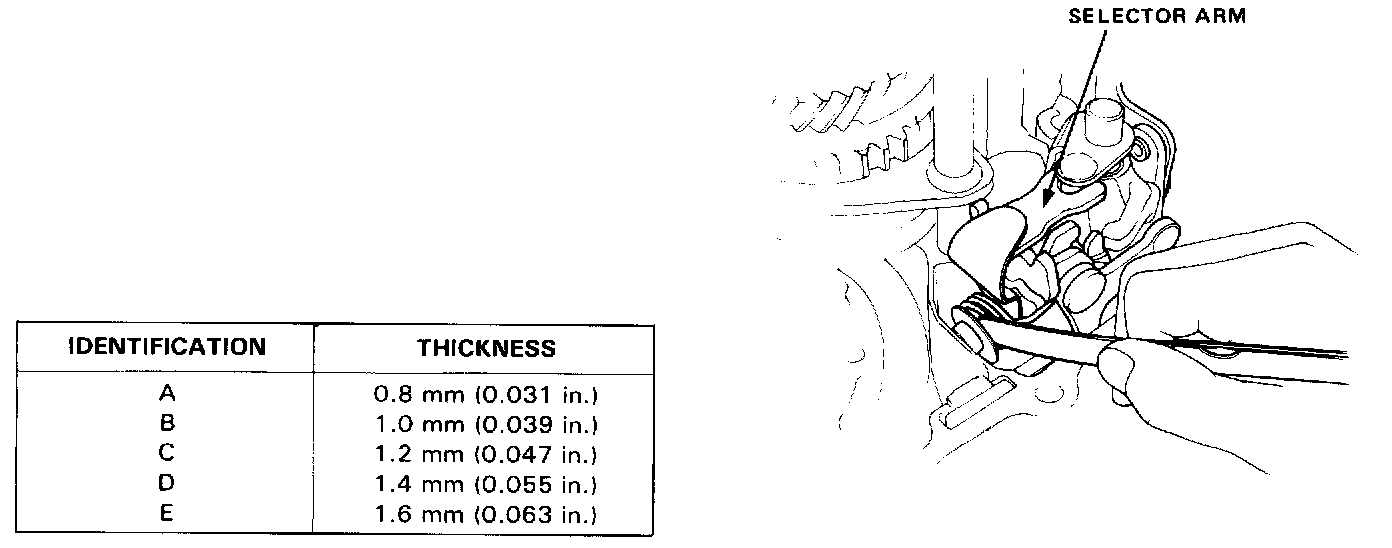

1. Measure clearance between collar and shim on shaft of selector arm as shown.
CLEARANCE
Standard (New): 0.01-0.20 mm (0.0004-0.0079 in.)

Collar-to-Selector Arm Shim Clearance:

2. If out of tolerance, select a new shim from table.
