Mainshaft Assembly

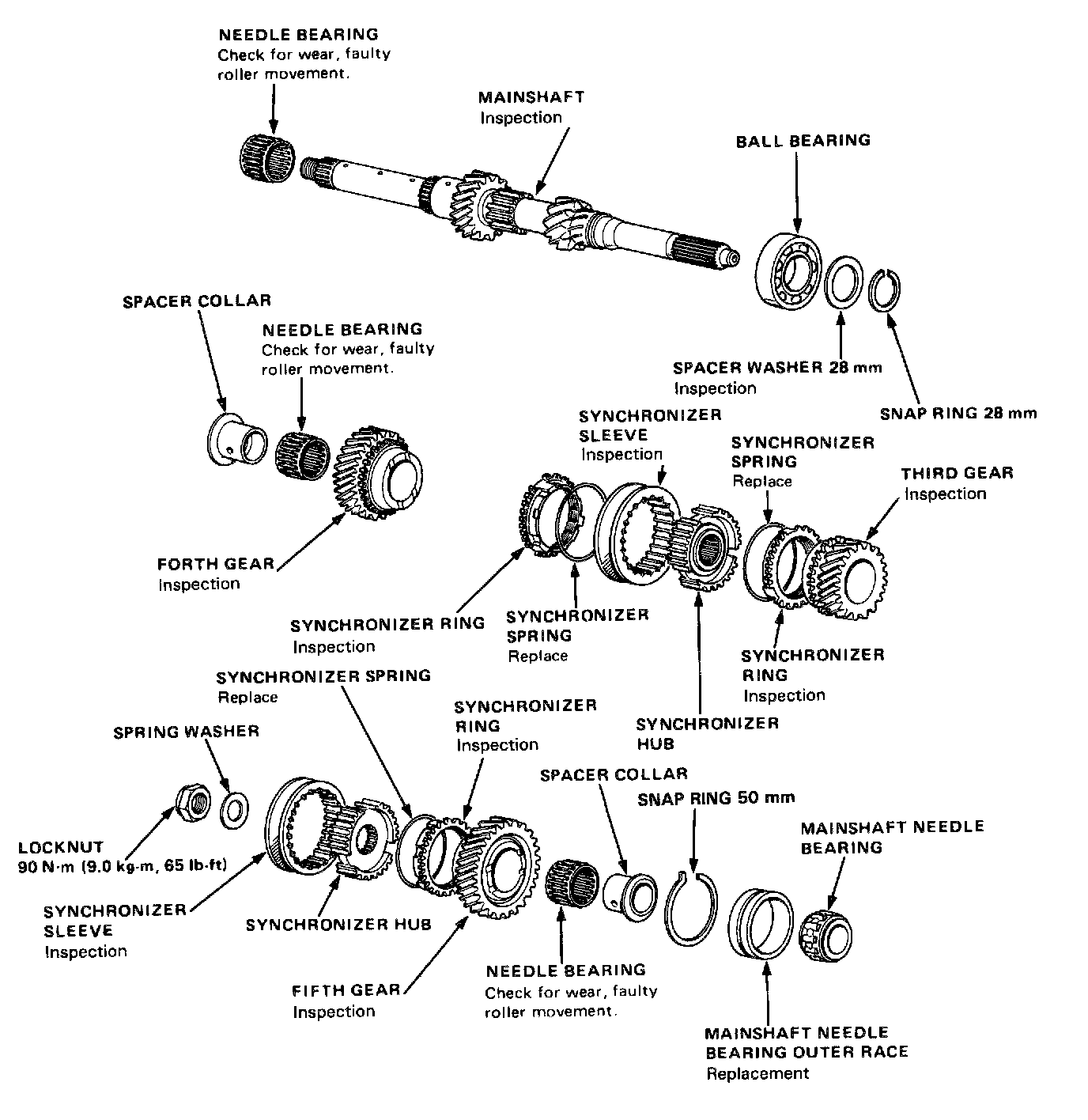

Mainshaft Assembly
NOTE:
-
Clean all parts thoroughly in solvent and dry with compressed air.
-
Third, fourth and fifth gear needle bearings are identical.
Lubricate all parts with oil before reassembly.
