Removal

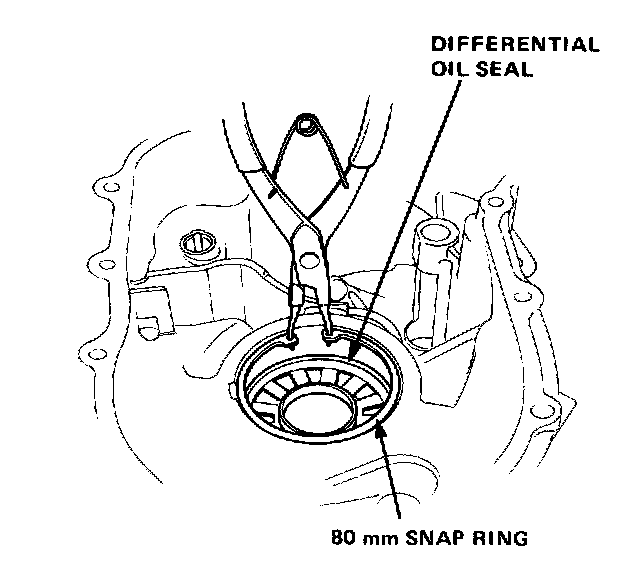

1. If seals are to be replaced, or if differential needs repair, remove differential assembly.
2. Use the special tools shown to drive the differential oil seal out of the clutch housing.




3. Insert the special tool into countershaft bearing.
4. Drive the differential oil seal out of the transmission housing.
