Installation

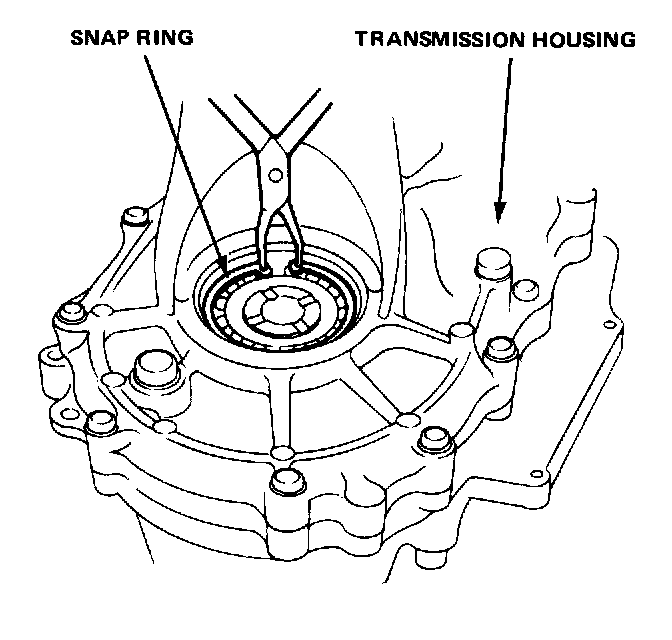

1. Install 80 mm snap ring in transmission housing. If differential bearings or carrier were replaced, select snap ring of correct thickness.

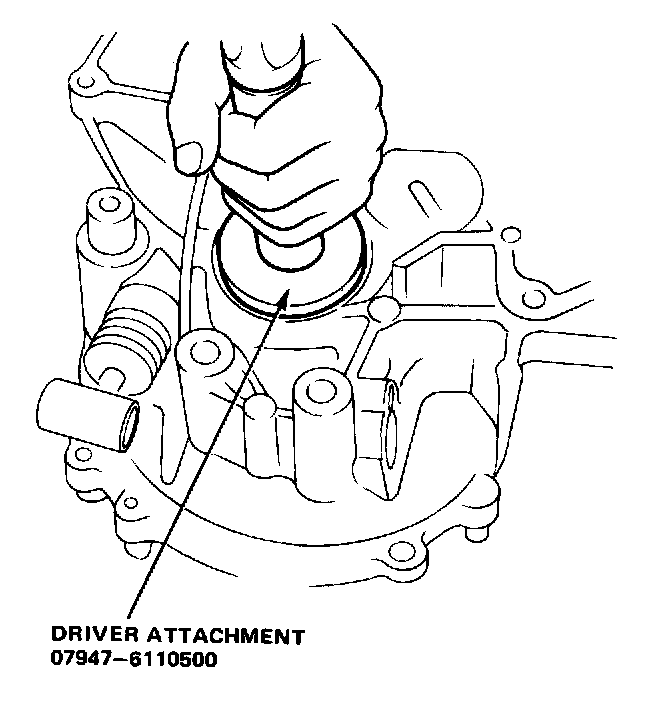

2. Use the special tools shown to drive oil seal into transmission housing with part number side facing away from snap ring.




3. Use the special tools shown to drive differential oil seal into clutch housing with part number side facing away from bearing.
