Evaporative Controls Schematic
Evaporative Controls Schematic

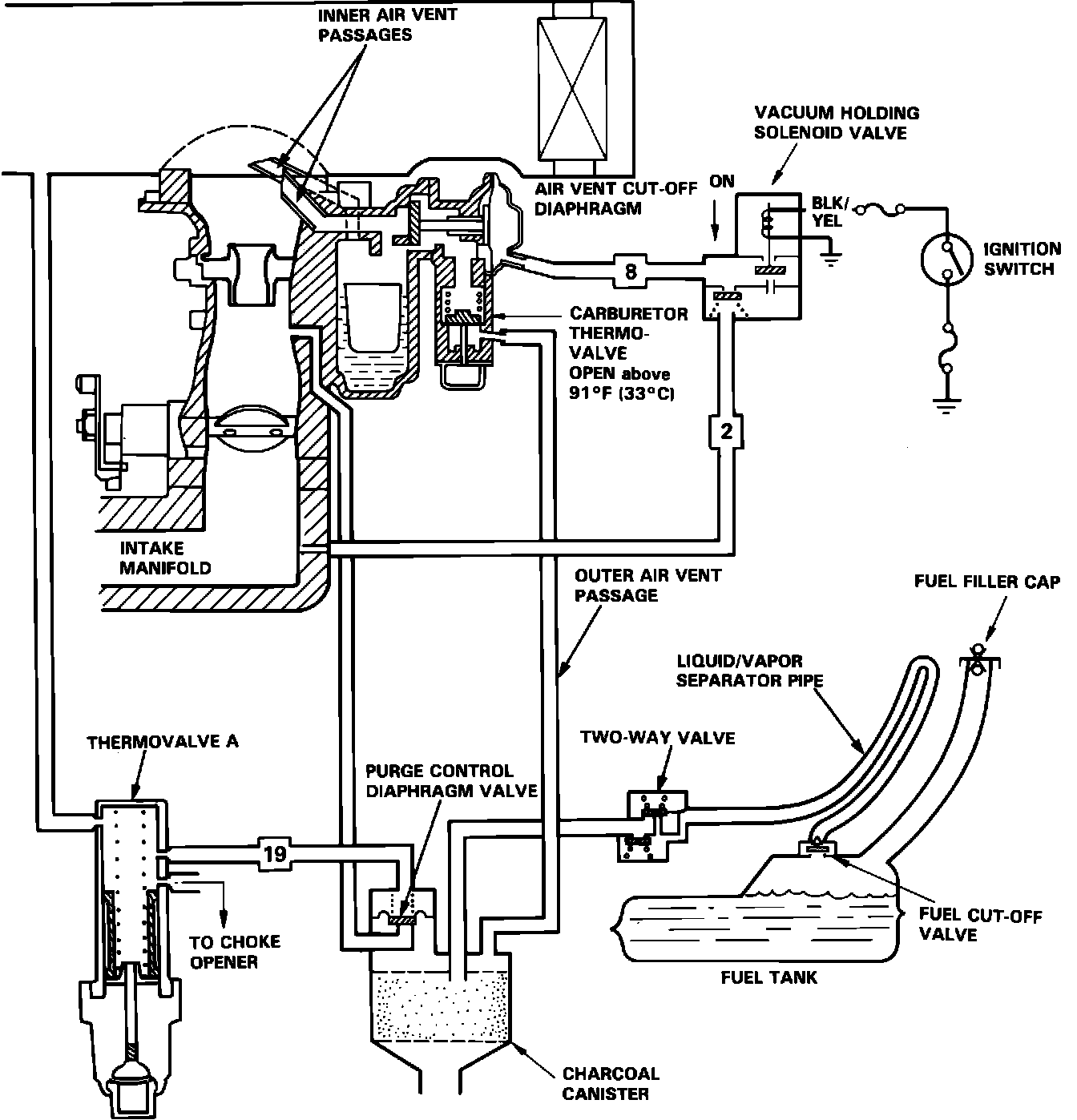

Fig. 69 Evaporative Emission Control Diagram:
