Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1989
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Injection Vacuum Control Solenoid Valve
>>
Testing and Inspection
>>
Air Suction Control Solenoid
Air Suction Control Solenoid

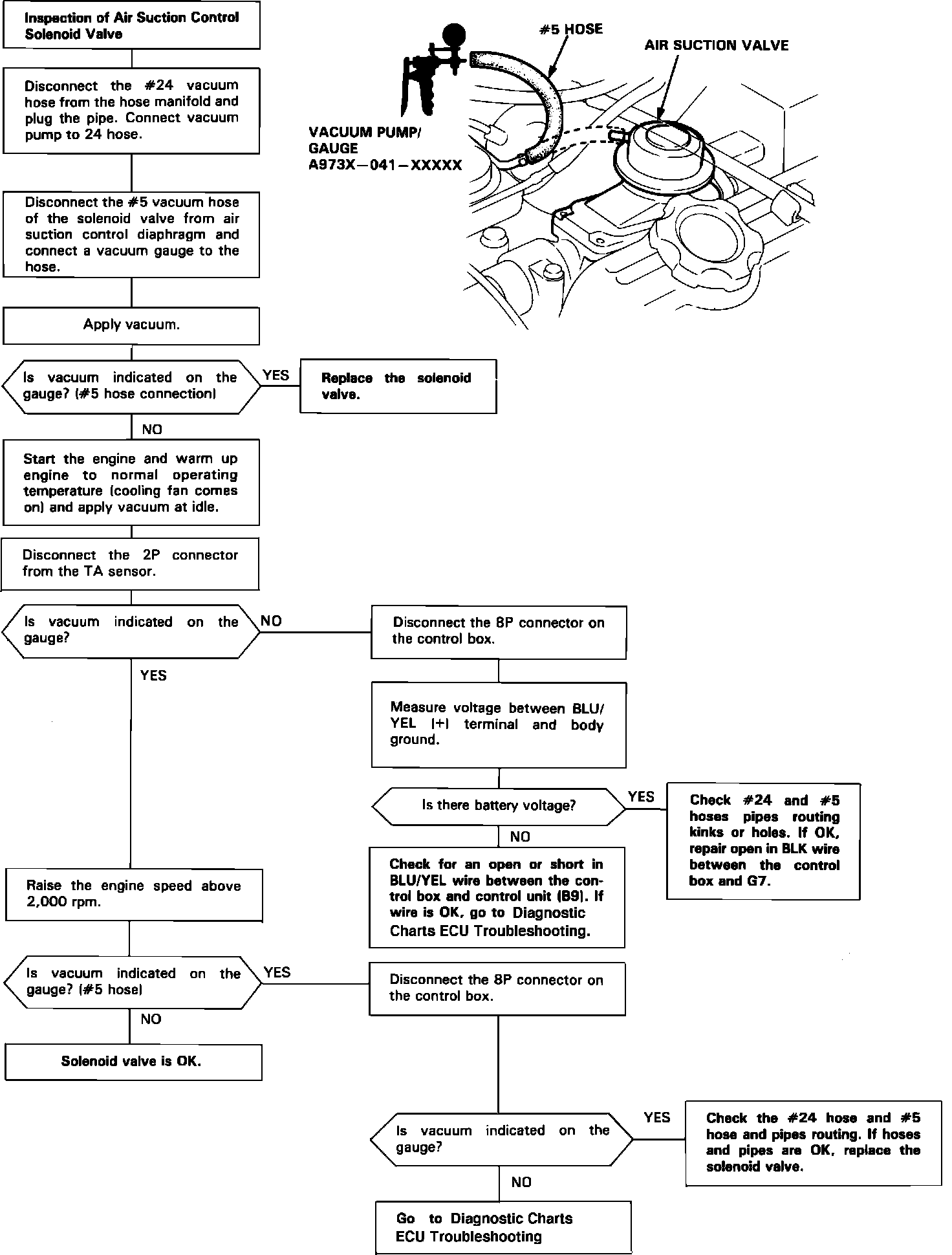

Fig. 78 Air Suction Control Solenoid Valve Testing Procedure:

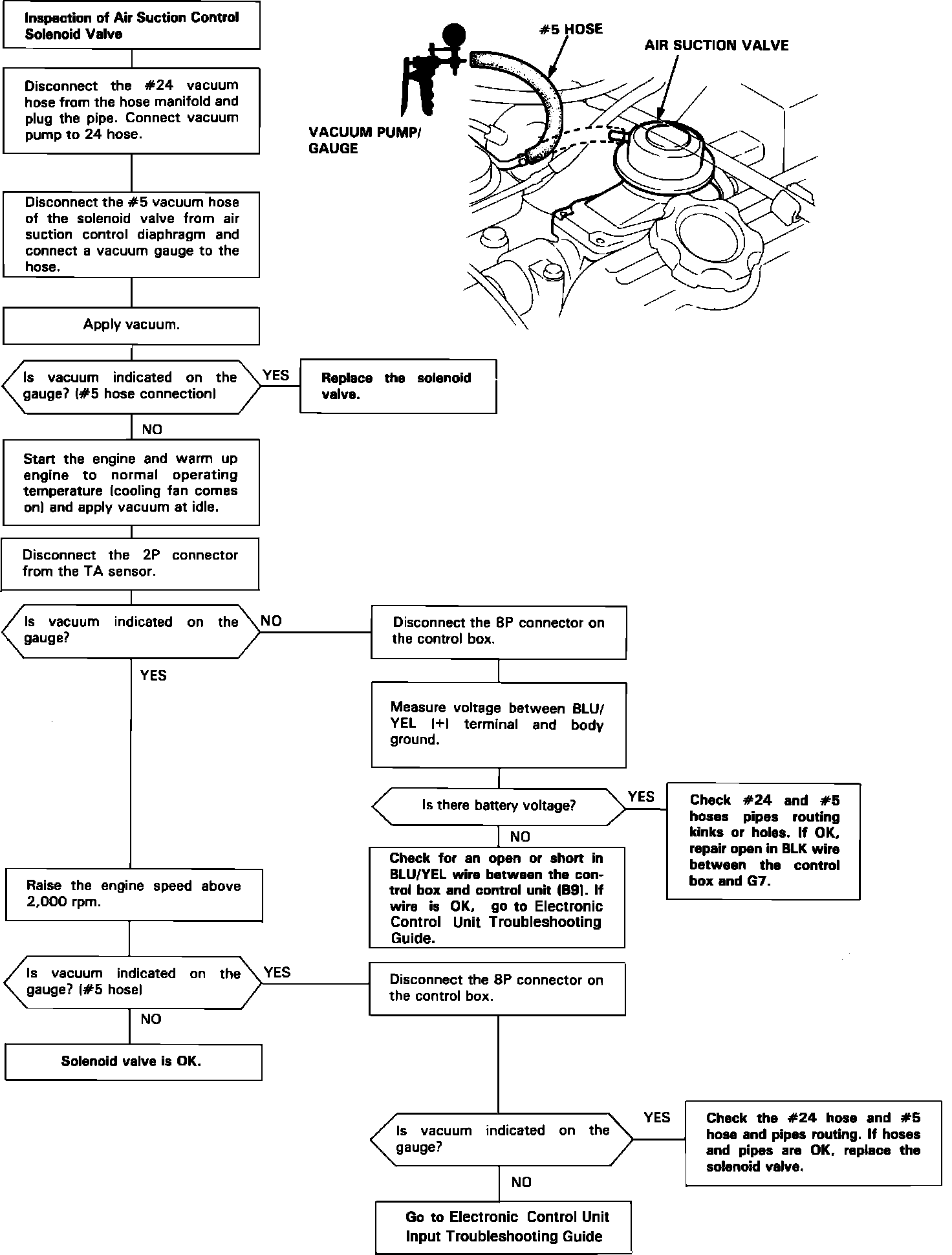

Fig. 85 Air Suction Control Solenoid Valve Testing Procedure:
