Honda
>>
1989
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Manual Transmission
Manual Transmission

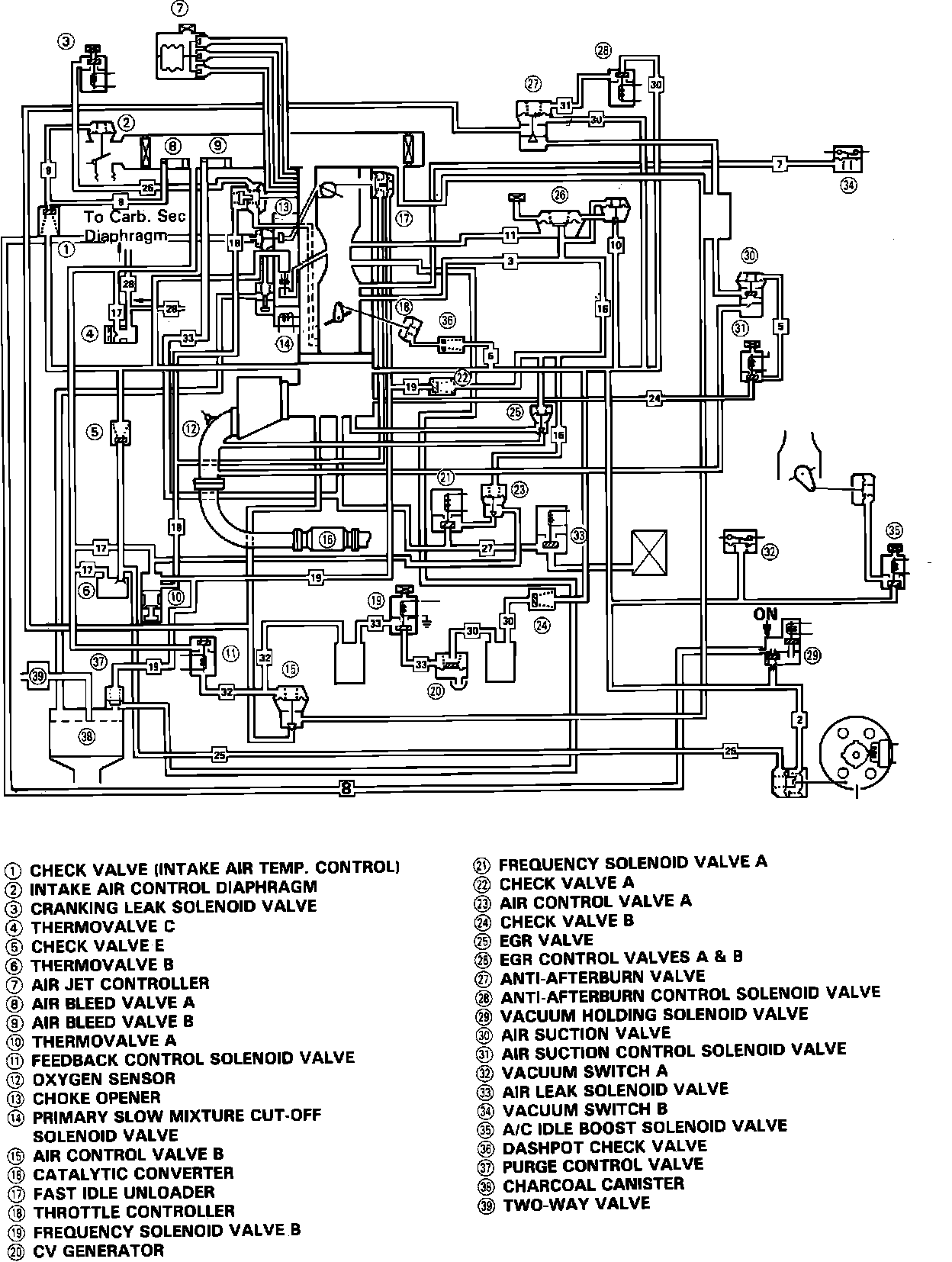

Fig. 11 Complete Engine Vacuum Hose Diagram (Manual Transmission):
