Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Vacuum Switch >> Testing and Inspection >> Vacuum Switch A

Vacuum Switch A

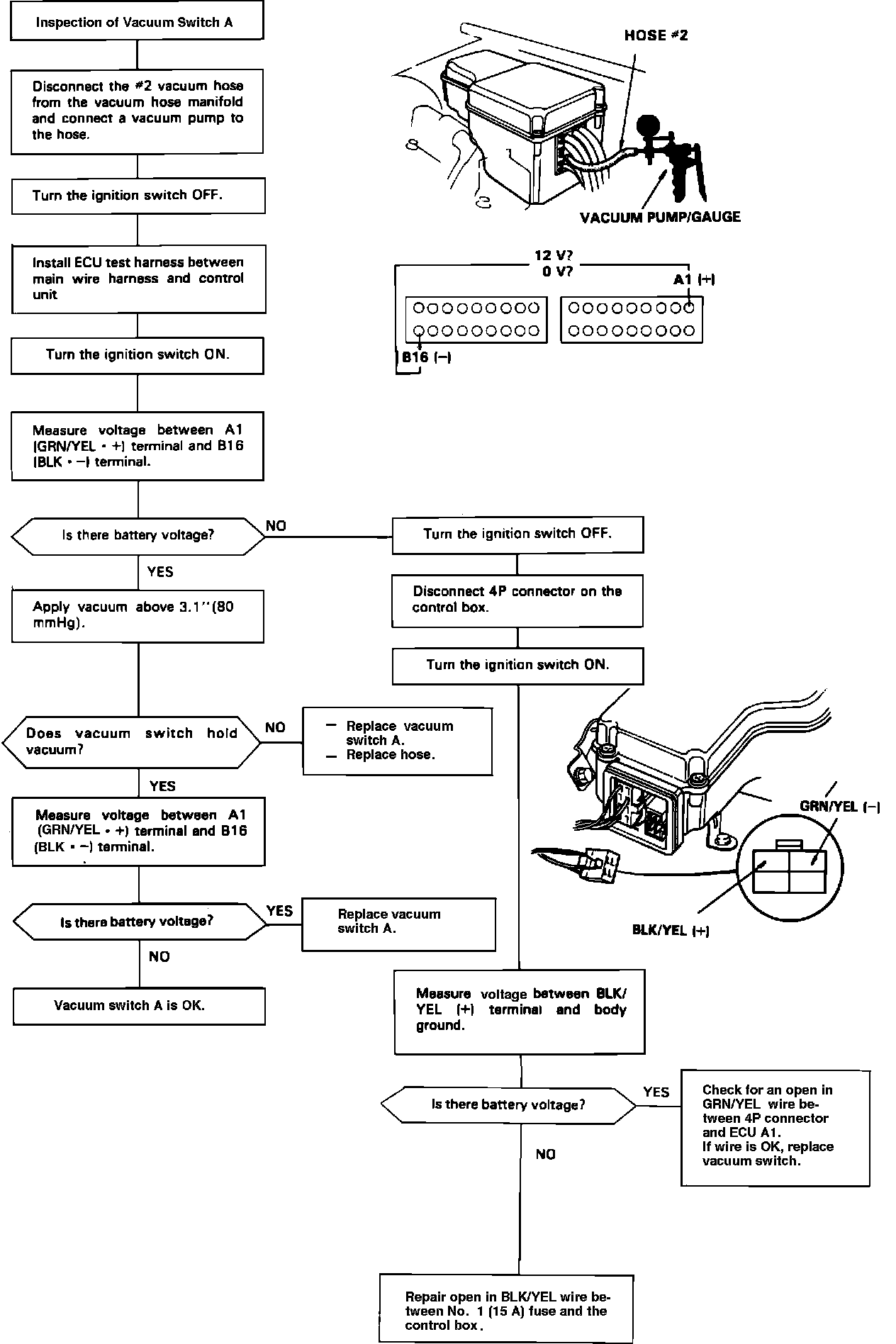

Fig. 26 Vacuum Switch A Test:
