Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Testing and Inspection
>>
Idle Boost Solenoid Valve
Idle Boost Solenoid Valve

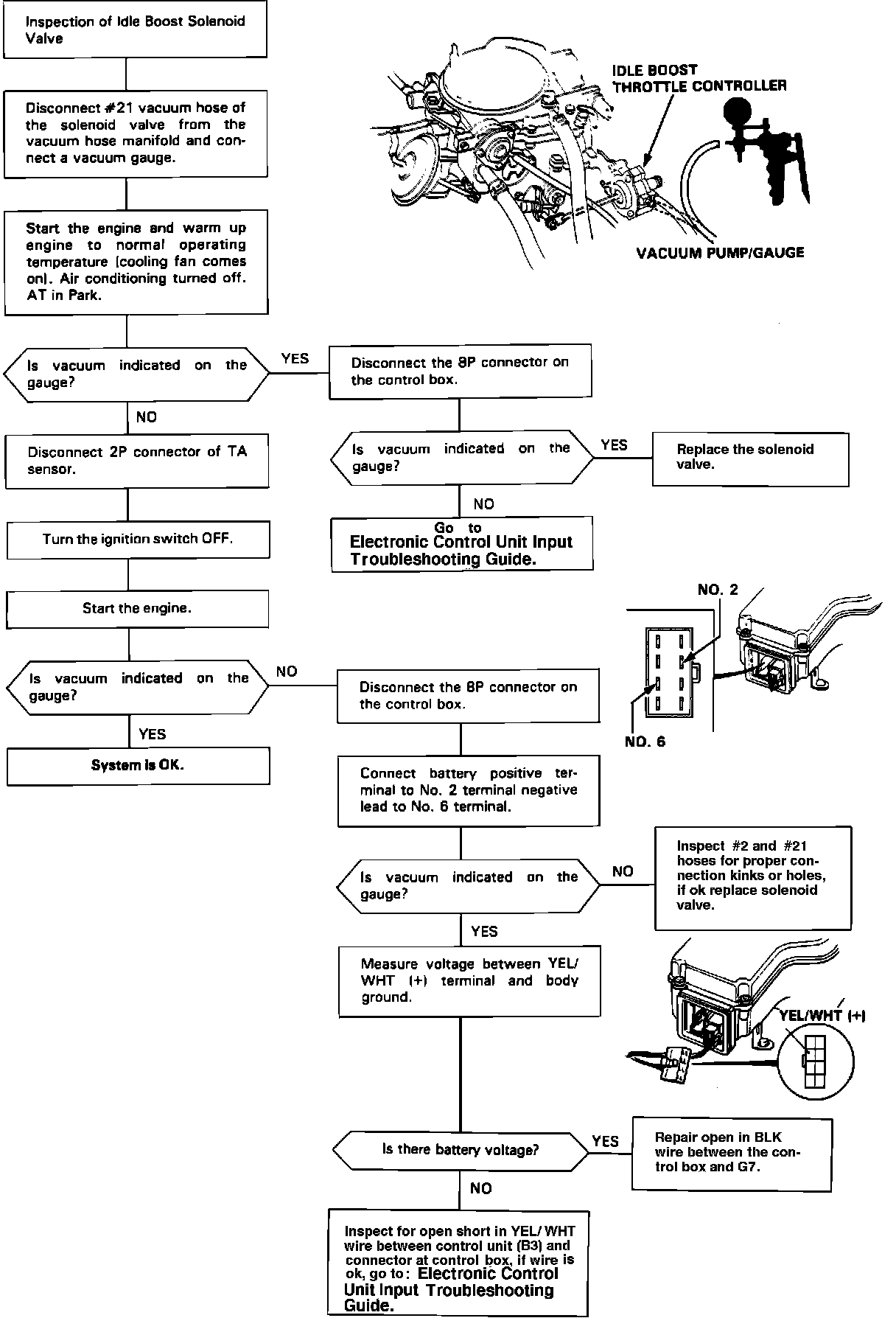

Fig. 13 Idle Boost Solenoid Valve Test:
